Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > 1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna

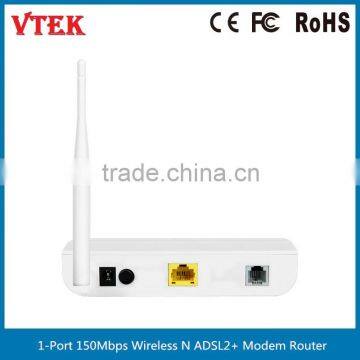

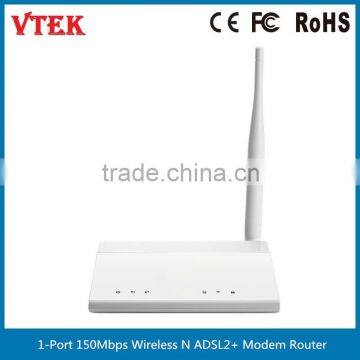

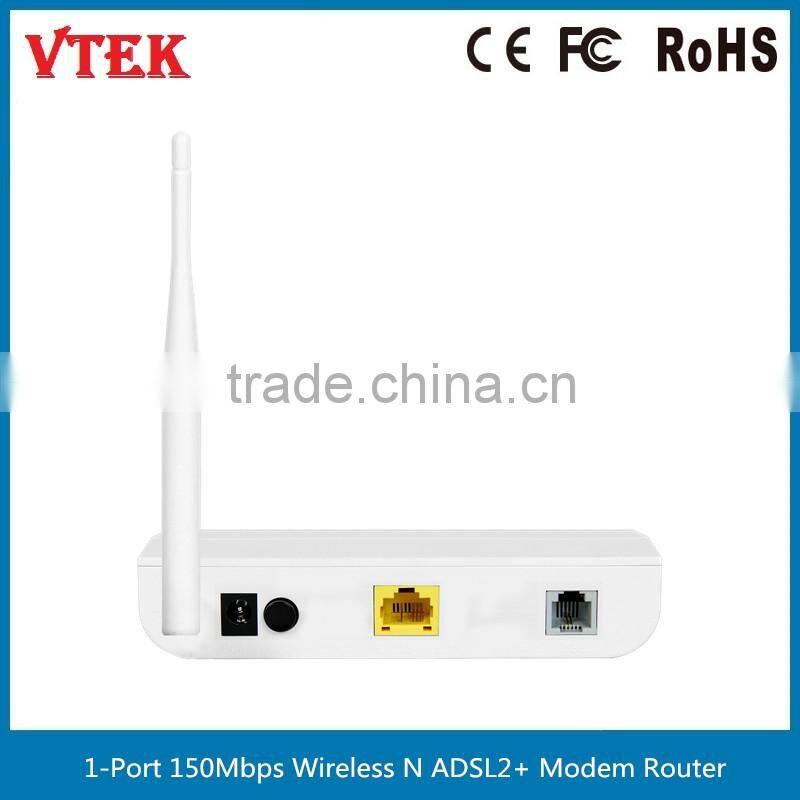

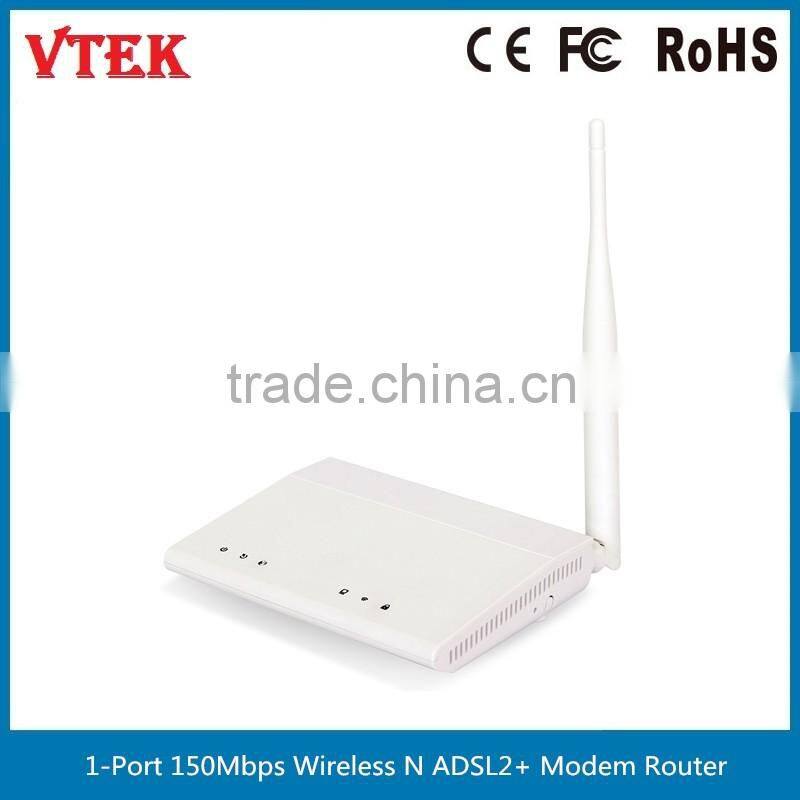

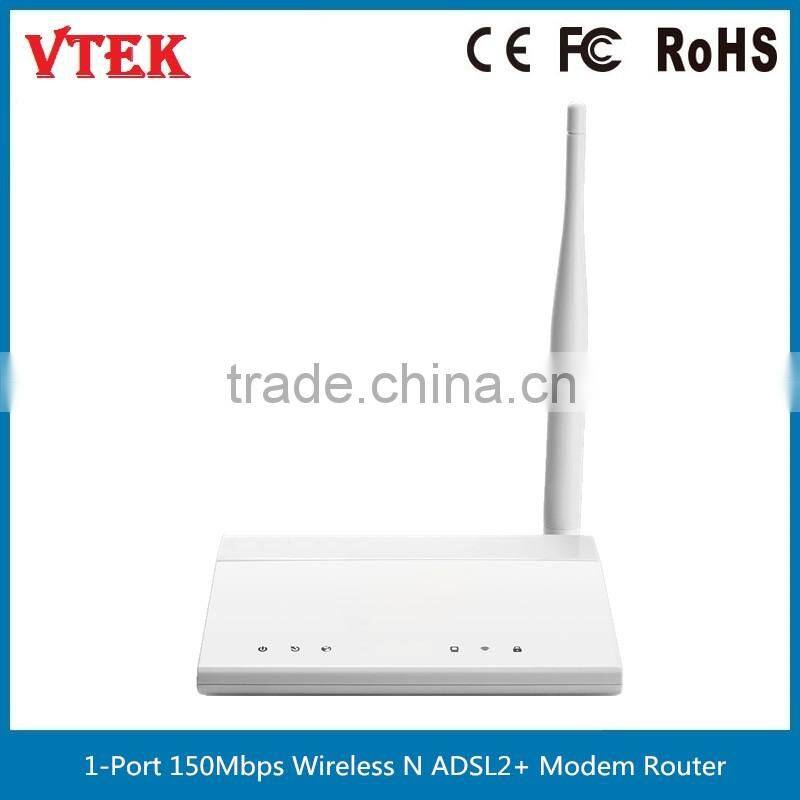

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna

Name: 1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna
Brand: OEM/VTEK
SKU: 107813719
Availability: InStock

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna thumbnail-1

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna thumbnail-2

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna thumbnail-3

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna photo-1

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna photo-2

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router With External Antenna photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM/VTEK

Model Number:

AD-201S

Contact Supplier Request Quote Chat Now

Shenzhen Vtek Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM/VTEK

Model Number AD-201S

1-Port 150Mbps Wireless N ADSL2/2+ Modem Router with External Antenna

Features

u Complies with IEEE 802.11n to provide a wireless data rate of up to 150Mbps

u Provides 1 RJ11 DSL port, 1 RJ45 LAN ports

u Up to 24Mbps downstream speed

u Reach of 6.5Km from your ISP DSLAM

u Supports Build-in PPPoE

u DHCP Server/Client, UPnP, DDNS

u NAT, static routing, and DMZ host

u QoS prioritization based on IP type of service

u Easy Setup Assistant provides quick & hassle free installation

u Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List)

u Supports web management and firmware upgrade

u Supports WPS (Wi-Fi Protected Setup)

u Built-in firewall supporting IP address filtering, MAC address filtering

Description

AD-201S ADSL2/2+ Modem Router is an All-in-One device that combines the functions of a high speed DSL modem and a 1-Port 10/100Mbps NAT wireless router. It is designed to give you a one-stop solution to acquire and share high speed internet access over a wired/wireless network.

By supporting the latest ADSL standards, AD-201S brings with much higher speed than a dial-up connection without tying up the phone line. Now you can enjoy more kinds of bandwidth consuming applications like HD video streaming wirelessly which cannot be accommodated by 11g products, from anywhere in your entire home or even the yard. AD-201S can guarantee the security of data transmission from home to corporate network or between remote branch offices.

Specifications

General
IEEE Standards	IEEE 802.3, 802.3u,802.11n, 802.11g, 802.11b
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1(G.hs)
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
DATA RATES	Downstream: Up to 24Mbps Upstream: Up to 3.5Mbps (with Annex M enabled)
ATM / PPP Protocols	ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) ATM Adaptation Layer Type 5 (AAL5) Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt Bridged and routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225)
Main Features	Bandwidth Control Dynamic Host Conguration Protocol (DHCP), DHCP relay Network Address Translation (NAT) Static Routing, RIP v1/v2 VPN(PPTP, L2TP, IPSec) Pass-through PVC/Ethernet Port Grouping DNS Relay, DDNS IGMP Multicast, IGMP snooping V1/2 Virtual server, DMZ, ACL(Access Control List) UPnP
Management	Web Based Configuration, Remote management, Telnet management, Command Line Interface(CLI), SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
Security	NAT and SPI Firewall MAC / IP / Packet / URL Filtering
Operation Frequency	2.4GHz
Wireless Speed	11N: Up to 150Mbps (dynamic)
Wireless Security	Provides 64/128-bit WEP encryption security, WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
Hardware
Interface	1 x RJ11 DSL Port, 1 x RJ45 LAN Port
LED Indicators	Power,DSL,Internet,WLAN,WPS,LAN
Buttons	Power ON/OFF Button, WPS/WiFi Button, Reset Button
Power Supply	DC 12V 0.5A
Antenna	1 x Fixed Omni-directional Antenna
Dimensions (W × D × H)	132 x 94 x 27mm (5.2 x 3.7 x 1.06in.)
Environment
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Certifications	CE, RoHS
Package Contents
Package Contents	1 x Wireless Modem Router 1 x Resource CD 1 x Quick Installation Guide 1 x Power Adapter 1 x Ethernet Cable 2 x Telephone Line 1 x ADSL Splitter
