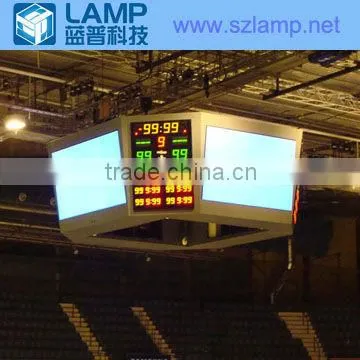

LED message diaplay sign
Product Features:
1, High brightness and be adjustable. Built-in functional card support brightness automatically adjustment.
2, Using virtual pixel, with a better viewing effect for video and graphics.
3, a turn-key solution including professional sports software and hardware.
4, rich stadium LED display engineering experience both in domestic and oversea market.
5, Unbeatable product stability through strict Quality Control System.
Product Specification:
| Pixel Pitch: | 10 mm | 12 mm |
| Pixel Density: | 10000 pixels/sqm | 6944 pixels/sqm |
| Pixel Configuration: | SMD 3 in 1 | SMD 3 in 1 |
| Module Dimension: | 160*160 mm | 192*192 mm |
| Module Resolution: | 16*16 pixels | 16*16 pixels |
| Cabinets Dimension: | 800*640 mm | 768*768 mm |
| Cabinets Resolution: | 80*64 pixels | 64*64 pixels |
| Brightness: | 5000 cd/sqm | 6000 cd/sqm |
| Best Viewing Distance: | > 10m | > 12m |
| Average Consumption: | 344 W/sqm | 478 W/sqm |
| Max Consumption: | 860 W/sqm | 1194 W/sqm |
| Viewing Angle: | Horizontal angle: 140 degree Vertical angle: 140 degree | |
| Processing: | 12 bit | |
| Ingress Protection: | Front IP65; Rear IP54 | |
| Refresh Rate: | 600 ~ 4800Hz | |
| LED lifetime: | 100,000 hours | |
| Input Voltage: | 90 ~ 260VAC,50/60Hz | |
| Operation Humidity: | 10% ~ 99% | |
System Diagram

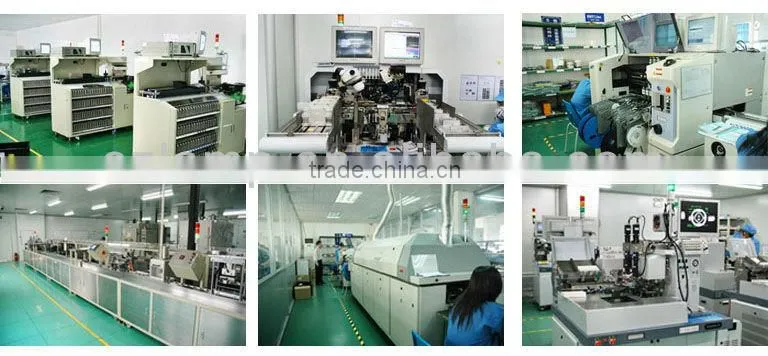

Workshop
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
