Description

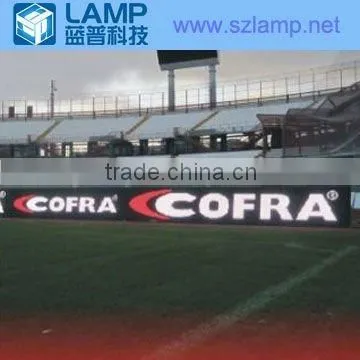

P12 outdoor perimeter LED display is specially designed for the sports.
This ultra-thin perimeterLED display is optimized for advertising and broadcasting.
Inimitable soft rubber cover is used for protecting both players and led screens.
Easy for installation and dismantle.
Specification
| Visual Parameter | |
| Pixel Pitch: | 12mm |
| Pixel Density: | 6,944 pixels/sqm |
| Pixel Configuration: | SMD5050 |

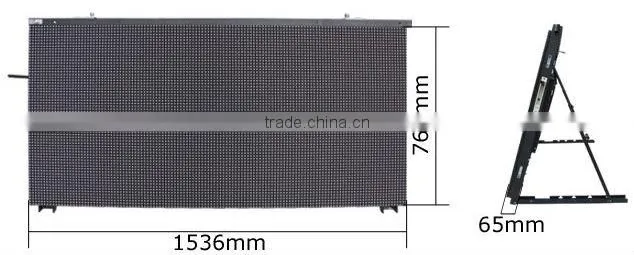

| Cabinets Dimension: | 1536*768*65 mm |
| Cabinets Resolution: | 128*64 pixels |
| Material: | Aluminum |
| Performance Parameter | |
| Brightness: | 6,000 cd/sqm |
| Best Viewing Distance: | >12m |
| Max Consumption: | 700 W/cabinet |
| Weight: | 40 kg/cabinet |
| Viewing Angle: | Horizontal angle: 140 degree Vertical angle: 140 degree |
| Gray Scale Level: | 16 bit |
| Refresh Rate: | 1,560Hz |
| Scan Mode: | 1/2 scanning |
| Max Rigging Load: | 12 cabinets |
| LED Lifetime: | 50,000 hours |
| Environment Parameter | |
| Temperature Range: | -20~60°C |
| Input Voltage: | 100~240V AC |
| Operation Humidity: | 10%~99% |
| Ingress Protection: | Front IP65;Rear IP54 |
| Control Parameter | |
| Control System: | NOVASTAR |
| Control Distance: | 100m via CAT05/Maximum 10km via Fiber Optic (Single mode) |
| Signal: | DVI up to UXGA, SDI, HD-SDI, S-video, compositem, YUV |
Cabinet:
Certifications:
After-sale service
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
