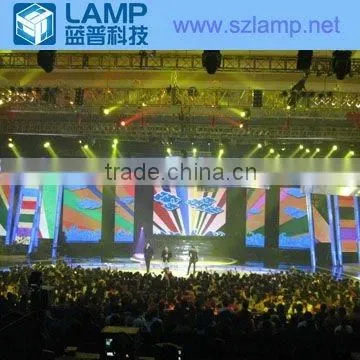

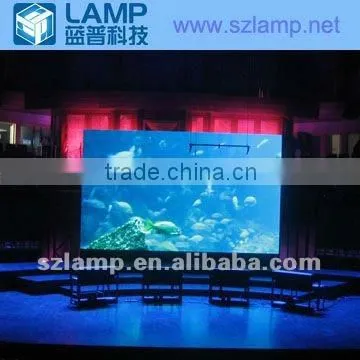

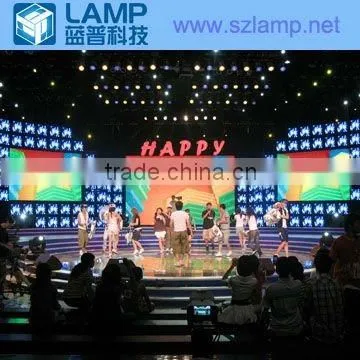

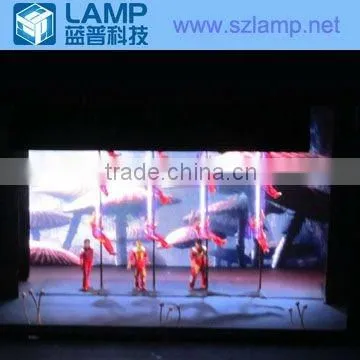

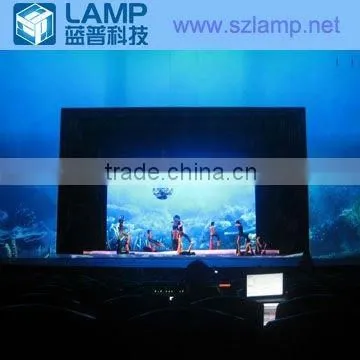

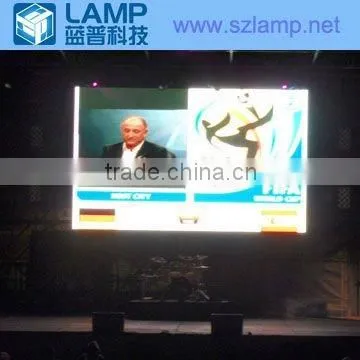

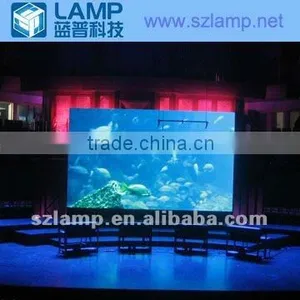

P16 P20 Full Color Outdoor DIP Led Screen for Concert Touring

Name: P16 P20 Full Color Outdoor DIP Led Screen for Concert Touring
Brand: LAMP
SKU: 107759231
Availability: InStock

US$ 1 - 8,000 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LAMP

Usage:

Outdoor

Shenzhen Lamp Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LAMP

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 16mm, 20mm

dip led screen

More advantages of our product as below:

1. Super light cabinets

A lighter aluminium cabinet makes it ideal for setup and teardown as well as transportations.

2. Easy rigging system

Each cabinet contains a strong rigging system to enable easy rigging and adjustments. Unique

latching device can keep all display panels on same horizontal line, it also keep the panel as a whole

without any aperture.

3. Standard industry components

We use industry standard power and data connectors from Neutrik to ensure the system reliability

and reduce the replacement cost.

4. State-of-art video processing and broadcasting standard

Provide 14bit image processing of colors resulting in a crystal clear picture with true-to-life color

reproduction; meet industry top quality requirement, high refresh rate, super image quality,

color uniformity and high contrast ratio.

Specification

Pixel Pitch:	16 mm	20 mm
Pixel Density:	3906 pixels/sqm	2500 pixels/sqm
Pixel Configuration:	1R1G1B	1R1G1B
Module Dimension:	256*128 mm	320*160 mm
Module Resolution:	16*8 pixels	16*8 pixels
Cabinets Dimension:	1024*768 mm	1280*960 mm
Cabinets Resolution:	64*48 pixels	64*48 pixels
Brightness:	7500 cd/sqm	6000 cd/sqm
Best Viewing Distance:	> 16m	> 20m
Average Consumption:	450 W/sqm	320W/sqm
Max Consumption:	900 W/sqm	800 W/sqm
Viewing Angle:	Horizontal angle: 120 degree; Vertical angle: 60 degree
Processing:	12 bit
Ingress Protection:	Front IP65; Rear IP54
Refresh Rate:	300 to 4800Hz
LED lifetime:	100,000 hours
Input Voltage:	90 to 260VAC, 50/60Hz
Operation Humidity:	10% to 99%
