Eps and Rockwool Sandwich Panel Machine(LS-F5)

Eps and Rockwool Sandwich Panel Machine(LS-F5) thumbnail-1
Eps and Rockwool Sandwich Panel Machine(LS-F5) thumbnail-2
Eps and Rockwool Sandwich Panel Machine(LS-F5) thumbnail-3
Eps and Rockwool Sandwich Panel Machine(LS-F5) photo-1
Eps and Rockwool Sandwich Panel Machine(LS-F5) photo-2
Eps and Rockwool Sandwich Panel Machine(LS-F5) photo-3
US$ 49,800 - 88,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Contact Supplier Request Quote Chat Now
Yingkou Longshun Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze Steel
Use Roof
Production Capacity 6m/min
Place of Origin Liaoning, China
Brand Name Yingkou Longshun
Model Number LS-F5
Power(W) 32kw
Voltage 380V 50Hz 3 phases or as u need
Dimension(L*W*H) 48000mm*2700mm*4500mm
Weight 31T
Certification BV
Warranty 24 months
After-sales Service Provided Engineers available to service machinery overseas

 </h2>
Eps and Rockwool sandwich panel Machine(LS-F5)  </h2>


Product Description



Eps and Rockwool sandwich panel Machine(LS-F5)

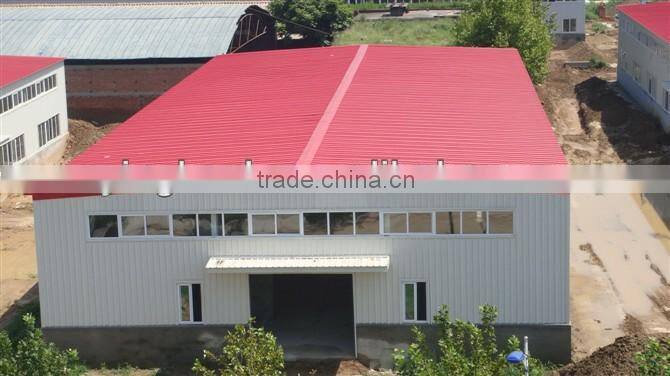

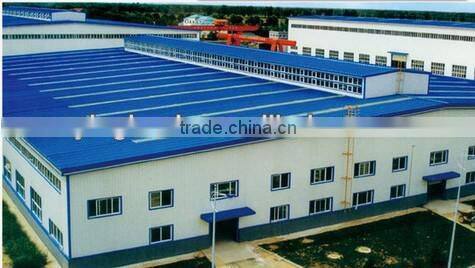

       Sandwich panel production line is used to produce new building materials with stable, light,

solid features and good-looking appearance. Using sandwich panel, it is convennient and

fast to construct large scale houses like supermarkets, workshops, warehouses.

They also can be used to construct  freezing houses, purifying houses and air-conditioning houses, etc





Eps and Rockwool sandwich panel Machine(LS-F5)



Machine Output and features



H panel,tongued& grooved panel



Corrugated panel with various joints



EPS or rock wool&glass wool panel



Joint-hidden panel with various joint and plate



Special type of panels required by customer



Continuous automatic production



Variable options for customer



Convennient operation with PLC touchscreen



Automatic length cutting and counting



Ready made asistant facilities



                                Eps and Rockwool sandwich panel Machine(LS-F5)



                                                                         De-coiler

                                                                         Roll-forming device

                                                                         Composite system

                                                                         PLC controling system

                                                                         Cutting device

                                                                         Finished bracket



                            Eps and Rockwool sandwich panel Machine(LS-F5)





                                    Joint cap forming machine       1 set

                                    Slitter                                          1 set

                                    C-channel forming machine      1 set

                                    Eps grooving machine               1 set

                                    Cutter                                          1 set

                                    Lift hook                                      1 set

                                    Decolier                                      1 set

                                    Bracket                                      2 pcs



                                 Eps and Rockwool sandwich panel Machine(LS-F5)

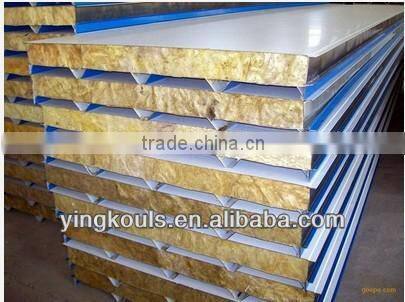

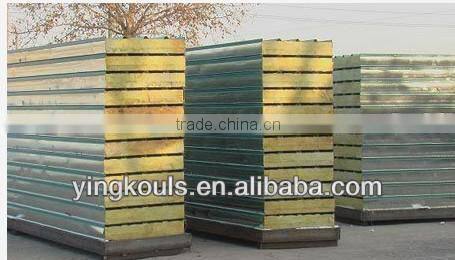

Panel with rock wool core.



Eps and Rockwool sandwich panel Machine(LS-F5)Eps and Rockwool sandwich panel Machine(LS-F5)

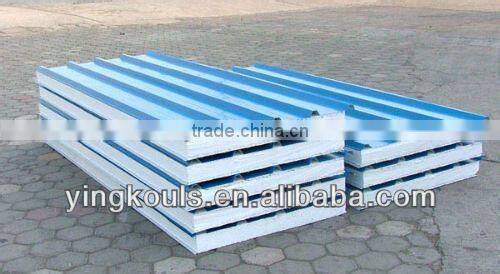

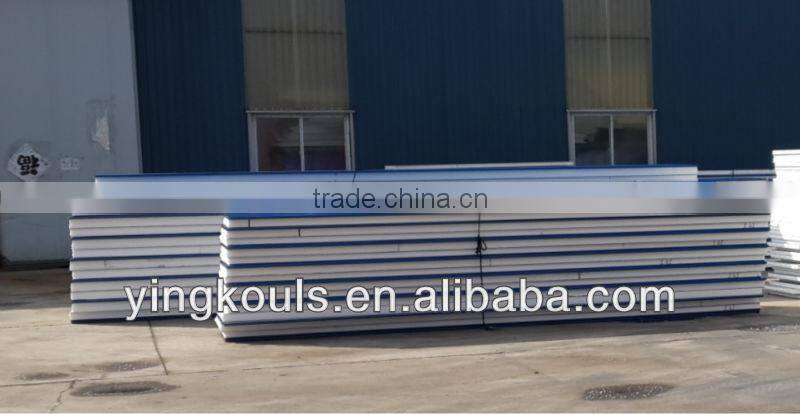

EPS panel



Eps and Rockwool sandwich panel Machine(LS-F5)Eps and Rockwool sandwich panel Machine(LS-F5)





Eps and Rockwool sandwich panel Machine(LS-F5)Eps and Rockwool sandwich panel Machine(LS-F5)





Technical Parameters





Installation dimensions:           48000mm*2700mm*4500mm



Operation voltage:                  380V 50Hz,3 phases



Total power consumption:      32kw



Total Weight:                           31 tons



Forming part:



Size:                                        9200mm*1400mm*1300mm



Frame:                                    360 I Beam



Step of Rollers:                      27 steps



Roller material:                      40Cr



Material of Shaft :                  high grade No.45 steel







Composite Part:



Sizes:                                      8000mm*2300*3200mm



Step of Rubber roller:            28 steps



Thickness of rubber roller:    1 inch



Two way moving shaft:          9 steps



Working speed:                     0-4.5m/min



Steel Material thickness:      0.3-0.8mm



Core thickness:                     50-150mm



Core material:                       EPS,rock wool and glass wool



Control system:                     PLC with touchscreen,Convertor



Shipment:                             40"*4 containers
