EPS/rock wool/glass wool panel Sandwich Machine

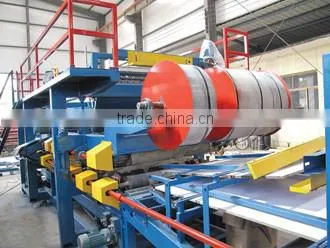

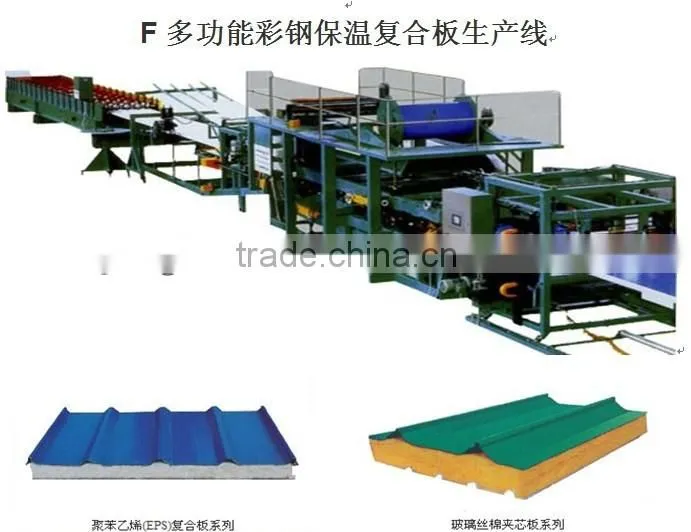

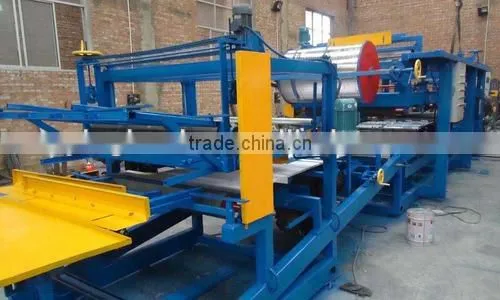

Sandwich Panel Production Line

Sandwich panel production line is used to produce new building materials with stable, light, solid features and goodlooking

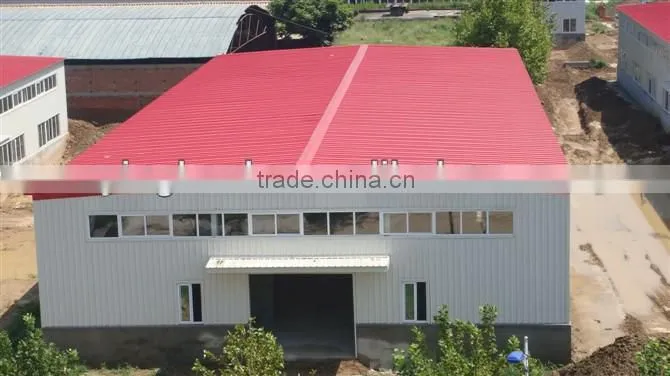

appearance. Using sandwich panel, it is convenient and fast to construct large scale houses like supermarkets,

workshops, warehouses.They also can be used to construct  freezing houses, purifying houses and air-conditioning houses, etc

Specification

Installation dimensions:48000mm*2700mm*4500mm

Operation voltage:380V 50Hz,3 phases

Total power consumption:32kw

Total Weight:31 tons

Forming part:

Size:9200mm*1400mm*1300mm

Frame:360 I Beam

Step of Rollers:27 steps

Roller material: 40Cr

Material of Shaft : high grade No.45 steel

Roller diameter:80mm

Composite Part:

Sizes:8000mm*2300*3200mm

Step of Rubber roller:28 steps

Thickness of rubber roller:1 inch

Two way moving shaft:9 steps

Working speed:0-4.5m/min

Steel Material thickness:0.3-0.8mm

Core thickness:50-300mm

Core material:EPS,rock wool and glass wool

Control system: PLC with touchscreen,Convertor

Shipment: 40 HQ*2 containers

Panel with Glass fiber wool core.

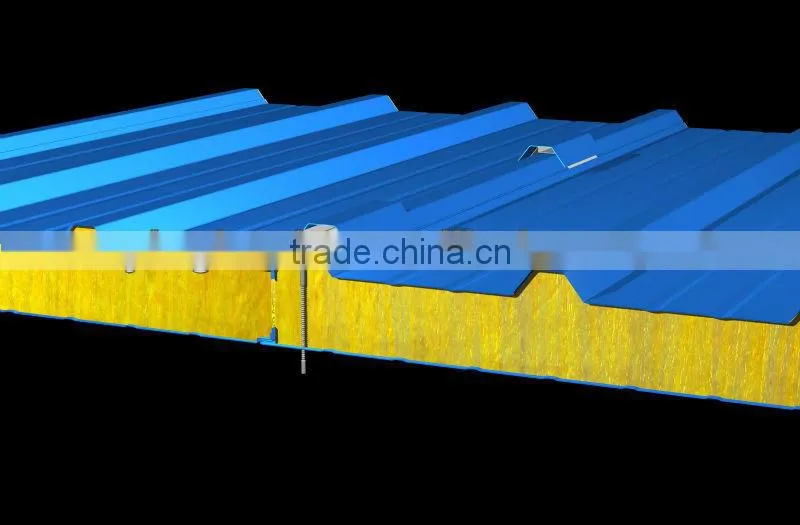

Panel with rock wool core.

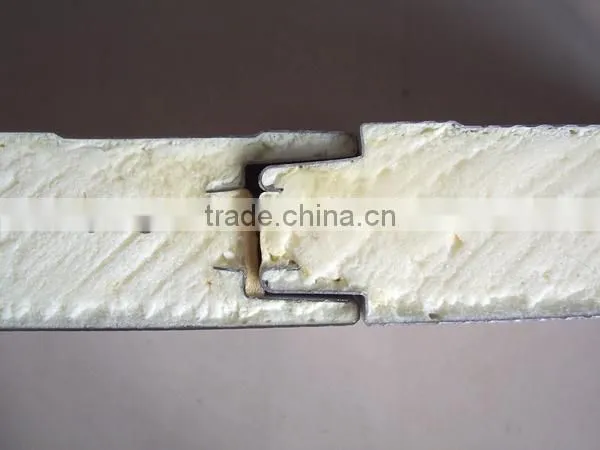

EPS panel
