Brand New PLC Control-system Composite Panel Production Line </h2>
Brief Introduction
Yingkou Longshun Machinery Manufacturing Co., Ltd. is an enterprise professionally engaged in research,design,construction and installation.Our company takes producing color steel forming equipment series as the central task.The main production contain arch sheet machine,composite sandwich plate machine,purlin machine,flat sheet machine,and guard rali forming machine.
Specification
Installation dimensions:48000mm*2700mm*4500mm
Operation voltage:380V 50Hz,3 phases or as u need
Total power consumption:32kw
Total Weight:31 tons

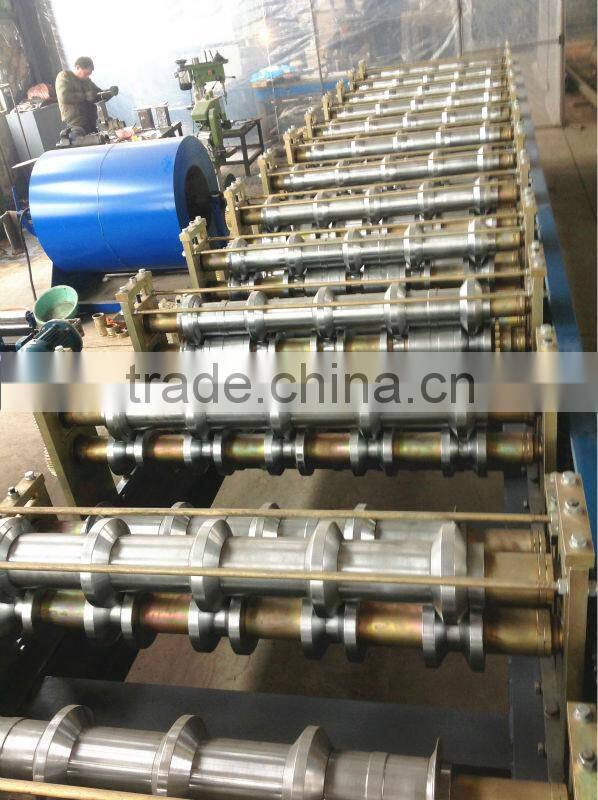

Forming part:
Size:9200mm*1400mm*1300mm
Frame:360 I Beam
Step of Rollers:27 steps
Roller material: 40Cr
Material of Shaft : high grade No.45 steel
Composite Part:
Sizes:8000mm*2300*3200mm
Step of Rubber roller:28 steps
Thickness of rubber roller:1 inch
Two way moving shaft:9 steps
Working speed:0-4.5m/min
Steel Material thickness:0.3-0.8mm
Core thickness:50-250mm
Core material:EPS,rock wool and glass wool

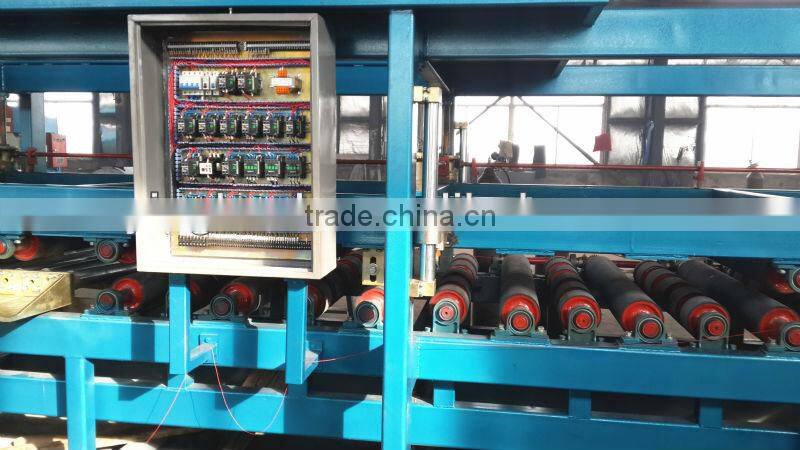

Control system: PLC with touchscreen,Convertor
Shipment: 40 GP*4 containers
Assistant equipment with machine
Slitter 1 set
C-channel forming machine 1 set
Cutter 1 set
Lift hook 1 set
Decolier 1 set
Bracket 2 pcs

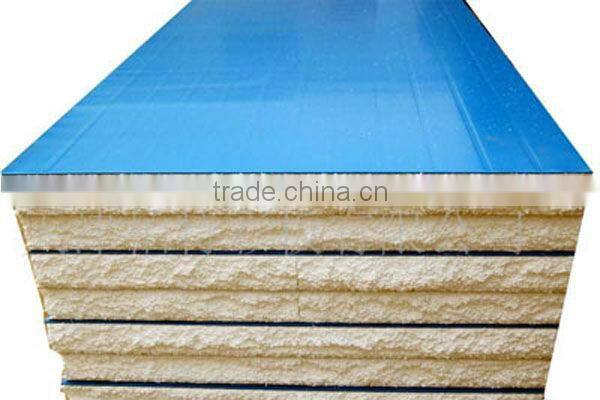

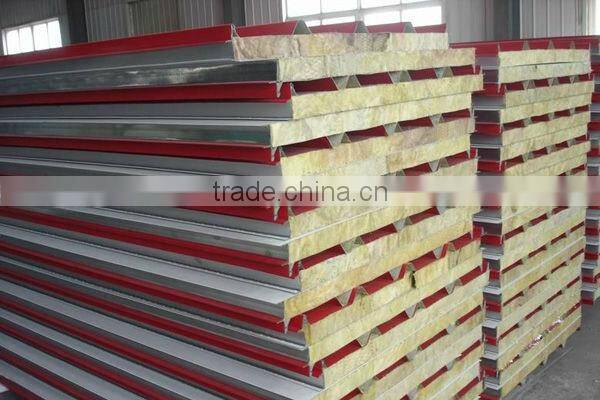

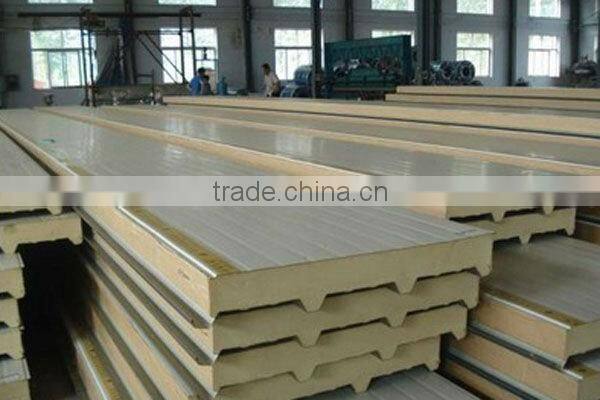

Composite Panel
More details
Payment |
30% T/T In Advance and balance done before loading |
Packaging |
standard seaworthy packing |
Delivery |
within 25 days |
Guarantee |
18 months free service/ pay service all the machine life |
Installation and training |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. to you and teach you how to install and operate. please arrange board, lodging and other necessary things |
For more details, just no hesitate to contact with me.
No matter when and where, i am here waiting for you.
Skype: lsmachine04
Tel: +86 417 6659588
M.B. :+86 183 4177 4967
Contact:Joanna
