Specifications
Composite sandwich Plate adjustable forming machinequality
2.high technology
3.reasonable price
4.easy operating

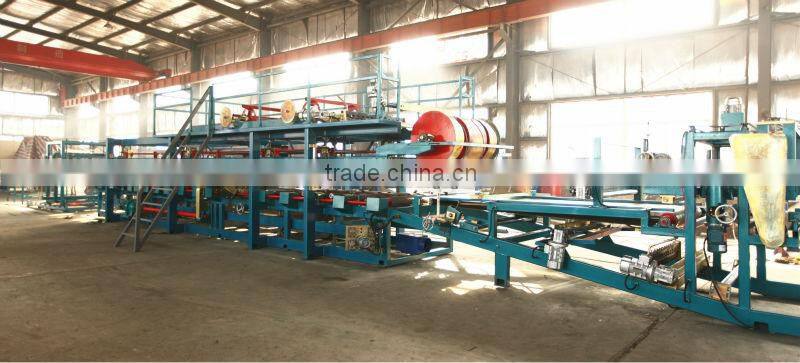

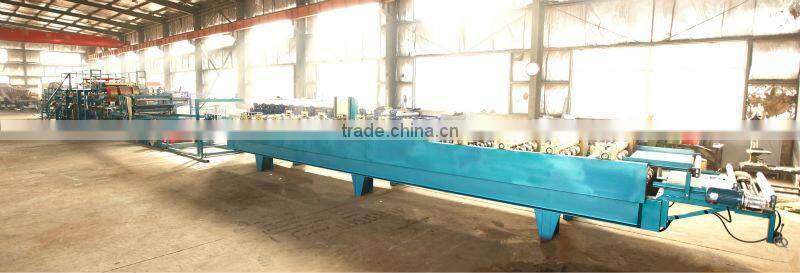

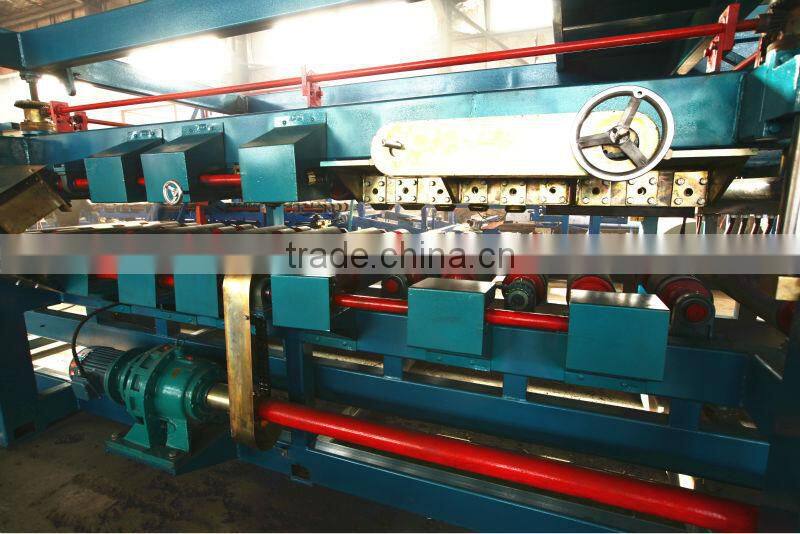

Hight quality adjustable Composite sandwich Plate Cold Roll Forming Machine
Automatic Composite Roofing Sheet making machine
Brief introduction about our company
Yingkou Longshun Machinery Manufacturing Co., Ltd. is an enterprise professionally engaged in research,design,construction and installation.Our company takes producing color steel forming equipment series as the central task.The main production contain arch sheet machine,composite sandwich plate machine,purlin machine,flat sheet machine,and guardrail roll forming machine.
Specifications
Overall dimensions:48000mm*4500mm*2700mm
Operation voltage:380V
Total power consumption:32kw
Weight:21 tons
Working speed:0-4.5m/min
Material thickness:0.3-0.8mm
Core thickness:20-300mm
Core material:EPS,rock wool and glass wool
Control system: PLC with touchscreen,Convertor
Machine Output and features

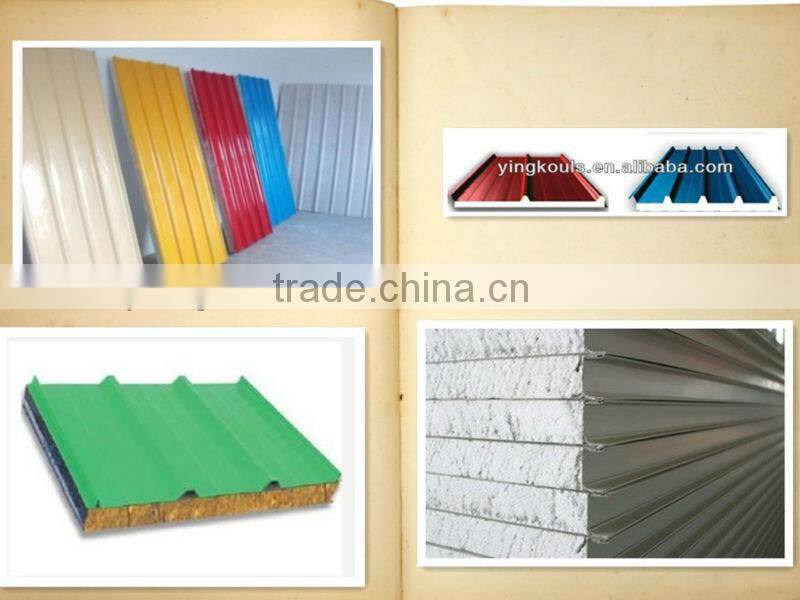

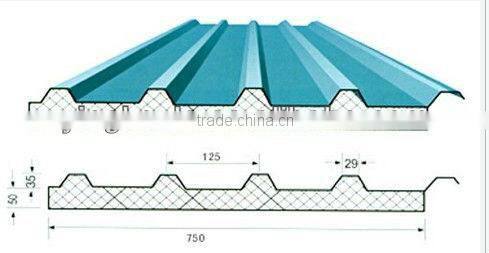

H panel,tongued& grooved panel
Corrugated panel with various joints

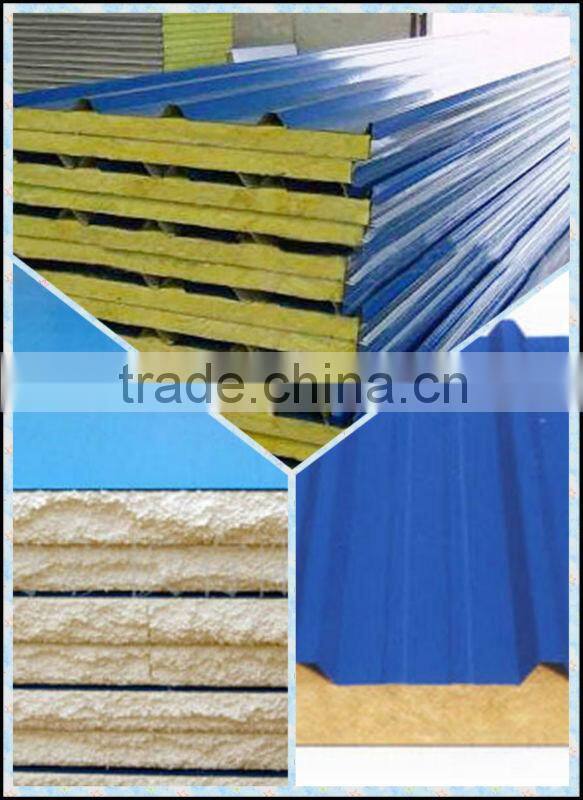

EPS or rock wool&glass wool panel
Joint-hidden panel with various joint and plate
Special type of panels required by customer
Continuous automatic production
Variable options for customer
Convenient operation with PLC touchscreen
Automatic length cutting and counting
Ready made assistant facilities
Payment Term and condition
* Payment Term: 30 T/T in advance, 70% T/T before delivery
* Delivery Time: Within 20 Days after receipt of the down payment
* Warranty: 1 year and life-long maintain
*Installation and debugging: We will send professional engineer to make installation and debugging,
Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5 days
* Transporting: 1x40ft container
