2014 New sandwich panel machine (High Quality&Low Price)

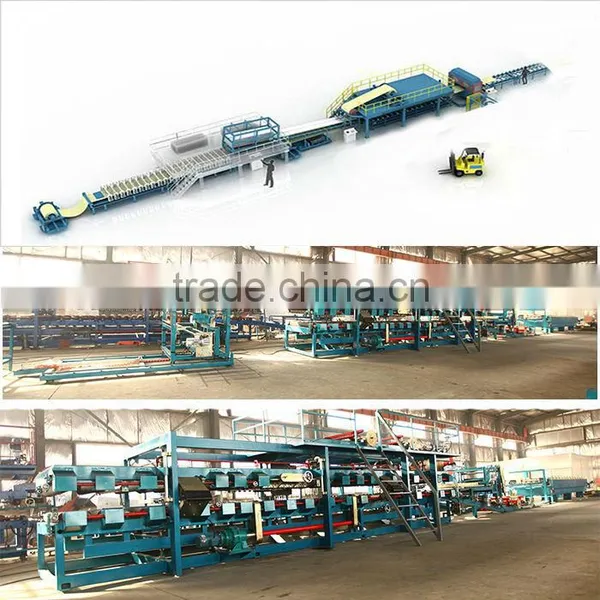

Introduction Sandwich panel production line is used to produce new building materials with stable, light, solid features and good-looking appearance. Using sandwich panel, it is convenient and fast to construct large scale houses like supermarkets, workshops, warehouses.They also can be used to construct freezing houses, purifying houses and air-conditioning houses, etc
Specifications
Installation dimensions:48000mm*4500mm*2700mm
Operation voltage:380V,50Hz,3 phases
Total power consumption:28kw
Total Weight:31 tons
Forming part:
Size:9200mm*1400mm*1300mm
Frame:360 I Beam
Step of Rollers:27 steps
Roller material: 40Cr
Materialof Shaft : high grade No.45 steel
Roller diameter:80mm
Composite Part;
Sizes:8000mm*2300*3200mm
Step of Rubber roller:28 steps
Thickness of rubber roller:1 inch
Two way moving shaft:9 steps
Working speed:0-4.5m/min
Steel Material thickness:0.3-0.8mm
Core thickness:50-150mm
Core material:EPS,rock wool and glass wool
Control system: PLC with touchscreen,Convertor
Shipment: 40 HQ*2 containers
Payment terms |
30% T/T prepaid and 70% balance should be paid before loading |
Delivery time |
50 working days after receiving advance payment |
Guarantee period |
18monthes free service/ pay service all the machine life |
Installationand training |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.Without visiting,we can send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
