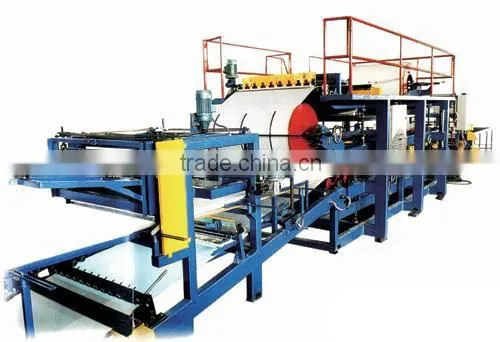

Competitive price Composite sandwich plate machine Sandwich panel making machine
|

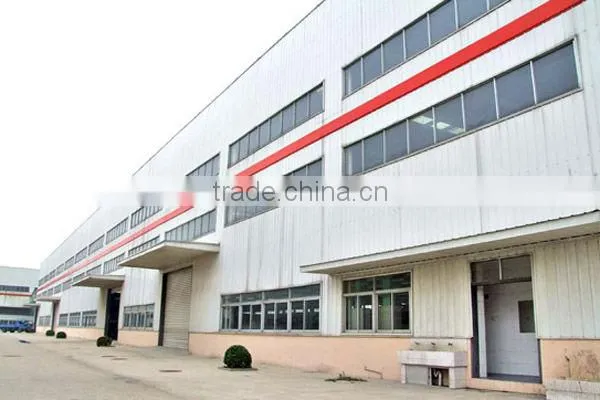

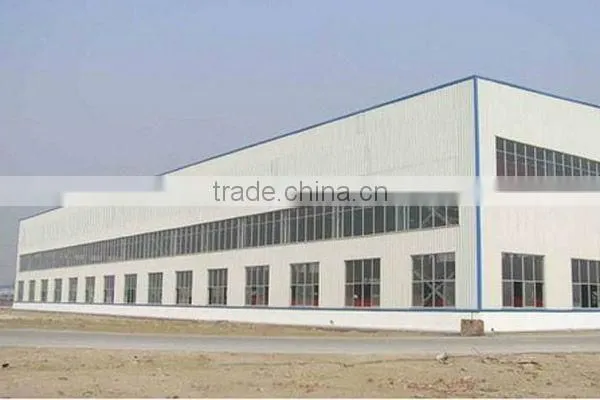

Sandwich panel production line is used to produce new building materials with stable, light, solid features and good-looking appearance. Using sandwich panel, it is convennient and fast to construct large scale houses like supermarkets, workshops, warehouses. They also can be used to construct freezing houses, purifying houses and air-conditioning houses, etc |
Working flow:
Decoiler - Roll forming - Laminating system - Cutting system - Runout table
1.Machine Output and features
- H panel,tongued& grooved panel production available
- Corrugated panel with various joints option available
- EPS or rock wool&glass wool panel available
- Joint-hidden panel with various joint and plate type available
- Continuous automatic production available
- Nonstandard panel type as Customer requirment
- Flexble option for customer practical neer
- PLC(programmable logic controller) combined with touchscreen apply convenient operation.
- Convennient operation with PLC touchscreen
- Automatic length cutting and counting
- Complete accessory equipments available
2.Technical parameters with its accessories:
- Installation dimensions:48000mm*2700mm*4500mm
- Operation voltage:380V, 50Hz,3 phases
- Total power consumption:28kw
- Total Weight:31 tons
- Forming part:
- Size:9200mm*1400mm*1300mm
- Frame:360 I Beam
- Step of Rollers:27 steps
- Roller material: 40Cr
- Material of Shaft : high grade No.45 steel
- Roller diameter:80mm
- Composite Part;
- Sizes:8000mm*2300*3200mm
- Step of Rubber roller:28 steps
- Thickness of rubber roller:1 inch
- Two way moving shaft:9 steps
- Working speed:0-4.5m/min
- Steel Material thickness:0.3-0.8mm
- Core thickness:50-150mm
- Core material:EPS,rock wool and glass wool
- Control system: PLC with touchscreen,Convertor
- Shipment: 40 HQ*2 containers
Panel with Glass fibre wool core.

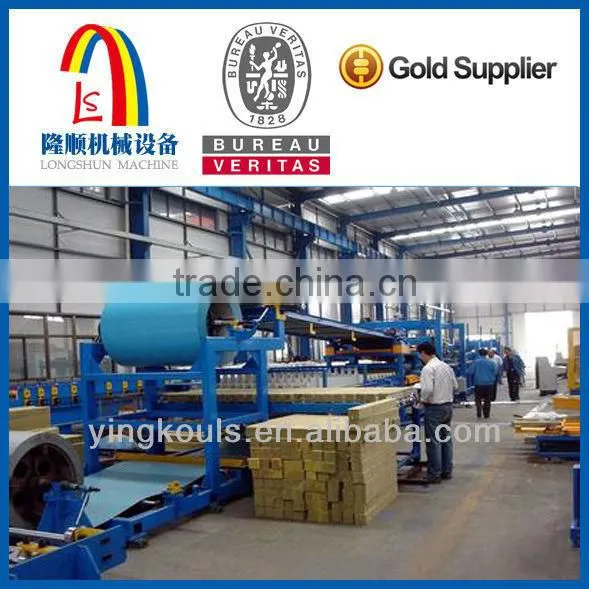

Panel with rock wool core.
EPS panel
Payment terms: 30%TT in advance, 70%-the balance should be paid before loading.
Delivery time: 7 days after receiving the 30% advance payment.
Guarantee: 18 months service for free, paid service for whole machine lif
Service :
Our products can be made according to your requirement.
We offer you quality products at favourable price.
We will give you timely quotation and welcome your enquiry at any time.
If you want more detailed information, welcome to call mail me
Installation and training:
If you come to our factory for visiting and checking, we could teach you how to install and operate the machine hand by hand, if you do not plan to come to our factory, we will send the user manual and video to show you how to install and operate. If you need our engineer and technician for local installation and we could go to your place also, but you need to pay the return tickets and accommodations in your place.
Other assistant equipment for free:
EPS grooving machine
C- channel forming machine
Slitter
Joint cap forming machine

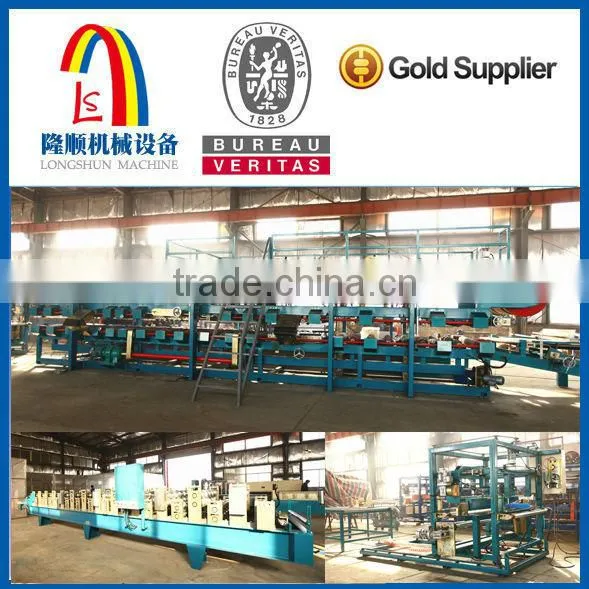

Our company takes producing color steel forming equipment series as the central task. Our main production equipment contains arch sheet machine, composite sandwich plate machine, C shape purlin machine, Z shape purlin machine, flat sheet corrugated, glazed tile roll forming machine, granary machine, bending machine, slitting machine and guard rail forming machine. We sell them around the world receiving the high praise from domestic and international customers.
Longshun people persist in pioneering and enterprising. We regard customers' needs as our driving force and attribute our success to customer approvals. What makes Longshun dominate the market is that we always provide customers with the best products. Welcome to visit our factory.
