EPS roof and wall sandwich panel producing line
Sandwich panel roll forming machine
Expanded polystyrene is white and lightweight material with excellent water-proofing, thermal insulation, soundproofing and buffering properties, and our Expanded Polystyrene Sandwich Panel Producing Equipment, using it as insulator, is the automation equipment that can continuously and efficiently produce expanded polystyrene sandwich panels of exquisite and diverse shapes.
|
This equipment has the advantages such as high durability, easy management, technology equivalent to those of advanced European companies and relatively competitive price, and is the excellent facility with the largest market share in Korea. Besides, it has been exported to Asia, Middle East, Central & South America and so on, and is well received from customers. |

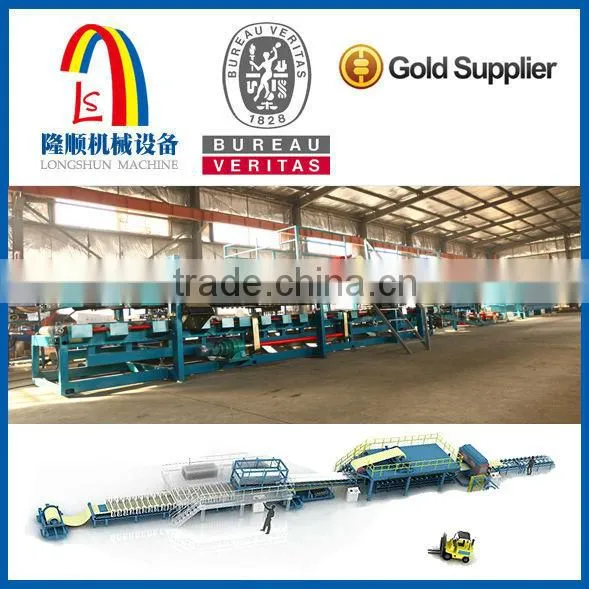

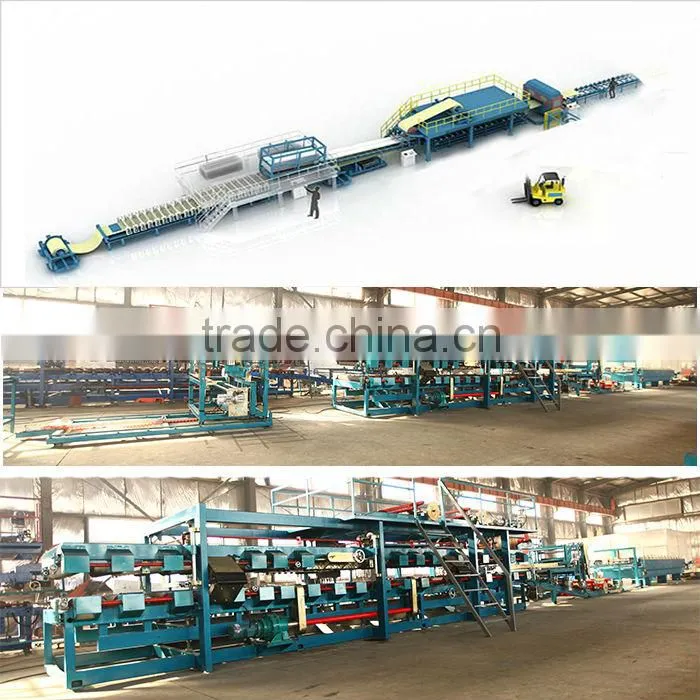

Expanded Polystyrene Sandwich Panel Producing Line consists of Un-coiler that inputs and releases coil, Roll Forming Unit that makes shape of coil, E.P.S. Board Supplying System that inputs expanded polystyrene board and properly cutting/processing it, Side & Surface Trimming System that cuts the binding sites and surface of panel in accordance with the required specification, Glue Applying System that applies bond to attach steel plate and expanded polystyrene, Laminating Unit that makes the shape of sandwich panel,
Panel Cutting Unit that cuts the fabricated sandwich panel, Auto Stacking Unit that loads the finished panels, and Panel Packing Unit that packs the loaded panels with plastic wrap and discharge them.
1.Machine Output and features

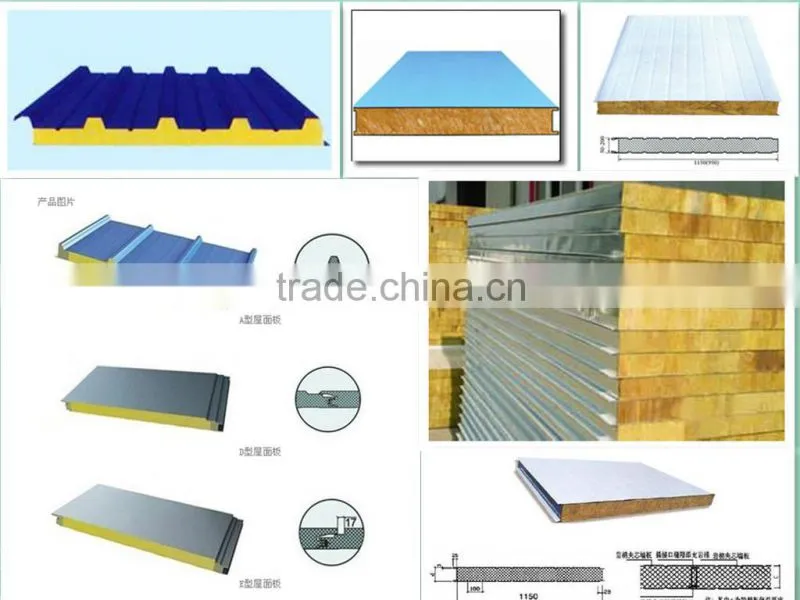

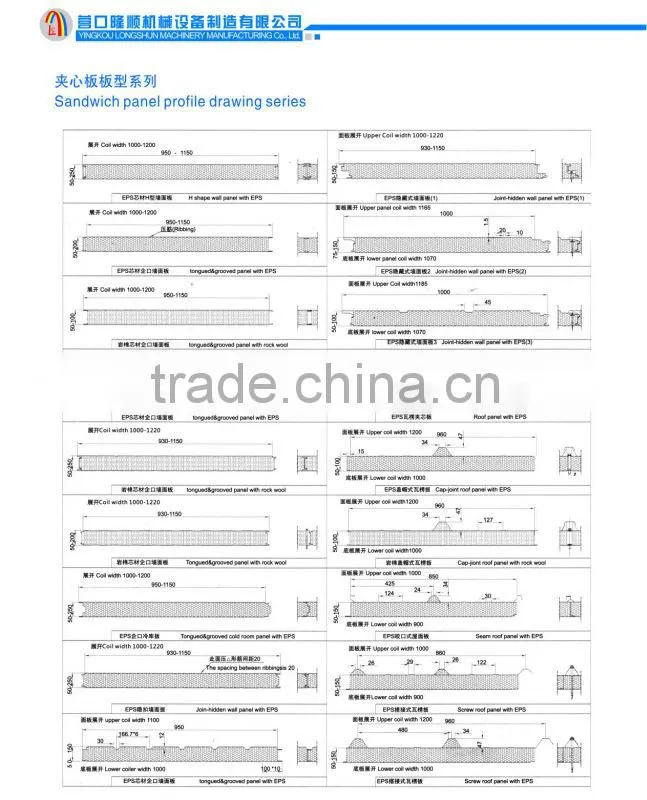

- H panel,tongued& grooved panel production available
- Corrugated panel with various joints option available
- EPS or rock wool&glass wool panel available
- Joint-hidden panel with various joint and plate type available
- Continuous automatic production available
- Nonstandard panel type as Customer requirment
- Flexble option for customer practical neer
- PLC(programmable logic controller) combined with touchscreen apply convenient operation.
- Convennient operation with PLC touchscreen
- Automatic length cutting and counting
- Complete accessory equipments available
2.Technical parameters with its accessories:
- Installation dimensions:48000mm*2700mm*4500mm
- Operation voltage:380V, 50Hz,3 phases
- Total power consumption:28kw
- Total Weight:31 tons
- Forming part:
- Size:9200mm*1400mm*1300mm
- Frame:360 I Beam
- Step of Rollers:27 steps
- Roller material: 40Cr
- Material of Shaft : high grade No.45 steel
- Roller diameter:80mm
- Composite Part;
- Sizes:8000mm*2300*3200mm
- Step of Rubber roller:28 steps
- Thickness of rubber roller:1 inch
- Two way moving shaft:9 steps
- Working speed:0-4.5m/min
- Steel Material thickness:0.3-0.8mm
- Core thickness:50-150mm
- Core material:EPS,rock wool and glass wool
- Control system: PLC with touchscreen,Convertor
- Shipment: 40 HQ*2 containers
Overall dimensions:48000mm*4500mm*2700mm
Operation voltage:380V
Total power consumption:32kw
Weight:21 tons
Working speed:0-4.5m/min
Material thickness:0.3-0.8mm
Core thickness:20-300mm
Core material:EPS,rock wool and glass wool
Control system: PLC with touchscreen
Panel with Glass fibre wool core.

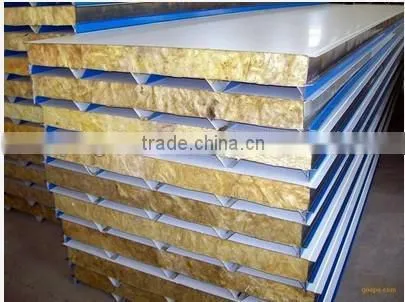

Panel with rock wool core.
EPS panel
Payment terms: 30%TT in advance, 70%-the balance should be paid before loading.
Delivery time: 7 days after receiving the 30% advance payment.
Guarantee:
18 months service for free, paid service for whole machine lif
Service :
Our products can be made according to your requirement.
We offer you quality products at favourable price.
We will give you timely quotation and welcome your enquiry at any time.
If you want more detailed information, welcome to call mail me
Installation and training:
If you come to our factory for visiting and checking, we could teach you how to install and operate the machine hand by hand, if you do not plan to come to our factory, we will send the user manual and video to show you how toinstall and operate. If you need our engineer and technician for local installation and we could go to your place also, but you need to pay the return tickets and accommodations in your place.
Other assistant equipment for free:
EPS grooving machine
C- channel forming machine
Slitter
Joint cap forming machine
