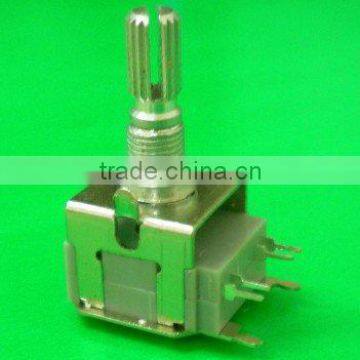

EC1613 16mm Size Switch

EC1613 16mm Size Switch thumbnail-1
EC1613 16mm Size Switch photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
APAI
Model Number:
EC1613
Contact Supplier Request Quote Chat Now
Foshan Apai Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name APAI
Model Number EC1613
Type Rotary Potentiometer
Technology Carbon Film
Rated Power 5V DC 10mA
Max. Operating Voltage 10mA
Operating Temperature 38-42

Specifications

APAI switch:
Shaft vertical type facilitates mounting and provides high versatility.

 APAI potentiometer:

 (Mechanical characteristics)

Items

EC11

EC12

EC16

Total rotational angle

360o

Rotation torque

3~20 mN.m
30~200gf.cm

3~20 mN.m
30 ~200gf.cm

3 ~24 mN.m
30 ~240gf.cm

Push-pull strength

100N/10kgf max.

50N/5.1kgf max.

(Electrical characteristics)

Ratings

5V DC, 10mA

5V DC, 0.5mA

Maximum operating current

10mA(Max.10mA, min.0.5mA

5mA

Insulation resistance

300V DC
100M min.

50V DC, 10M min.

Voltage proof

300V AC

50V AC

Sliding noise

t1, t3≤3ms
t2≤2ms(:360o/S Test conditions 360o/S)

Output signal and
Rotational direction



Detent stability point

Cw direction



Detent stability point

Cw direction



Detent stability point

Cw direction

(Push-on switch specifications)

Switch circuit

Single pole and single throw(push on)


Travel of switch

0.5 +0.4
-0.3


Operating force of switch

6

+2
-2.5

N/600

+200
-250

gf

3

+1.5
-1.0

N/360

+150
-100

gf

Ratings


(minimum ratings DC 16V 1mA)

D
(minimum ratings DC 16V 1mA)

Contact resistance

First period:100Ω, 200mΩ after the end of useful life is reached

Operating life

20,000 cycles min.
