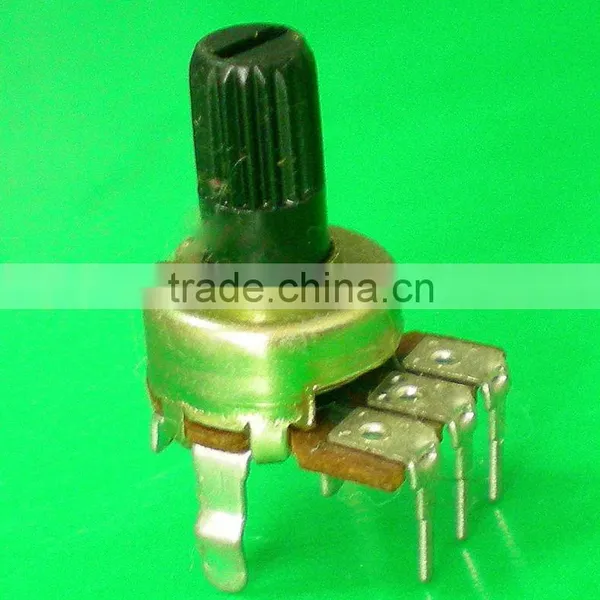

RK1212N 12mm Size Potentiometer 10K

RK1212N 12mm Size Potentiometer 10K thumbnail-1
RK1212N 12mm Size Potentiometer 10K photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
APAI
Model Number:
RK1212N
Contact Supplier Request Quote Chat Now
Foshan Apai Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name APAI
Model Number RK1212N
Type Rotary Potentiometer
Technology Carbon Film
Resistance 1-1M
Resistance Tolerance 20%
Rated Power 0.05W
Max. Operating Voltage 50V AC 20V DC
Operating Temperature -10~70

Specifications

12 mm width 10K potentiometer for audio, visual, electronic musical instruments and various applications.
High flux resistance

APAI B10K Potentiometer:

Items

RK12

RK121

Single-unit

Single-unit

Dual-unit

Total rotational angle

300o±5o

Rotation torque

20 ~200gf.cm

Rotation stopper strength

3kgf.cm

Push-pull strength

5kgf

Shaft wobble

0.7×L/20mm p-p max.




 (Electrical characteristics)

Total resistance

1 ~ 1 MΩ

5 ~ 500 KΩ

500~ 1 KΩvgsd

Total resistance tolerance

±20%

Resistance taper

A,B,C,D,W

Rating power (W)

0.05W

0.03W

0.08W

Maximum operating voltage

50V AC
20V DC

50V AC
For AC only

100V AC

Slider noise

47mV max.

68mV max.

47mV max.

Gang error



3dB max. (-40~0dB)



Insulation resistance

100 minute at 250V AC

Voltage proof

1 minute at 250V AC

Sliding life

10,000 cycles
