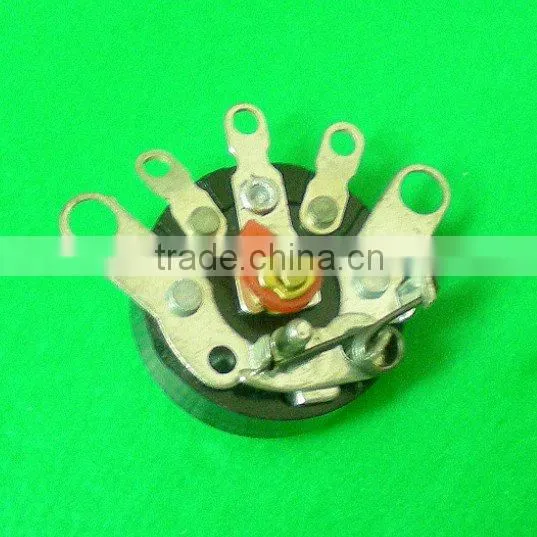

V12NS 12mm Size Micro Rotary Potentiometer With Switch

V12NS 12mm Size Micro Rotary Potentiometer With Switch thumbnail-1
V12NS 12mm Size Micro Rotary Potentiometer With Switch photo-1
US$ 0.05 - 0.08 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
APAI
Model Number:
V12NS
Contact Supplier Request Quote Chat Now
Foshan Apai Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name APAI
Model Number V12NS
Type Rotary Potentiometer
Technology Carbon Film
Resistance 5~250K
Resistance Tolerance + -20%
Rated Power 0.03W
Max. Operating Voltage 50V AC;20V DC
Operating Temperature -10~+70

Specifications

APAI 12mm Size Micro Rotary Potentiometer:
Vertical Type Single-unit wirh Switch

APAI 12mm Size Micro Rotary Potentiometer:
Vertical Type Single-unit wirh Switch





1.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

Ect.

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

2.Size:12mm/16mm

3.Unit:Single-unit/Dual-unit





Items

NC020304050708

Operating force

10120gf.cm

Lever stopper strength

3kgf (2mm point from mounting surface)

Lever wobble

1.6mm max. (both sides)

Click slip-out force(Only center click)

Operating force+20150gf.cm



 (Electrical characteristics)

Total resistance

500Ω1MΩ

Total resistance tolerance

±20%

Resistance taper

A, B, C, D, W

Rated wattage(W)

Rated

Taper

10mm

15mm

20mm

30mm

B

Single

0.05

0.05

0.1

0.2

0

Dual

0.025

0.025

0.05

0.1

Except B

Single

0.025

0.025

0.05

0.1

0

Dual

0.012

0.012

0.025

0.05

Rated voltage(V)

B

100

100

200

200

Except B

50

50

150

150

Slider noise

68mV max.

Gang error

3dB max. (-400dB)

Insulation resistance

100mΩmin. at 250V DC

Voltage proof

1 minute at 250V AC

Sliding life

10,000 cycles
