New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
- 20 Set / Sets per Month
- Dalian Port
- T/T
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Longshun | Model Number: | LS-600-305 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
</h2>
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305 </h2>
Yingkou Longshun Machinery Manufacturing Co.,Ltd is specialized in producing composite board equipment, arch sheet forming machine and flat sheet forming machine,ect. There are engineers, production line and sales team. OEM is welcome here. Any requirements just no hesitate to contact with us, we must try our best to satisfy your needs. Reasonable price and best service will be provided to you.
Welcome to visit our factory.

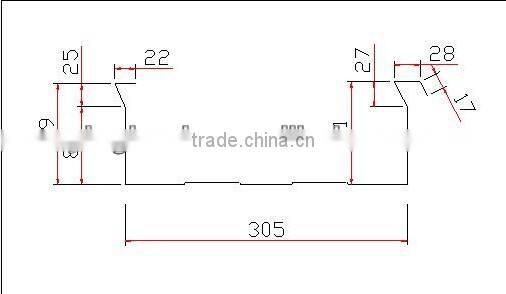

New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
Working flow:
De-coiler-----feeding-----roll forming----cutting-----curving----output table
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305

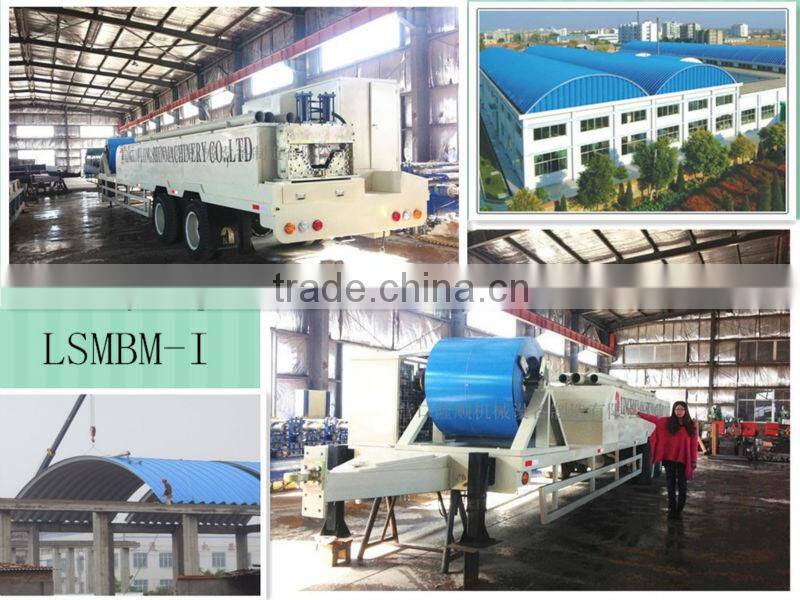

Machine components
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
Technical description:
1.Suitable material: galvanized steel, colored steel, etc
2.Coil thickness: 0.6 –1.5mm
3.Roller stands:14
4.Main Power:5.5kw
5.Hydraulic power:4.0kw
6.Roller material: 40Cr
7.Shaft material: 45# steel HRC58-62
8.Cutting Blade material:Cr12 steel
9.Machine speed: forming speed 8-13m/min
seaming speed:6m/min
10.Span ≤25
11.Power supply: AC380V±10%, 50Hz, or as per your requirement
12.Dimension: 11.5m × 2.25m × 2.35m
13.Packing: seaworthy bare packing
14.Shipment: 1*40HQ
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305

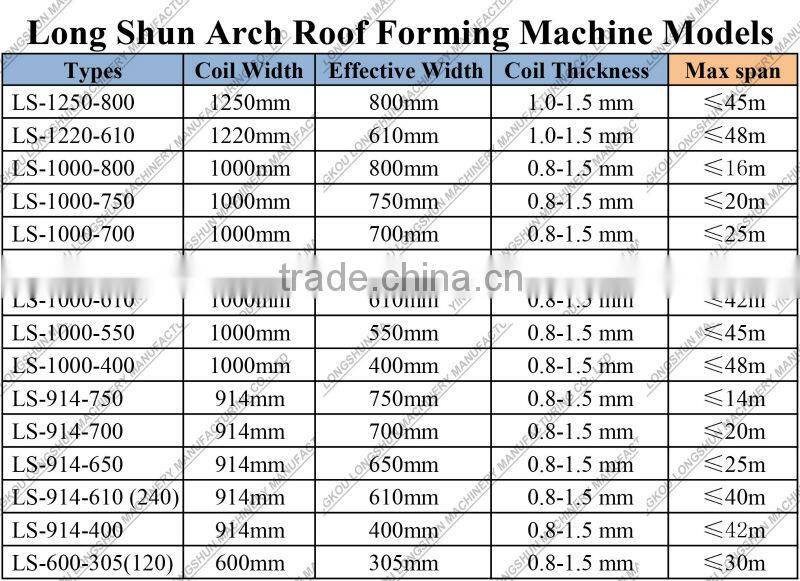

Other Models,
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
Free Accessories List:
Seamer | 2 Sets |
Hanger | 8 pcs |
Suspender | 3 pcs |
De-Coiler | 2 pcs |
Chain | 3 sets |
Clamp | 8 pcs |
Manual calculator | 1 pic |
Manual plier | 2 pcs |
Support panel | 16 pcs |
Side support panel | 8 pcs |
Electric elemen | 3 pcs |
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
Technology

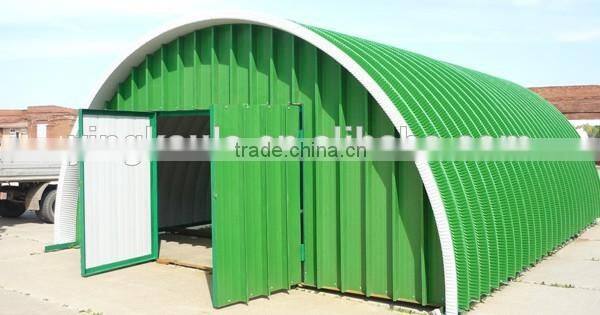

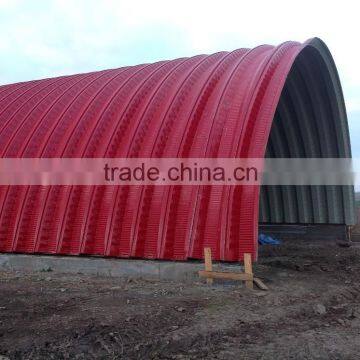

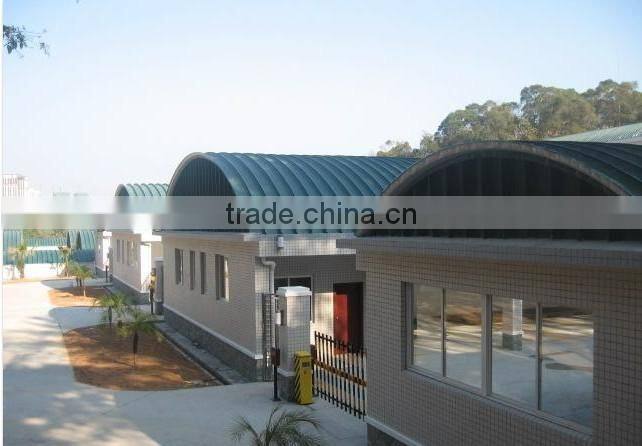

On site Production and installation of Self Supported curved roofing without any structure, enables faster and leak proof roofing systems, thus ensuring utmost flexibility in work and design.

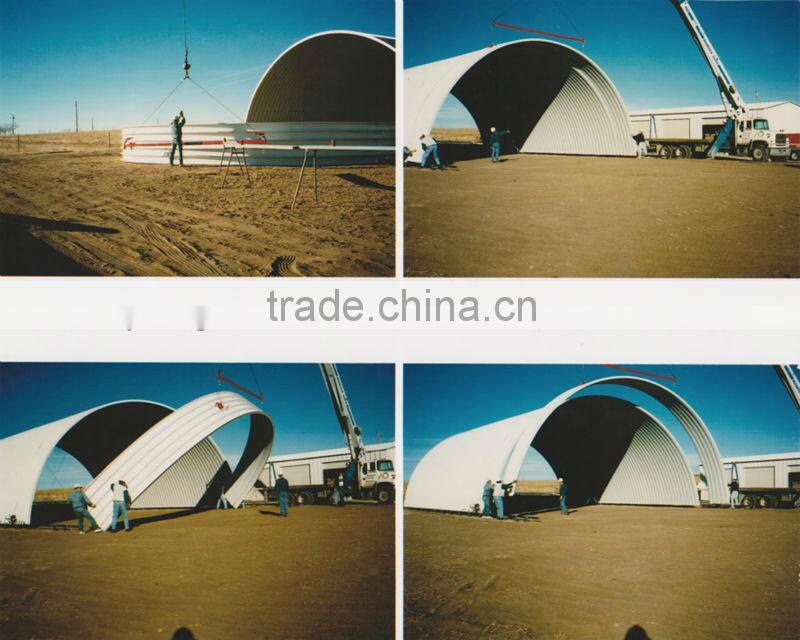

Easy & Quick Installation
As the production is carried out on site, the installation will be faster , take an example, 1500 square meters area in just 12 hours, enabling to finish the project in very quick time.
Durability and Resistance to Corrosion
Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized Steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration. It is of High tensile Steel and comes in spectrum of colors, to enhance the appearance, life and value of the building; specially designed sewing machines eliminate use of fasteners and thus ensure 100% leak proof roofing.
Payment | 30% T/T prepaid and balance done before loading |
Packaging | standard seaworthy packing |
Delivery | within 25 days |
Guarantee | 18 months free service/ pay service all the machine life |
Installation and training | If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. to teach you to install and operate. please arrange board and lodging and other necessary things. |
New Brand Hydraulic arch steel k sheet machine LSMBM-600-305
For more details, just no hesitate to contact with me.
No matter when and where, i am here waiting for you.
Skype: lsmachine04
Tel:+86 417 6659588
M.B.:+86 183 4177 4967
Contact: Joanna
