</h2> 240 Hydraulic Steel Arch Roof Without Girders Machine </h2>
WELCOME TO OUR WORKSHOP!
YINGKOU LONGSHUN MACHINERY MANUFACTURING Co., Ltd is an enterprise mainly engaged in researching, designing and producing a wide range of machinery for making modern construction materials. Research and development is the life blood of our enterprise and we focus on innovation continuously to meet the needs of our customers. Our products include large span arch metal sheet roofing machines, corrugated metal sheetroll forming machines, highway guardrail forming machines, metal sheet siloroll forming machines, C-shape & Z-shape purlin roll forming machines, SIP(structrual insulated panel) machines, high pressure polyurethane PU foam machines, square metal tube bending machines, as well as their accessaries.We demand of ourselves the highest mechanical standard. Our products and our process will be of the highest quality.we are sure that you will be more than satisfied to use our products or to establish a long term business relationshipwith us.
Why Do People Choose 240 Hydraulic Steel Arch Roof Without Girders Machine ?

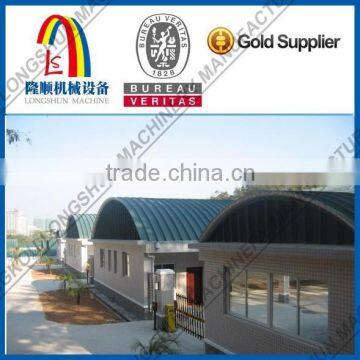

1.The shaped arch sheets have the features of high crest, intensity height, no-screw side whipstitch bite installation.
2.The installation process is very safe and can prevent well of the water.
3.Trussless roofing machine is a movable factory with high automaticity and the cost of the project is very cheap
that are well applied to site hoisting, then it can save much for the construction.
What is the characteristics of our machine?
The Roller of the plate roll machine are designed with good quality of the structural steel,
and then processed with thermal refining, finish machining, High frequency surface
hardening grinding , Hard chromium plating, Polishing ,the degree of finish is very high ,
also a great hardness and a longer lifespan it will be.
All the gears in the traditional systems have all been critically processed and the link chains
have been treated with high frequency quenching heat. The good quality of the dynamic
transmission part will keep the machine working stable for a long time without an interval
with the high strength work condition.
240 Hydraulic Steel Arch Roof Without Girders Machine
Details Show
Machine Components:
Technical description:
Suitable material: galvanized steel, colored steel, etc
Total weight:11tons
Coil thickness: 0.8 –1.5mm
Roller stands:14
Roller diameter:80mm
Roller material: 40Cr,quenched by HRC58-62
Shaft material: No.45 steel
Cutting Blade material:Cr12 Mov.
Production speed: 13m/min
Power supply: AC380V±10%, 50Hz, or as per your requirement
Main machine dimension: 8.9m × 2.25m × 2.35m
Model list
| Type | Width of the coil | Width of the formed sheet | Thickness of the coil | Max span | Use ratio | The depth of the groove |
| LS-1250-800 | 1250mm | 800mm | 1.0-1.5 mm | ≤45m | 64% | 320mm |
| LS-1000-800 | 1000mm | 800mm | 0.8-1.5 mm | ≤25m | 80% | 114mm |
| LS-1000-750 | 1000mm | 750mm | 0.8-1.5 mm | ≤28m | 75% | 138mm |
| LS-1000-700 | 1000mm | 700mm | 0.8-1.5 mm | ≤25m | 70% | 175mm |
| LS-1000-680 | 1000mm | 680mm | 0.8-1.5 mm | ≤36m | 68% | 223mm |
| LS-1000-610 | 1000mm | 610mm | 0.8-1.5 mm | ≤45m | 61% | 243mm |
| LS-1000-550 | 1000mm | 550mm | 0.8-1.5 mm | ≤45m | 55% | 187.5mm |
| LS-1000-400 | 1000mm | 400mm | 0.8-1.5 mm | ≤45m | 40% | 253mm |
| LS-914-750 | 914mm | 750mm | 0.8-1.5 mm | ≤20m | 82% | 86mm |
| LS-914-700 | 914mm | 700mm | 0.8-1.5 mm | ≤25m | 76% | 123mm |
| LS-914-650 | 914mm | 650mm | 0.8-1.5 mm | ≤28m | 71% | 181mm |
| LS-914-610 | 914mm | 610mm | 0.8-1.5 mm | ≤40m | 66% | 203mm |
| LS-914-400 | 914mm | 400mm | 0.8-1.5 mm | ≤45m | 43% | 210mm |
| LS-600-305 | 600mm | 305mm | 0.8-1.5 mm | ≤30m | 51% | 109mm |
Payment Term and condition
* Payment Term: 30 T/T in advance, 70% T/T before delivery
* Delivery Time: Within 30 Days after receipt of the down payment
* Warranty: 1 year and life-long maintain
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer
provides accommodation, food and the round-trip ticket fee.
* Installation Days: about 5 days
* Transporting: 1x40ft container
Our service
Our products can be made according to your requirement.
Excellent quality and reasonable price to provide.
We do quotation within 24 hours and welcome your any inquiry at anytime.
More detail please call or email to me directly,thank you !
My Skype ID : maxine198908
My phone No.:0086-18341774965
Don't hesitate to contact me!
