Home > Products > Bag Making Machine > High Speed Three Side Sealing Bag Making Machine, Double Sides, Bottom
High Speed Three Side Sealing Bag Making Machine, Double Sides, Bottom
- Nngbo Port
- T/T Credit Card
You May Like
-
Automatic Plastic Bag Making Machine/side Sealing Bag Making Machine
-
Double-line Fully Automatic High-speed T-shirt Bag Making Machine
-
Automatic Quality Warranty Small-scale Plastic Bag Making Machine With Best Service
-
Sheeting Plastic Bag Making Machine,shoppingbag Making Machine,t-shirt Bag Making Machine
-
Bottom Sealing Heavy Duty Plastic Bag MakingMachine
-
Two Lines Heat Sealing & Cutting Polythene Bagmaking Machine
Product Details
| Condition | New | Machine Type | Cutting Machine | |
| Bag Type | Shopping Bag | Material | Plastic | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | SL | Model Number | SLZD | |
| Voltage | 220V 50Hz | Power(W) | 4.5KW | |
| Dimension(L*W*H) | 2800x1200x1900mm | Weight | 650KGS | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

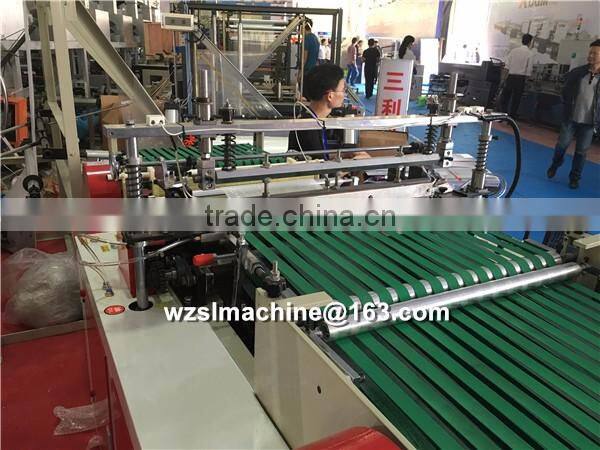

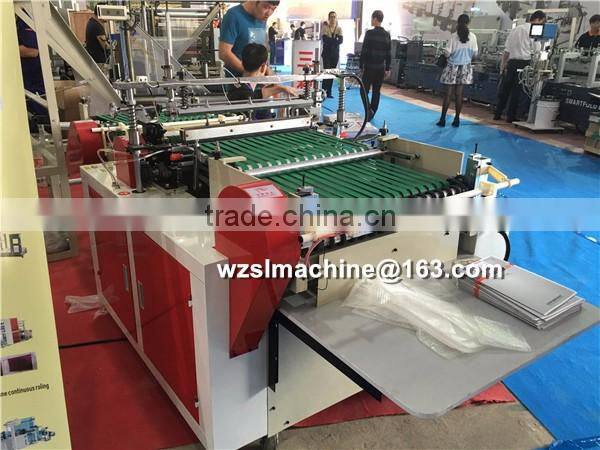

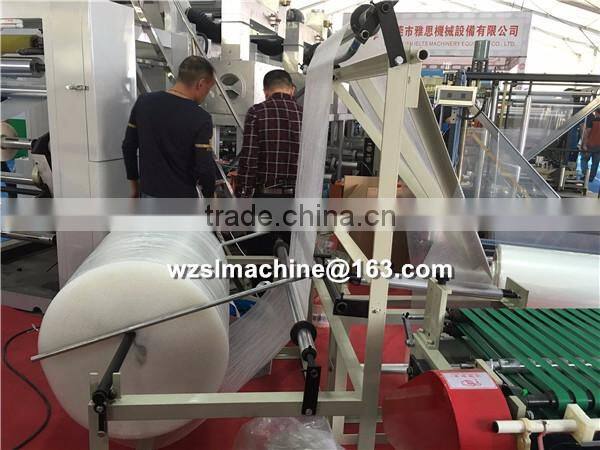

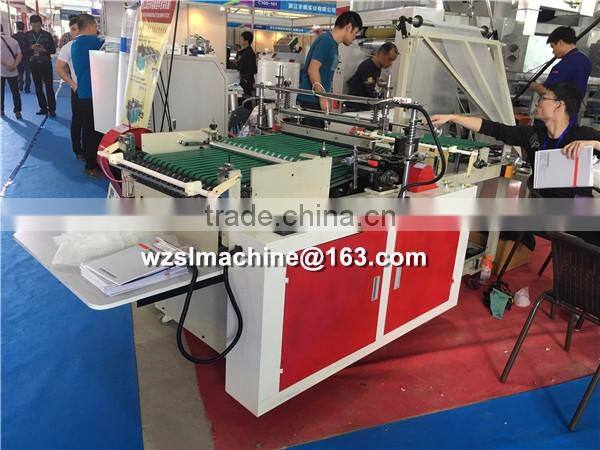

high speed Three side sealing bag making machine, double sides, bottom
This machine is applied to make the printed and uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor fixed length and the liquid crystal screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.It's traced by 2 photocells to make the printing very exactly.
Feature:
1.The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).
2.Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost,photoelectriccontrol feeding
3.Automatic counting and set able counting alarm.
4.Automatic constant temperature makes the sealing of bag opening firm and smooth.
5.Non-printing material can make bags in duoble lines by 4rolls feeding,making 4bas in one time.
Material processed:
HDPE/LDPE/LLDPE (as per the quality and usage of the film)
Main Technical Parameter:
MODEL | SLZDT600 | SLZDT700 | SLZDT800 |
Bag Width (Max) | 550MM | 650MM | 750MM |
Bag Length | 100-1200MM | 100-1500MM | 100-1600MM |
Converting Thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Accuracy Length | ±1 | ±1 | ±1 |
Speed Cut/Min | 30-140 | 30-140 | 30-140 |
Motor | 1.1kw/1.5HP | 1.1kw/1.5HP | 1.1kw/1.5HP |
Heater | 2kw | 2.2kw | 2.3kw |
Power Required | 4.3KW | 4.5KW | 4.6KW |
Dimension (L×W×H) | 2800×1180×1900MM | 2800×1280×1900MM | 2900×1380×1900MM |
Gross Weight | 600kg | 700kg | 800kg |
