Sheeting Plastic Bag Making Machine,shopping Bag Making Machine,t-shirt Bag Making Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Nngbo Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Cutting Machine
Bag Type	Shopping Bag	Material	Plastic
Computerized	Yes	Place of Origin	Zhejiang, China
Brand Name	SL	Model Number	SLZD
Voltage	220V 50Hz	Power(W)	4.5KW
Dimension(LWH)	2800x1200x1900mm	Weight	650KGS
Certification	CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

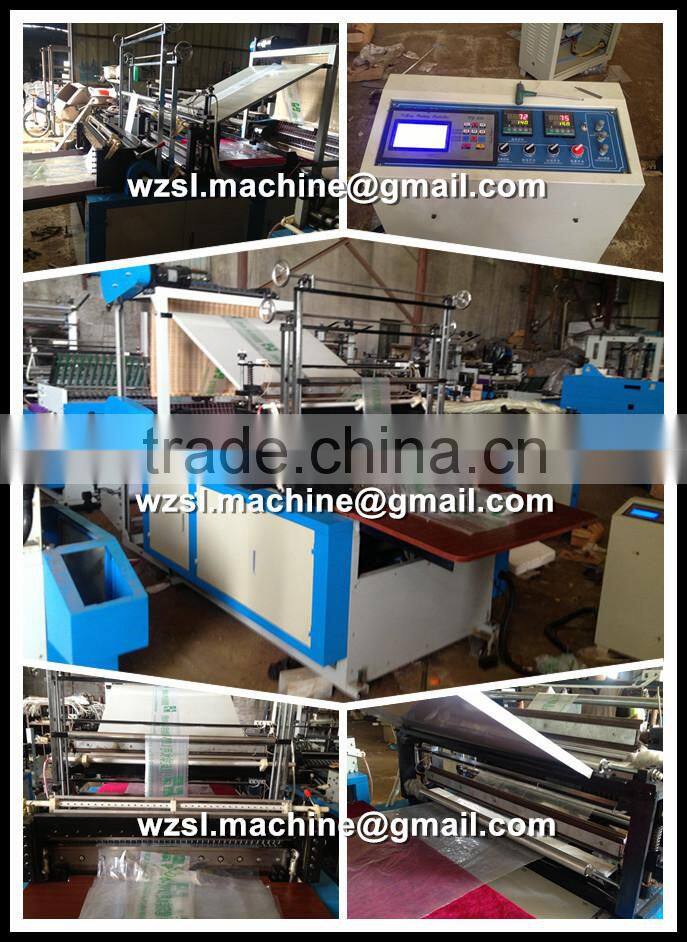

Sheeting plastic Bag Making Machine,shopping bag making machine,t-shirt bag making machine

This machine is applied to make the printed and uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor fixed length and the liquid crystal screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.It's traced by 2 photocells to make the printing very exactly.

Feature:

1.The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).

2.Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost,photoelectriccontrol feeding

3.Automatic counting and set able counting alarm.

4.Automatic constant temperature makes the sealing of bag opening firm and smooth.

5.Non-printing material can make bags in duoble lines by 4rolls feeding,making 4bas in one time.

Material processed:

HDPE/LDPE/LLDPE (as per the quality and usage of the film)

Main Technical Parameter

MODEL	SLZDT600	SLZDT700	SLZDT800
Bag Width (Max)	550MM	650MM	750MM
Bag Length	100-1200MM	100-1500MM	100-1600MM
Converting Thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Accuracy Length	±1	±1	±1
Speed Cut/Min	30-140	30-140	30-140
Motor	1.1kw/1.5HP	1.1kw/1.5HP	1.1kw/1.5HP
Heater	2kw	2.2kw	2.3kw
Power Required	4.3KW	4.5KW	4.6KW
Dimension (L×W×H)	2800×1180×1900MM	2800×1280×1900MM	2900×1380×1900MM
Gross Weight	600kg	700kg	800kg
