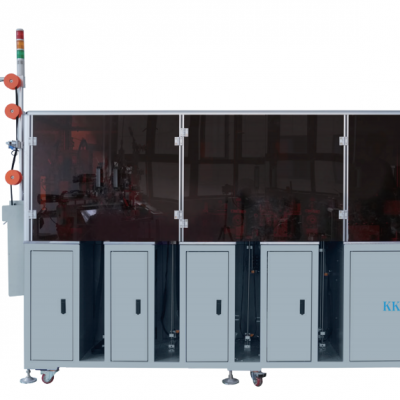

Full-auto intelligent metal gapping,film sealing,hole punch,pin box,inspection 5 in 1 zipper machine

Full-auto intelligent metal gapping,film sealing,hole punch,pin box,inspection 5 in 1 (with AI visual quality inspection system)

Product advantage

1.The machine is used for 4 processes of metal zipper,such as gapping,film sealing,punching,and pin box etc.It integrated 4 processes into one,

occupies less floor space,and can be operated by many sets of machines per person,with high efficiency per person.

2.The series connection between the production processes is relatively compact, avoiding the emergence of defective products in the production process due to zipper stacking.

3.The gapping part adopts double selective teeth design,no need to manually repair the teeth,and the high and low teeth are the same.

4.The film sealing part of the transparent tape and taffeta universal, with strong washing performance, installed real-time temperature monitoring, to avoid burnt film.

5.Punching using ultrasonic,good washing performance.

6.The pin box part adopts the process of pressing and then hitting,with beautiful appearance and high strength.

7.AI visual inspection quality system can be added to identify the appearance of the film, the location of the pin box and the bad eye of the pin, and mark the defective products.

Model:KKK-5M

Power:5KW

Volt:380V

Frequency:50/60HZ

Net weight:720KGS

Gross weight:880KGS

Average output:1000PCS/H

Machine size:369*120*196cm

Packing size:160*126*195cm
