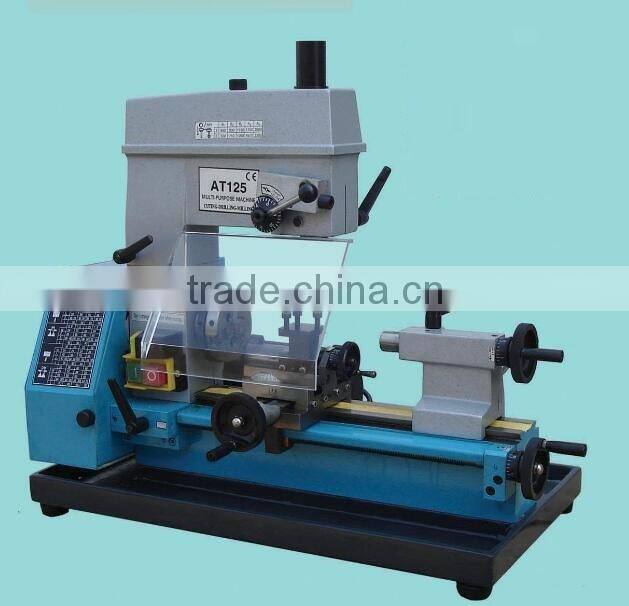

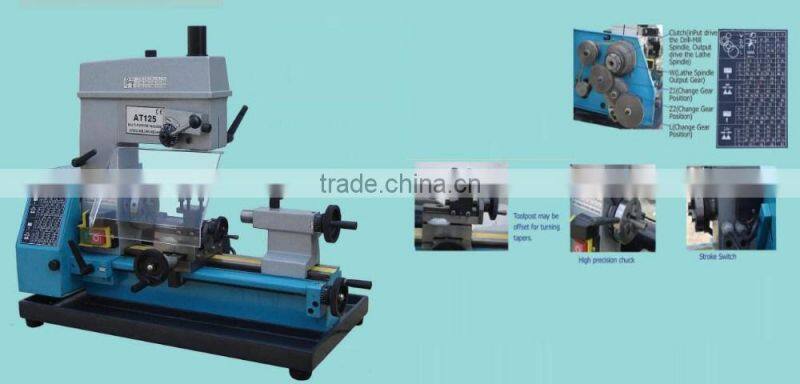

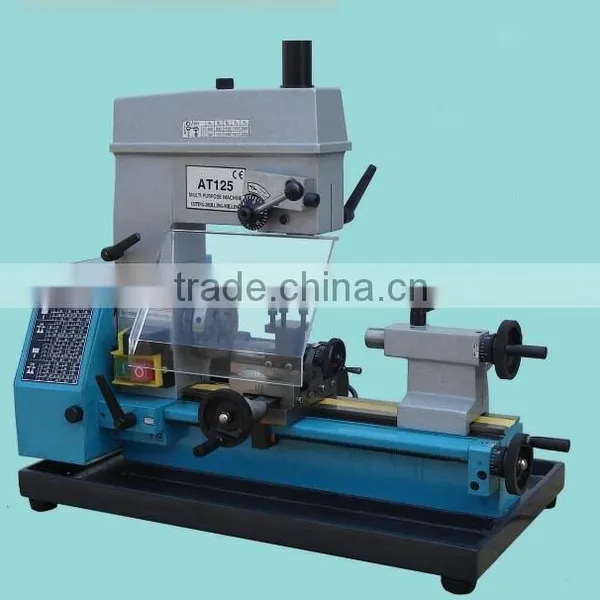

Mini Multi-purpose Combo Lathe Mill Drill Head Combo Lathe Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Anhui Yiming Plastic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Place of Origin Anhui, China

Model Number AT 125

Voltage 220V ;110V

Power(W) 0.18 kw

Dimension(L*W*H) 520x300x410 mm

Weight 15 kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

mini multi-purpose combo lathe mill drill head combo lathe machine

1. Product Data Detail

Cutting	AT 125	Drilling Milling	AT 125
Max. Swing diameter over bed (mm)	125	Max. Drilling capacity	6
Max. Length of work piece (mm)	180	Distance from bench to spindle nose	120-180
Max. Swing diameter over tool carrier(mm)	60	Distance between spindle center and the surface of column	125
Spindle Bore	9	Swivel-angle of headstock around column	360
Taper of hole in spindle morse	NO.1	Mill and drill headstock vertical lifting
Max. Cross stroke over tool carrier		Spindle speed step	10
Max.Long stroke over small tool carrier		Spindle speed scope (r/min)
Metric thread kinds on processing	10	Bench dimension (mm)	85x60
Metric thread pitch on processing	0.25-1	Taper of hole in milling spindle morse	NO.1
Inch thread kinds on processing	10	Stroke on spindle hole	40
Inch thread pitch on processing	22-64 1 / n' '	Electric motor (KW)	0.18
Longitudianl feed on spindle tool carrier	0.07-0.14 / r	Net Weight (KG)	15
Taper of hole in tailstock	NO.1	Overall dimension (mm)	520x300x410
Max. Stroke on taper hole (mm)	18	Voltage	110V,60Hz/220V,50Hz
Spindle speed step	5
Spindle speed scope (r/min)	560-2500
Remark: There is no any standard and special accessories in this kind of machine .
