Bench Lathe Machine Drilling Bench Milling Lathe Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Anhui Yiming Plastic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 250 mm

Place of Origin Anhui, China

Model Number CQ 9325

Voltage 220V/110V

Power(W) 0.55kw

Dimension(L*W*H) 1110x580x600 mm

Weight 150 Kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

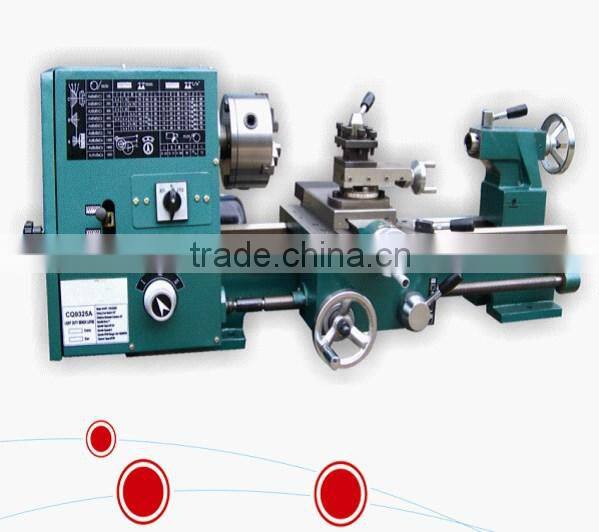

Bench Lathe Machine Drilling Bench Milling Lathe Machine

1. Product Data Detail

Cutting	CQ 9325		CQ 9325A	CQ 9325B
Max. swing diameter over bed	250 mm
Max. Length of working piece	400 mm			500 mm
Swing diameter over tool carrier	100 mm
Spindle bore	26 mm
Taper of hole spindle morse	No.4
Max. Cross stroke over tool carrier	130 mm
Max. Longitudinal stroke over small tool carrier	60 mm
Metric thread kinds on processing	17 mm
Metric thread pitch on processing	0.2-3.5 mm
Inch thread kinds on processing	21 mm
Drilling & Milling	CQ 9325	CQ 9325A		CQ 9325B
Inch thread pitch on processing	8-56 1/n''
Longitudinal feed on spindle	0.06-0.23 mm
Cross feed on spindle tool carrier			0.005-0.134 mm
Max. Stroke on taper hole	No.3
Taper of hole in tailstock	No. 3
Spindle speed step	9
Spindle speed scope	125-1800r/min
Electric motor	0.55 KW
N.W.	130 KG		135 KG		150 KG
Overall dimension (L x W x H )	1110x580x600 mm				1260x580x600 mm
