CQ280 CQ220V CQ250V Micro Bench Lathe Mini Bench Lathe

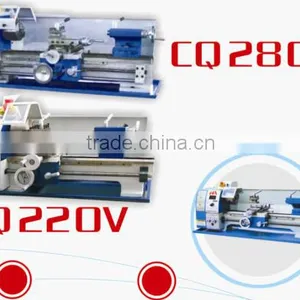

CQ280 CQ220V CQ250V Micro Bench Lathe Mini Bench Lathe thumbnail-1
CQ280 CQ220V CQ250V Micro Bench Lathe Mini Bench Lathe photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Anhui Yiming Plastic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 750 mm
Place of Origin Anhui, China
Model Number CQ280 CQ220V CQ250V
Voltage 220V/110V
Power(W) 1.1KW
Dimension(L*W*H) 1400x700x680 mm
Weight 230 Kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

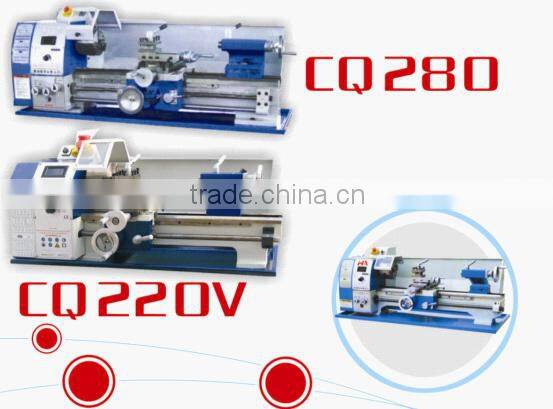

CQ280 CQ220V CQ250V Micro bench lathe Mini bench lathe









Model

CQ280

CQ250V

CQ220V

Distance between centers

700mm

550/750mm

360mm

Swing over bed

280mm

250mm

210mm

Swing over cross slide

165mm

145mm

130mm

Taper of spindle bore

MT4

MT4

MT3

Spindle bore

26mm

26mm

500

Number of spindle speed

6/variable speed

6/variable speed

6/variable speed

Range of spindle speed

125-2000/

50-2000rpm

125-2000/

50-2000rpm

125-2000/

50-2000rpm

Range of longitudinal feed

0.07-0.40mm/r

0.07-0.20mm/r

0.04-0.125mm/r

Range of inch threads

8-56T.P.I

8-56T.P.I

8-28T.P.I

Range of metric threads

0.2-3.5mm

0.4-3.5mm

0.4-3.0mm

Top slide travel

50mm

50mm



Cross slide travel

140mm

115mm



Tailstock quill travel

80mm

70mm

45mm

Taper of tailstock quill

MT2

MT2

MT2

Electric motor

0.75/1.1KW

0.55/0.75KW

0.5KW

Packing size (mm)

1400x700x680

1150/1350x560x570

1055x580x440

N.W./G.W.

210KG/230KG

120KG/140KG

115KG/130KG









CQ280 CQ220V CQ250V Micro bench lathe Mini bench latheCQ280 CQ220V CQ250V Micro bench lathe Mini bench lathe
