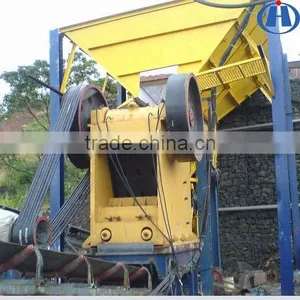

Help CenterAggregate Crusher Made by Henan Hongji
Related Products
-
Coke Crusher Are Best-selling in IndonesiaUS$ 5,000 - 100,000MOQ: 1 Set -
Beneficiation EquipmentUS$ 10,000 - 3,000,000MOQ: 1 Set
-
High Quality &Certificated With CE/ISO9001-2008 Table ConcentratorUS$ 6,000 - 19,999MOQ: 1 Set
-
High Quality &Certificated With CE/ISO9001-2008 Mineral ShakerUS$ 6,000 - 19,999MOQ: 1 Set
-
High Quality &Certificated With CE/ISO9001-2008 Shaking TableUS$ 6,000 - 19,999MOQ: 1 Set
Specifications
aggregate crusher1)Stable reliable performance
2)newest design
3)high efficiency light weight
4)40% market share
crusher manufacturer High Effective advanced crusher:
Henan Hongji supply High Effective fine crusher, jaw crushers, jaws crusher, high quality big capacitymainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, and chemical industry.
Working Principle of sand crusher:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Characteristics of fine aggregate crusher:
-High ratio of crushing,
-Even final size,
-Simple structure,
-Reliable working condition,
-Easy maintenance,
-Low operating cost.
Technical Data:
Model |
Max. Feeding Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Overall Dimensions (mm) |
Weight (t) |
PE150×250 |
125 |
10-40 |
1-3 |
5.5 |
896×745×935 |
0.8 |
PE250×400 |
200 |
20-60 |
5-20 |
15 |
1150×1275×1240 |
2.8 |
PE400×600 |
350 |
40-100 |
15-60 |
30 |
1700×1732×1653 |
6.5 |
PE500×750 |
425 |
50-100 |
50-100 |
55 |
2035×1921×2000 |
10.3 |
PE600×900 |
480 |
65-160 |
60-130 |
75 |
2290×2206×2370 |
16.5 |
PE750×1060 |
630 |
80-140 |
80-180 |
110 |
2620×2302×3110 |
29 |
PE900×1200 |
750 |
95-165 |
140-260 |
110 |
3789×2826×3025 |
54.5 |
PE1000×1200 |
850 |
195-265 |
315-550 |
110 |
3335×3182×3025 |
57 |
PE1200×1500 |
1020 |
150-300 |
400-800 |
160-220 |
4200×3750×3820 |
100.9 |
PEX250×750 |
210 |
25-60 |
10-40 |
22 |
1667×1545×1020 |
5 |
PEX250×1000 |
210 |
25-60 |
15-50 |
30 |
1550×1964×1380 |
6.5 |
PEX250×1200 |
210 |
25-60 |
20-60 |
37 |
1560×2104×1415 |
7.7 |
