High Quality &Certificated With CE/ISO9001-2008 Shaking Table

High Quality &Certificated With CE/ISO9001-2008 Shaking Table photo-1
US$ 6,000 - 19,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
high
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Gravity Separator
Production Capacity high
Place of Origin Henan, China
Brand Name HONGJI
Model Number L-S
Voltage 220v
Power(W) 1.1kw
Dimension(L*W*H) 5454*1825*1242
Weight 1012kg
Certification CE, ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Shaking table:
1,low investment , high efficiency
2,easy maintence
3,widely used

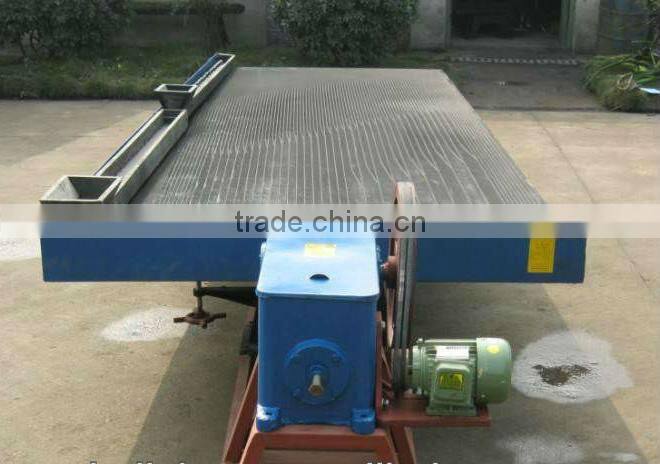

High Quality &Certificated CE/ISO9001-2008 Shaking Table

 Application:

 Shaving table is widely used for separating ore particle and slime with size 2-0.02 mm, such as tin,

 tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ilmenite, coal and so on.

  High Quality &Certificated with CE/ISO9001-2008 Shaking Table

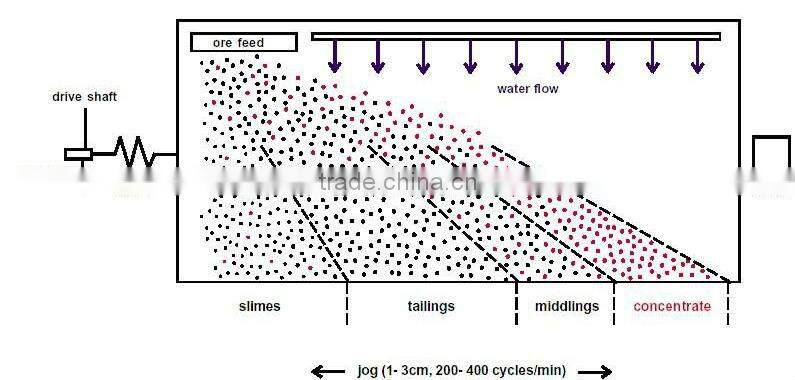

Working principle:

   The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. With the rod moving down, minerals on tilting deck installed by rifle spokes go into the feed box. At the same time, water stored in the water tank impacts the minerals laterally.



High Quality &Certificated with CE/ISO9001-2008 Shaking Table



 Main technical parameters:

 Model

 L-S (6-S)type

  Clean water(t/h)

  0.4-0.8

 Stroke(mm)

 10-30

  Table size (mm)

  1520*1825*4500

     Frequency(time/min)

 240-360

  Motor(kw)

  1.1

  Horizontal obliquity(o)

 0-8

  Capacity(t/h)

  0.5-1.2

 Sorting size(mm)

 2-0.074

  Weight (kg)

  1012

 Feeding thickness(%)

 15-30

Dimension(mm)

  5454*1825*1242

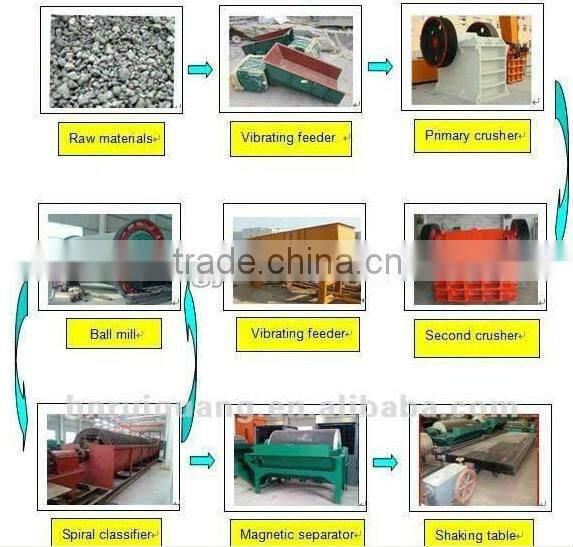

Flow chart of the benefication process and  machine needed :High Quality &Certificated with CE/ISO9001-2008 Shaking Table

Quotation will be early sent to you if ur enquiry provide :



1, What is the result of your ore composition analysis ? what is your requirement of the  final products?

2, What machine you want to buy? shaking table or a whole line plant?

3, What is your capacity?

4, What is the raw material ore size?

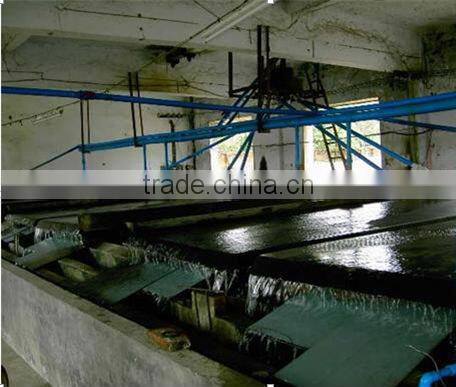

Shaking table work site:

High Quality &Certificated with CE/ISO9001-2008 Shaking Table

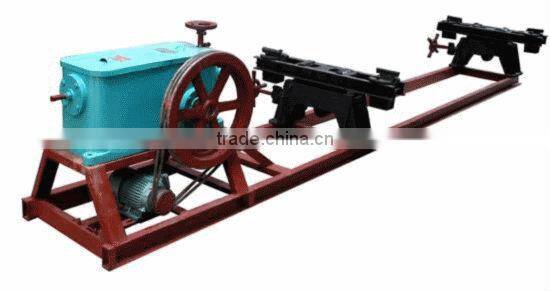

Shaking table support:

High Quality &Certificated with CE/ISO9001-2008 Shaking Table

Comapny certification and honor:



High Quality &Certificated with CE/ISO9001-2008 Shaking Table

Our customers from different countries:

High Quality &Certificated with CE/ISO9001-2008 Shaking Table
