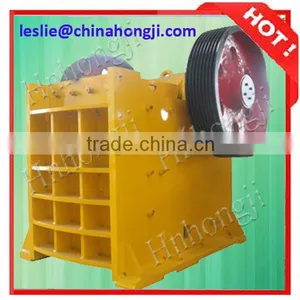

Help CenterHigh Quality Two Stage Crusher Jaw PE/PEX Series With Capacity of 1-800TPH
Related Products
-
High Efficiency Reliable Basalt Jaw Crusher With Large Capacity and Good PriceUS$ 1,500 - 120,000MOQ: 1 Set -
Zhengzhou Hongji High Efficiency Durable Jaw Crusher Pe400x600 With Large Capacity and Good PriceUS$ 1,500 - 120,000MOQ: 1 Set
-
High Efficiency Durable jc Jaw Crusher With Capacity of 1-800TPHUS$ 1,500 - 120,000MOQ: 1 Set
-
Zhengzhou Hongji High Efficiency Jaw Crusher for Iron Ore With Large CapacityUS$ 1,500 - 120,000MOQ: 1 Set
-
High Efficiency Reliable Jaw Crusher Series With Large Capacity and Good PriceUS$ 1,500 - 120,000MOQ: 1 Set
Specifications
PE/PEX Series two stage crusher jaw-Hongji1Firm structure.
2Capacity:1-800T/H
3)ISO9001-2008
4Easy maintenance
High quality two stage crusher jaw PE/PEX series with capacity of 1-800TPH
Introduction of two stage crusher jaw :
Jaw Crusher is widely used to crush various large stones, limestone, granite, basalt, river gravel, etc. Jaw crusher’s highest anti-pressure strength of material to be crushed is 320MPa. The jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, chemical industry, etc.
Application of two stage crusher jaw :
HONGJI jaw Crusher(jaw-breaking for short, PE new jaw-breaking), widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry and many other departments. Jaw crusher can crush different kinds of materials which the compressive strength is not more than 320MPa, is the first choice of primary crushing equipment.
Main Features and Benefits of two stage crusher jaw :
1)High capacity
2)High reliability
3)Adjustable for easy wear parts
4)Over-loading protection
5)Simple structure and easy to operate
6)Easy replacement of wear and spare parts
7)Energy-saving equipment: Stand-alone energy-saving 15% ~ 30%, the system energy-saving more than doubled
8)low noise and less dust
Export countries of two stage crusher jaw :
India, Vietnam, Kazakhstan, Mongolia, Pakistan, Iran, Ecuador, middle east and other countries and areas.
Working Principles of two stage crusher jaw :
The motor drives pulley of jaw crusher, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process in jaw crusher. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.
Main Technical Data(parameters) of two stage crusher jaw :
Model |
Max. Feeding Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Overall Dimensions (mm) |
Weight (t) |
PE150×250 |
125 |
10-40 |
1-3 |
5.5 |
896×745×935 |
0.8 |
PE250×400 |
200 |
20-60 |
5-20 |
15 |
1150×1275×1240 |
2.8 |
PE400×600 |
350 |
40-100 |
15-60 |
30 |
1700×1732×1653 |
6.5 |
PE500×750 |
425 |
50-100 |
50-100 |
55 |
2035×1921×2000 |
10.3 |
PE600×900 |
480 |
65-160 |
60-130 |
75 |
2290×2206×2370 |
16.5 |
PE750×1060 |
630 |
80-140 |
80-180 |
110 |
2620×2302×3110 |
29 |
PE900×1200 |
750 |
95-165 |
140-260 |
110 |
3789×2826×3025 |
54.5 |
PE1000×1200 |
850 |
195-265 |
315-550 |
110 |
3335×3182×3025 |
57 |
PE1200×1500 |
1020 |
150-300 |
400-800 |
160-220 |
4200×3750×3820 |
100.9 |
PEX250×750 |
210 |
25-60 |
10-40 |
22 |
1667×1545×1020 |
5 |
PEX250×1000 |
210 |
25-60 |
15-50 |
30 |
1550×1964×1380 |
6.5 |
PEX250×1200 |
210 |
25-60 |
20-60 |
37 |
1560×2104×1415 |
7.7 |
If you want more details, pls do not hesitate to contact us. Your desire, we design.
