Specifications
High efficiency jaw crusher pe400x600-Hongji1Firm structure.
2Capacity:1-800T/H
3)ISO9001-2008
4Easy maintenance

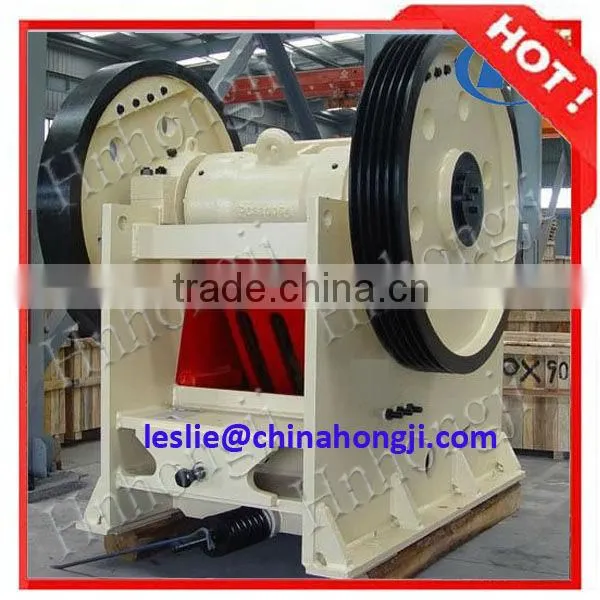

High efficiency durable jaw crusher pe400x600
Introduction of jaw crusher pe400x600 :
Jaw Crusher is widely used to crush various large stones, limestone, granite, basalt, river gravel, etc. Jaw crusher’s highest anti-pressure strength of material to be crushed is 320MPa. The jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, chemical industry, etc.
Application of jaw crusher pe400x600 :
HONGJI Rough Crusher(jaw-breaking for short, PE new jaw-breaking), widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry and many other departments. Jaw crusher can crush different kinds of materials which the compressive strength is not more than 320MPa, is the first choice of primary crushing equipment.
Main Features and Benefits of jaw crusher pe400x600 :
1)High capacity
2)High reliability
3)Adjustable for easy wear parts
4)Over-loading protection
5)Simple structure and easy to operate
6)Easy replacement of wear and spare parts
7)Energy-saving equipment: Stand-alone energy-saving 15% ~ 30%, the system energy-saving more than doubled
8)low noise and less dust
Working Principles of jaw crusher pe400x600 :
The motor drives pulley of jaw crusher, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process in jaw crusher. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.
Main Technical Data(parameters) of jaw crusher pe400x600 :
Type |
Max. feed size (mm) |
Adjustment scopes(mm) |
Capacity (t) |
Rotating speed of mainshaft (r/min) |
Motor power (kw) |
Overall dimension (mm) (L*W*H) |
Weight (KG) |
PEF150*250 |
125 |
10-40 |
1-3 |
285 |
7.5 |
922*745*933 |
700 |
PEF200*300 |
165 |
20-70 |
2-8 |
265 |
11 |
1056*1100*1120 |
800 |
PEF250*400 |
210 |
20-80 |
5-20 |
310 |
18.5 |
1108*1142*1392 |
3000 |
PEF400*600 |
340 |
40-90 |
10-40 |
275 |
30 |
1700*1732*1392 |
7200 |
PEF350*750 |
290 |
30-55 |
20-50 |
300 |
37 |
1900*1806*1808 |
8900 |
PEF500*750 |
425 |
50-100 |
34-68 |
275 |
55 |
2050*1860*2145 |
11320 |
PEF600*900 |
480 |
75-200 |
40-120 |
255 |
75 |
2792*2168*2250 |
17600 |
PEF750*1060 |
630 |
80-200 |
80-160 |
250 |
90 |
4180*2560*3070 |
30530 |
PEF900*1200 |
750 |
100-200 |
110-200 |
250 |
110 |
5200*2900*3500 |
50000 |
PEF1200*1500 |
1020 |
150-300 |
220-400 |
180 |
160 |
4200*3300*3500 |
106000 |
PEX150*750 |
125 |
10-40 |
5-15 |
300 |
15 |
1220*1480*1180 |
3600 |
PEX250*1000 |
210 |
15-55 |
10-32 |
300 |
37 |
1580*1992*1380 |
7350 |
PEX250*1200 |
210 |
15-60 |
12-38 |
300 |
37 |
1730*2192*1380 |
8700 |
PEX300*1300 |
250 |
20-90 |
16-65 |
300 |
55 |
1930*2400*1747 |
11600 |
If you want more details, pls do not hesitate to contact us. Your desire, we design.
