Hot selling high quality small sand maker1. Simple structure
2. low operating cost
3. High

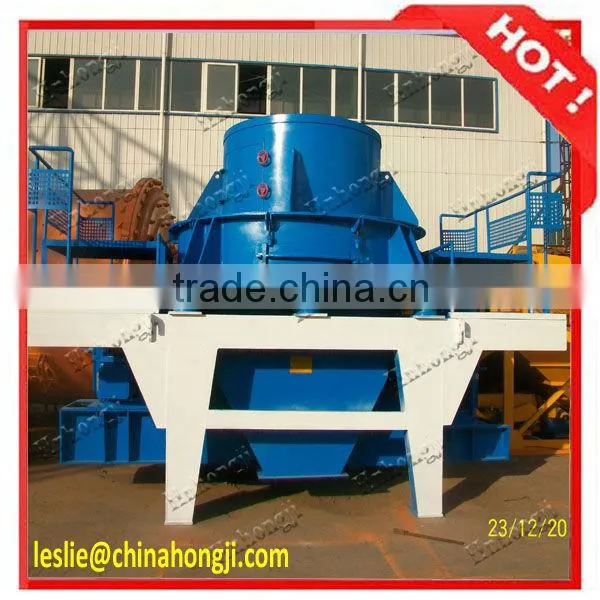

Hot selling high quality small sand maker
PCL vertical shaft impact crusher also know as sand making machine, is widely applied widely to the powder process of mineral product including metal and non metal ore,fireproof material,bauxite,diamond dust,glass raw materials,architectural materials,artificial sand and all kinds of metal ore materials,especially comparing with other types of crushing,it has advantages for the more and most hard.
Operating principle of small sand maker:
The materials fall into the crusher and be divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials fast bump and crush during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.
Features of small sand maker:
(1) Simple structure and low investment cost.
(2) High efficiency and low consumption.
(3) Scaleboard of the impeller is easy in maintenance and seldom damaged.
(4) With the function of fine crushing and coarse grinding.
(5) Slightly influenced by the moisture content of the material. The max moisture content is 8%.
(6) Suitable for crushing materials of middle hardness and high hardness.
(7) Cubic shaped finished products, high density of piling up and low iron pollution.
(8) Working noise < 75db, and less dust pollution.
The main technical data of small sand maker:
Model |
Impeller Speed (r/min) |
Max. Feeding Size (mm) |
Capacity (t/h) |
Power (kW)
|
Overall Dimension (L×W×H) (mm) |
PCL-600 |
2000-2600 |
26 |
8-50 |
30×2 |
2800×1550×2030 |
PCL-600B |
2000-2600 |
26 |
8-50 |
37×2 |
2800×1550×2030 |
PCL-750 |
1500-2500 |
35 |
25-55 |
45×2 |
3300×1800×2440 |
PCL-900 |
1300-1700 |
35 |
55-120 |
55×2 |
3750×2120×2660 |
PCL-900B |
1000-1450 |
40 |
60-150 |
90×2 |
3750×2120×2660 |
PCL-1050 |
1000-1700 |
40 |
100-160 |
110×2 |
4480×2450×2906 |
PCL-1250 |
950-1200 |
40 |
100-260 |
132×2 |
4563×2650×3176 |
PCL-1350 |
800-1200 |
60 |
160-360 |
200×2 |
5340×2940×3650 |
Your desire, we design. We are one of the most professional manufacturers of small sand maker.
