Specifications
Hot selling high quality stone sand maker1. Simple structure
2. low operating cost
3. High crushing ratio
Hot selling high quality stone sand maker

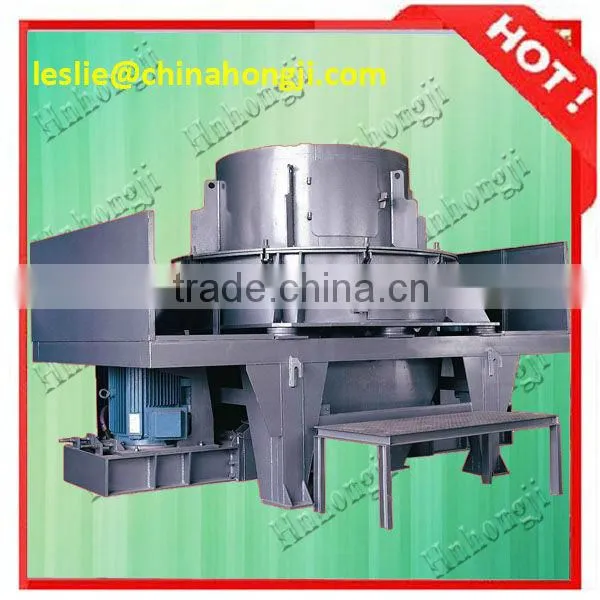

PCL vertical shaft impact crusher also know as sand making machine, is widely applied widely to the powder process of mineral product including metal and non metal ore,fireproof material,bauxite,diamond dust,glass raw materials,architectural materials,artificial sand and all kinds of metal ore materials,especially comparing with other types of crushing,it has advantages for the more and most hard.
Operating Principle of stone sand maker:
The materials fall into the crusher and be divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials fast bump and crush during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.
Features of stone sand maker:
1. Lightly affected by the moisture content of the material, Maximal water content up to about 8%
2. Simple structure, the striker breaker, lowest running cost
3. Unique installation of axis and advanced design of main shaft
4. Operate stability, high efficiency & saving energy, large crushing ratio
5. the internal air circulation of vortex chamber to little dust pollution
6. High reliability, tight security device to ensure equipment and personal safety
7. Diversity installed way, can be equipped on mobile crusher
8. with fine-crushing and coarse-grinding function
9. Low consumption of wearing parts. Most of wearing parts adopts domestic and foreign high-quality wear-resistant material, with long service life; few of wearing parts used special hard wear-resistant material, with small volume, light weight, easy to replaces.
10. Product in cubic shape, density packing, light iron pollution
The main technical data of stone sand maker:
Model |
Impeller Speed (r/min) |
Max. Feeding Size (mm) |
Capacity (t/h) |
Power (kW)
|
Overall Dimension (L×W×H) (mm) |
PCL-600 |
2000-2600 |
26 |
8-50 |
30×2 |
2800×1550×2030 |
PCL-600B |
2000-2600 |
26 |
8-50 |
37×2 |
2800×1550×2030 |
PCL-750 |
1500-2500 |
35 |
25-55 |
45×2 |
3300×1800×2440 |
PCL-900 |
1300-1700 |
35 |
55-120 |
55×2 |
3750×2120×2660 |
PCL-900B |
1000-1450 |
40 |
60-150 |
90×2 |
3750×2120×2660 |
PCL-1050 |
1000-1700 |
40 |
100-160 |
110×2 |
4480×2450×2906 |
PCL-1250 |
950-1200 |
40 |
100-260 |
132×2 |
4563×2650×3176 |
PCL-1350 |
800-1200 |
60 |
160-360 |
200×2 |
5340×2940×3650 |
Your desire, we design. We are one of the most professional manufacturers of stone sand maker.
