Help CenterPlastic Bags Sealing Machine
Related Products
Specifications
plastic bags sealing machineconstant temperature controlling syestem
light weight, easy to operate
high capacity
plastic bags sealing machine
Product information:

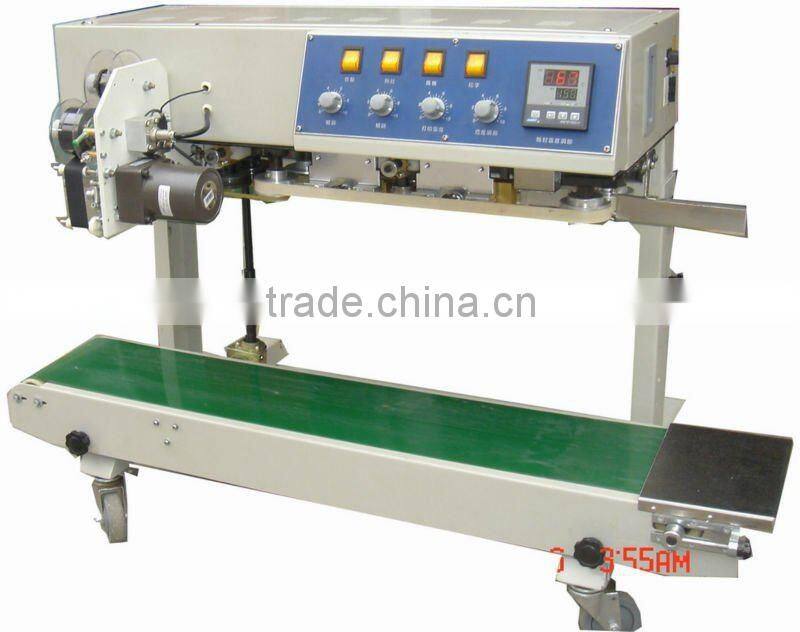

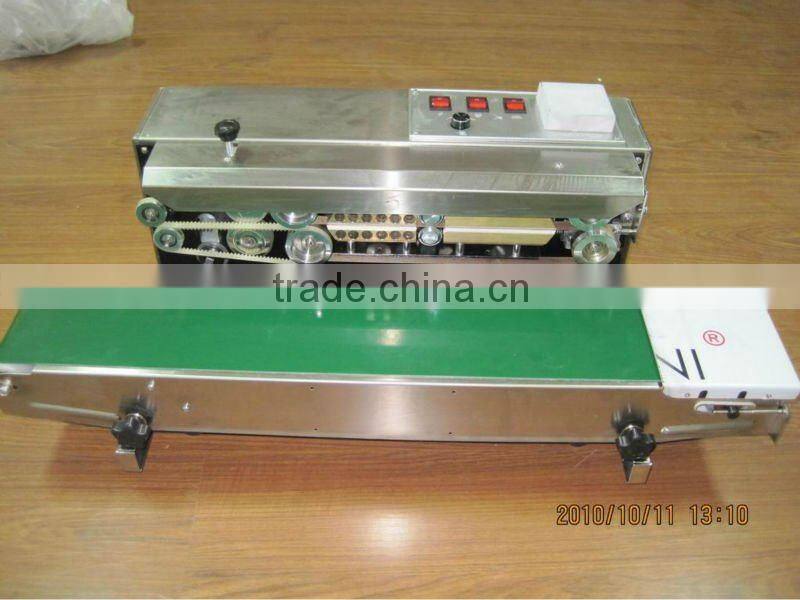

This machine is used to seal small bag and it applys electronic constant temperature controlling system and stepless speed regulation. It can seal plastic films of various materials. This machine adopts steel-roller coding device or ink-roller coding, which can print the desired date simultaneously with sealing. With the characters clear and conspicuous, the colors are selectable, not easy to erase and changeless. Coding is instant printing and instant dry. It is convenient to change date letters
Technical parameters:
|
HYPH-FK1 |
HYPH-FK2 |
|
Voltage (V/Hz) |
AC 220/50 110/60 |
||
Motor power (W) |
50 |
||
Galvanother my power(W) |
300×2 |
||
Sealing speed(m/min) |
0-12 (0-16) |
||
Sealing width(mm) |
8 -10 |
||
Temperature range(°C) |
0-300 |
||
Coding type |
Steel roller coding(can choose) |
||
Distance from sealing center to conveyor(mm) |
10-40 |
150-270 |
|
Conveyor size (L×W)(mm) |
840×153 |
||
Maximum conveyor loading for single bag(kg) |
≤1 |
||
Overall conveyor loading(kg) |
≤3 |
||
Dimension (L×W×H)(mm) |
840×380×320 |
840×380×550 |
|
Net weight (kg) |
32 |
37 |
|
More pictures:
