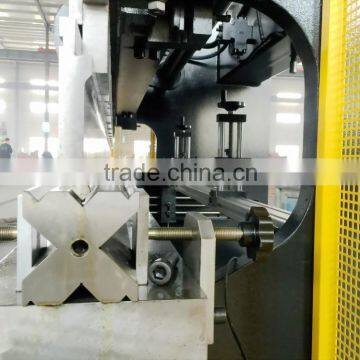

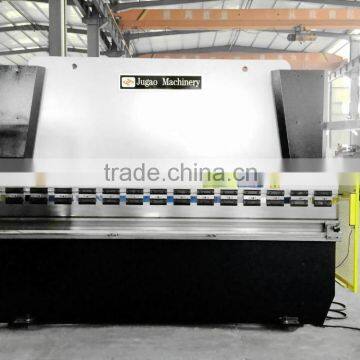

Help CenterHighest Quality 160ton 4000mm WC67K Delem DA Series CNC Alloy Steel Plate Bend Machine
Related Products
-
Advanced Control WC67K Hrydraulic Cnc Iron Steel Bending MachineUS$ 4,000 - 6,000MOQ: 1 Set -
Chinese Supplier Horizontal Profile Bending Machine With Low PriceUS$ 3,000 - 4,000MOQ: 1 Set
-
Hydraulic Power Roller Universal Threeroll Bending Machine FromUS$ 3,000 - 4,000MOQ: 1 Set
-
Sheet Bender Hydraulic Bending Machine Folder Pan Brake Machinery Steel Stainless Sheet Metal Folding Machine Most PopularUS$ 6,300 - 6,500MOQ: 1 Set
-
JUGAO Brand Wc67k-160/6000 Bending Machine Steel Sheet Press Brake Cnc With Good Service Quality ChoiceUS$ 5,000 - 55,000MOQ: 1 Set
We can talk on line now. Please click me.
cnc machine rolling hydraulic bending machine steel bending machine profile rolling machine hydraulic bender
cnc profile rolling machine hydraulic bender steel pipe rolling machine stainless steel rolling pipe bending machine

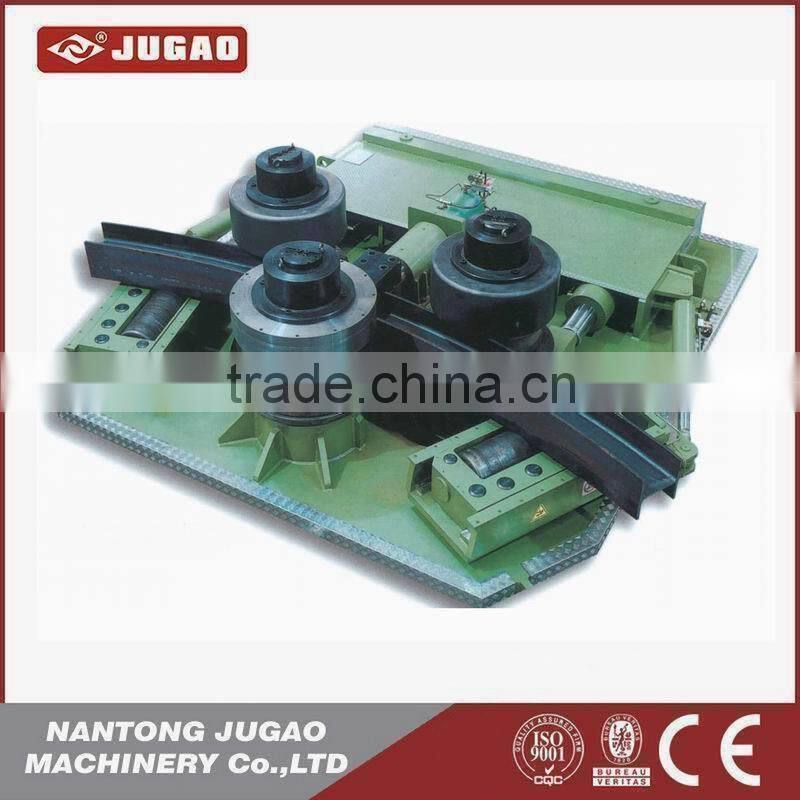

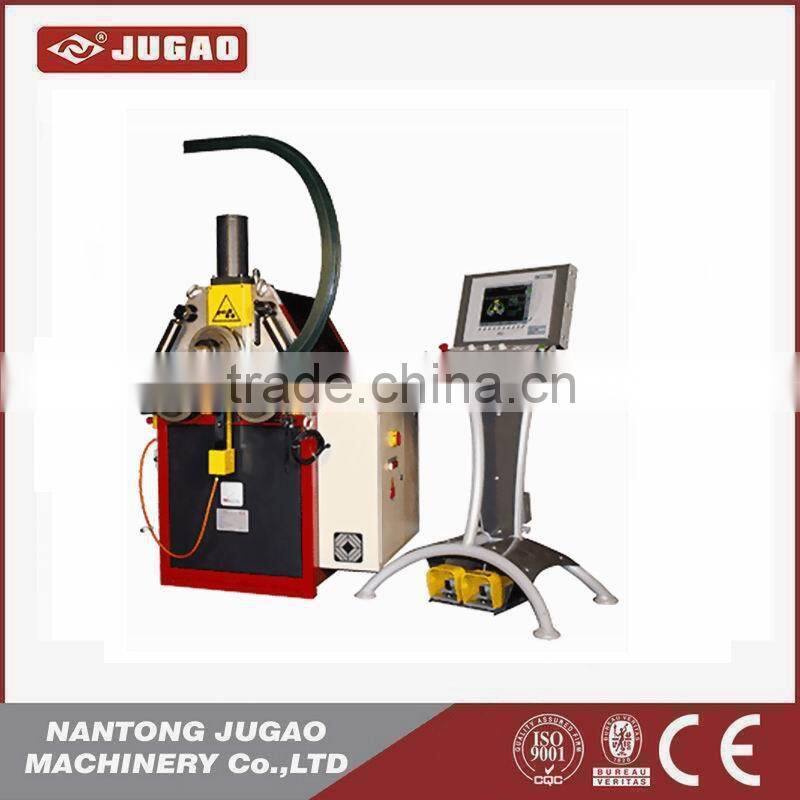

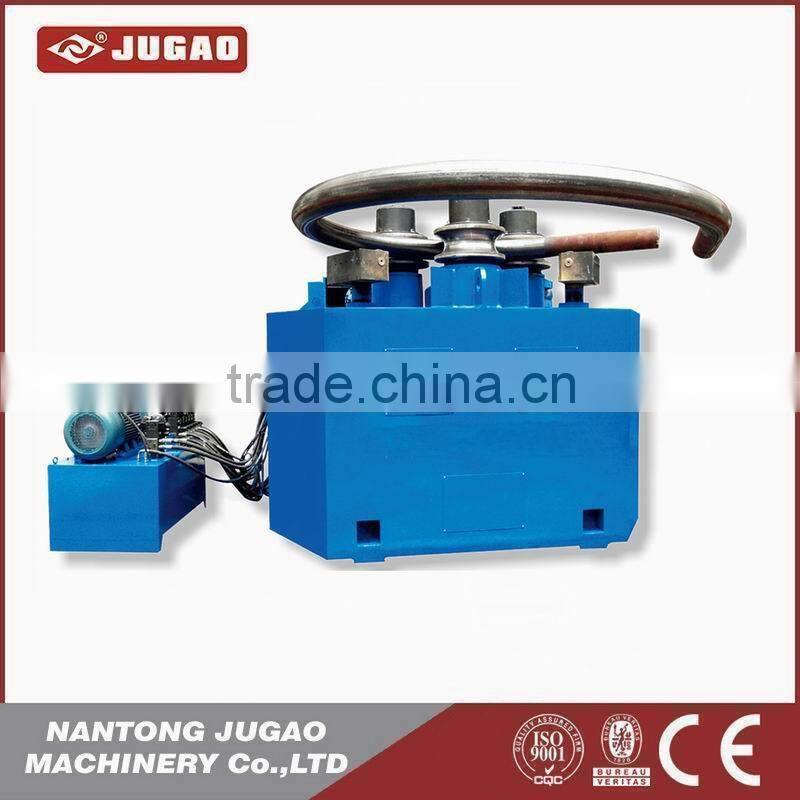

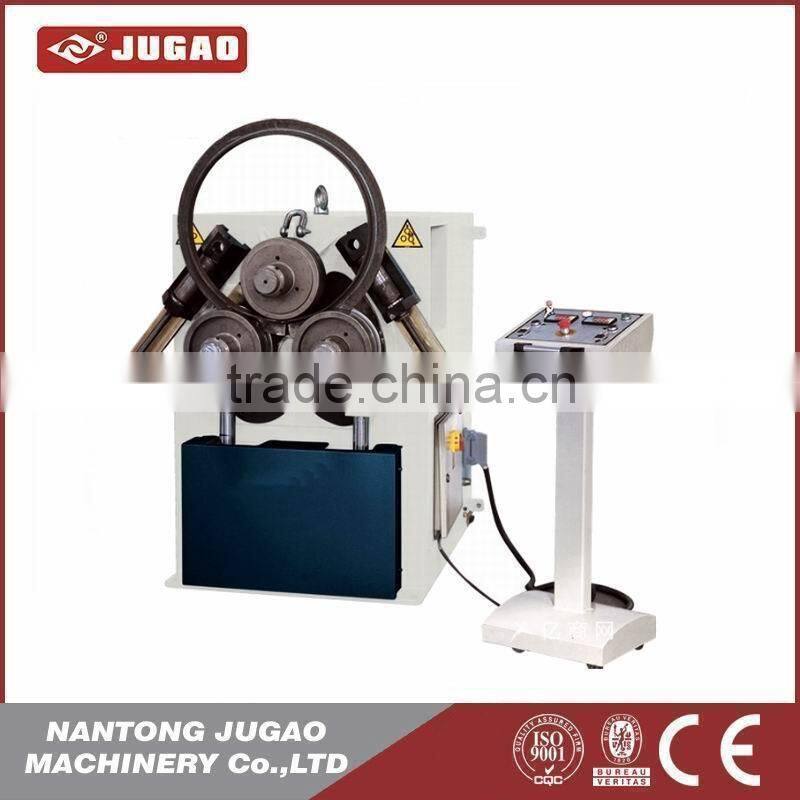

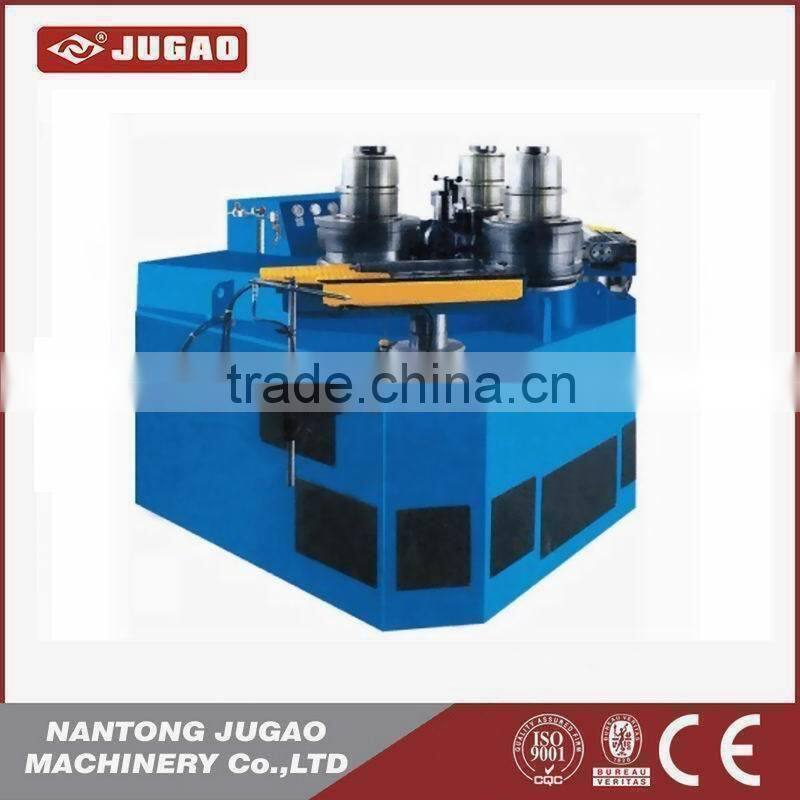

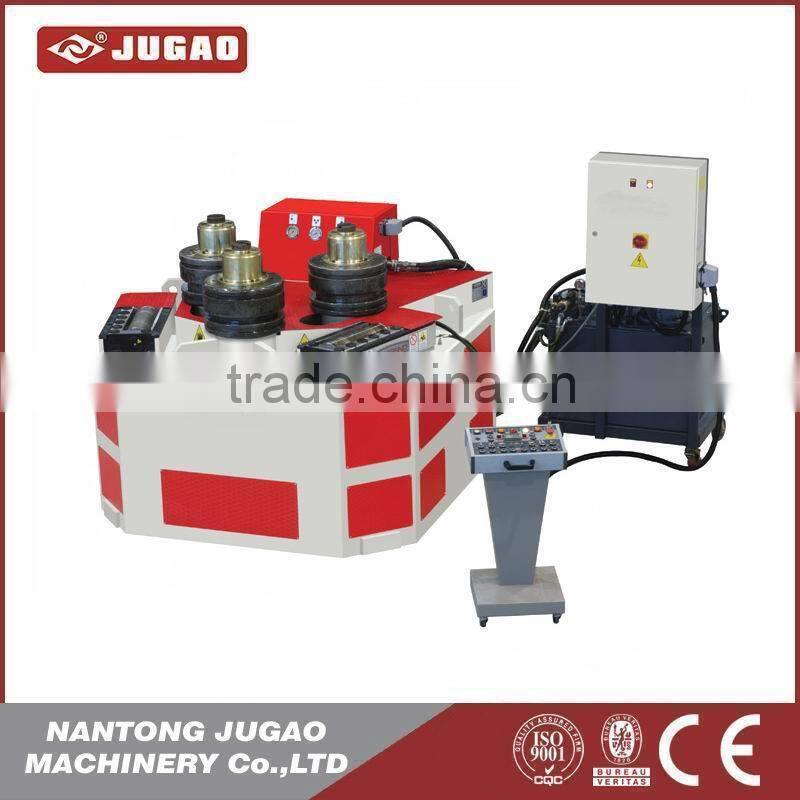

W24Y Hydraulic stainless steel pipes tubes and profile and section rolling bending machine
Features
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Hydraulic lateral angle guide rolls
Three rollers are powered
European quality
Can be used in both vertical and horizontal position
Colour:blue and black
Perfectly complete pre-bending,rolled-up.Working principle: two down rollers as main driving roller.Triple geared drive,low voltage driver,low current consumption and high efficiency.The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.NC syterm,advanced and compact structure with full function.The machine has six oil tanks(two big oil tanks,four small oil tanks),and the head is vertically.The yield strength bended profile with 320Mpa (Max.)
Both Horizontal and Vertical Working Positions.Double pinch hydraulic forming rolls.Hardened precision threadedx shafts.Dual adjustable lateral guidesRolls are driven via 3 separate hydraulic motorLower rolls hydraulic moveable up and down.
Perfectly complete pre-bending,rolled-up,roll calibrate.Working principle: two down rollers as main driving roller,or all three rollers as main driving roller,with upper roller fixed and two down rollers do up-and-town movement around one fixed center.Triple geared drive,low voltage driver,low current consumption and high efficiency.Well hydraulic control,displacement liquid-crystal display with accuracy+_0.1mm.The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.Advanced and compact structure with full function.The machine has six oil tanks(two big oil tanks,four small oil tanks),and the head is vertically.The yield strength bended profile with 250Mpa (Max.).Full function,complicated structure,high precision and very stronger.
| Digital Display Profile Bending Machine- W24S Serial | ||||||||
| Model&spec. | W24S-6 | W24S-16 | W24S-30 | W24S-45 | W24S-75 | W24S-100 | W24S-140 | |
| Max bending modulus of section (cm3) | 6 | 16 | 30 | 45 | 75 | 100 | 140 | |
| Bending speed(m/min) | 5.5 | 5.5 | 5.5 | 5.5 | 5 | 5 | 5 | |
| yield limit of material (MPa) | 245 | 245 | 245 | 245 | 245 | 245 | 245 | |
| inward bending of angle steel | The max cross section (mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 | 150×16 |
| The min bending diameter (mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 2400 | |
| The min cross section (mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 40×5 | 50×5 | |
| The min bending diameter (mm) | 400 | 550 | 560 | 600 | 600 | 720 | 1000 | |
| outward bending of angle steel | The max cross section (mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 | 150×16 |
| The min bending diameter (mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | 2200 | |
| The min cross section (mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 45×5 | 50×5 | |
| The min bending diameter (mm) | 400 | 550 | 500 | 600 | 700 | 760 | 400 | |
| outward bending of channel steel | channel steel model | 8 | 12 | 16 | 20 | 25 | 28 | 30 |
| The min bending diameter (mm) | 600 | 800 | 800 | 1000 | 1100 | 1100 | 1200 | |
| inward bending of channel steel | channel steel model | 8 | 12 | 16 | 20 | 25 | 28 | 30 |
| The min bending radius (mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | 1700 | |
| plane bending of flat steel | The max cross section (mm) | 100×18 | 150×25 | 180×25 | 200×30 | 220×40 | 250×40 | 280×50 |
| The min bending diameter (mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | |
| vertical bending of flat steel | The max cross section (mm) | 50×12 | 75×16 | 90×20 | 100×25 | 110×40 | 120×40 | 150×40 |
| The min bending diameter (mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | 1500 | |
| bending of round pipe | The max cross section (mm) | 42×4 | 76×4.5 | 89×5 | 89×8 | 114×5 | 159×5 | 168×6 |
| The min bending diameter (mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | 2000 | |
| bending of round bar | The max cross section (mm) | 38 | 52 | 62 | 75 | 85 | 90 | 100 |
| The min bending diameter (mm) | 450 | 600 | 600 | 800 | 100 | 1100 | 1200 | |
| bending of square pipe | The max cross section (mm) | 45×3 | 60×4 | 70×4 | 80×6 | 90×8 | 100×10 | 125×10 |
| The min bending diameter (mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 | 2500 | |
|
|
|
|
|
|
|
|
|
|
|
