JUGAO Brand Wc67k-160/6000 Bending Machine Steel Sheet Press Brake Cnc With Good Service Quality Choice
US$ 5,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JUGAO, JUGAO
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Global Exported WC67K Sreies CNC Plate Aluminum Brake Press With Delem DA52S SystemUS$ 4,000 - 6,000MOQ: 1 Set -
Highest Quality 160ton 4000mm WC67K Delem DA Series CNC Alloy Steel Plate BenderUS$ 4,000 - 6,000MOQ: 1 Set
-
Highest Quality 160ton 4000mm WC67K Delem DA Series CNC Alloy Steel Plate Bend MachineUS$ 4,000 - 6,000MOQ: 1 Set
-
Advanced Control WC67K Hrydraulic Cnc Iron Steel Bending MachineUS$ 4,000 - 6,000MOQ: 1 Set
-
Chinese Supplier Horizontal Profile Bending Machine With Low PriceUS$ 3,000 - 4,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
JUGAO, JUGAO
Model Number
WC67K
Machine Type
Roller-Bending Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Carbon Steel
Power
Cnc
Automation
Automatic
Extra Services
End Forming
Certification
Other, CE, CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

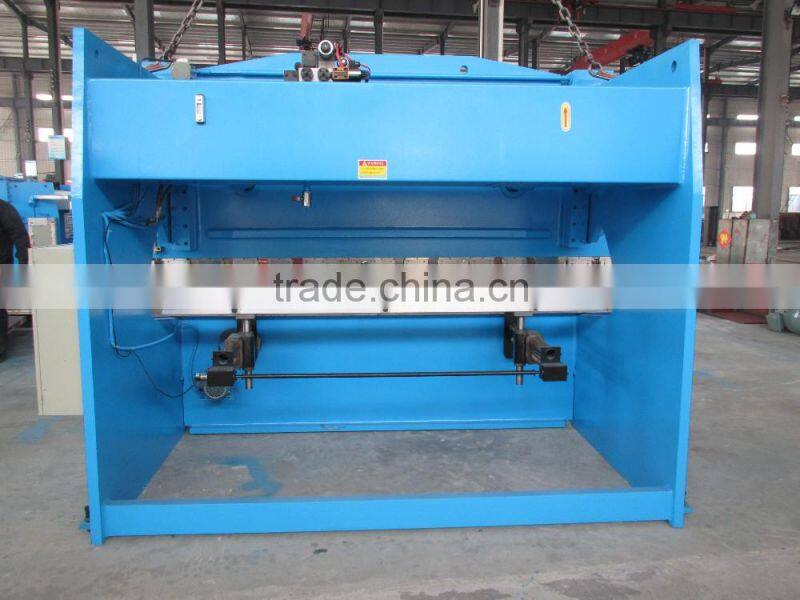

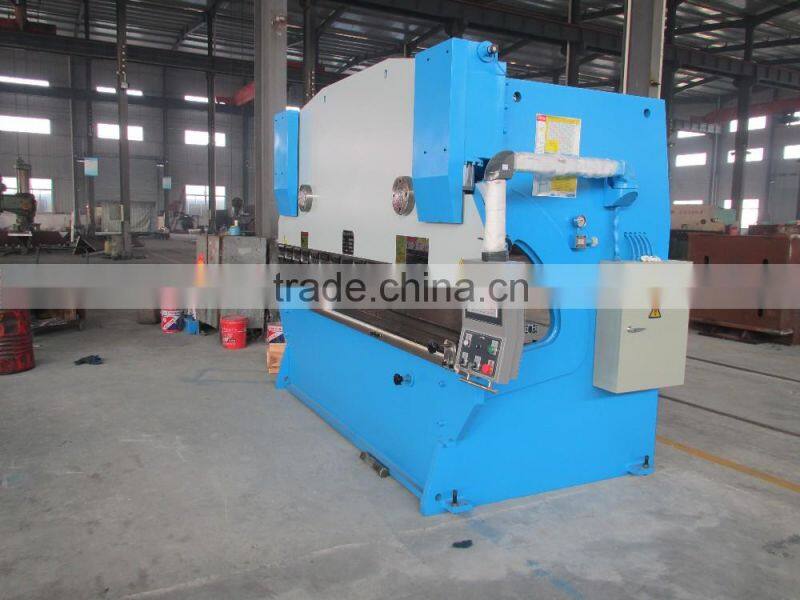

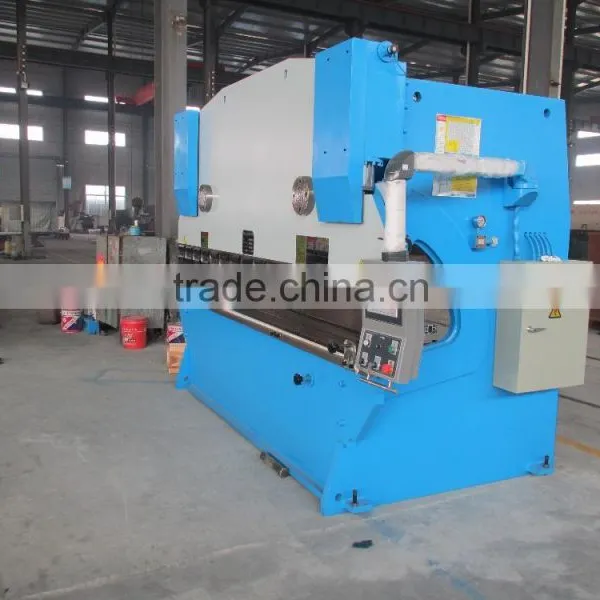

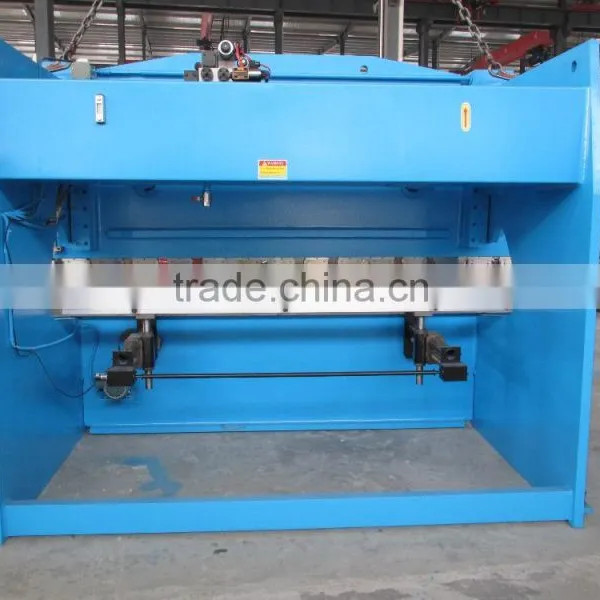

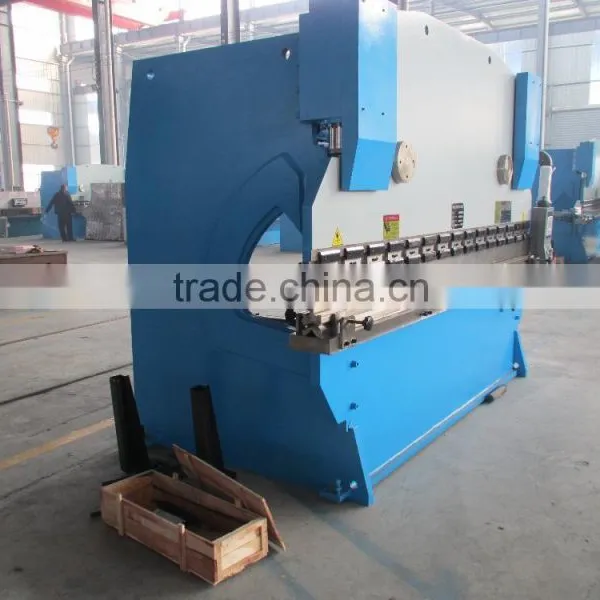

HYDRAULIC PLATE BENDING MACHINERY WC67Y-160TONX3200
Features

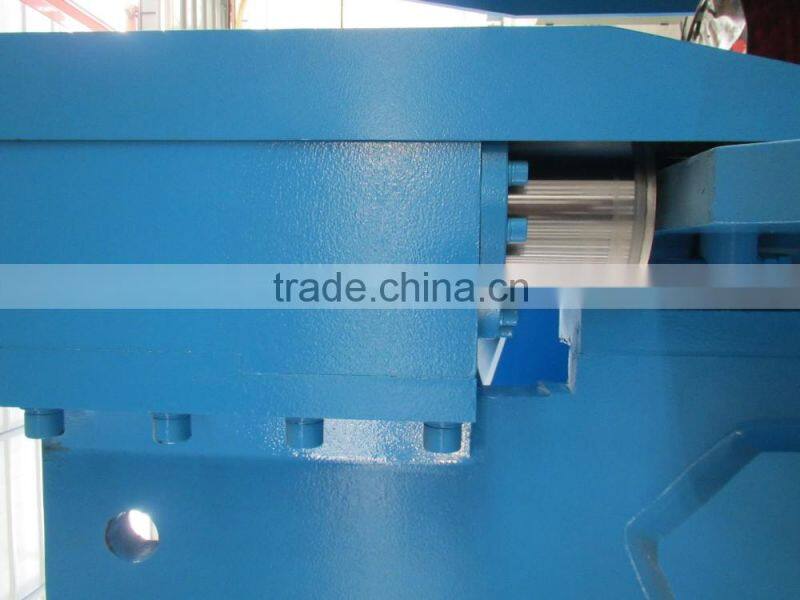

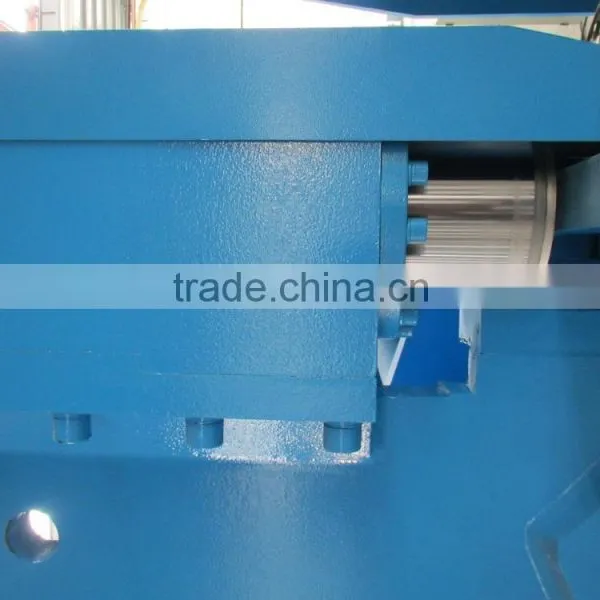

1. Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by ENC-18 Programmable digital controller assuring accurate repeatability.Parallelism is ensured by torsion bar that can be easily adjusted by clutch system. 2. New style Digit type manual crowning conveniently mounted on the right side of the bed enabling operator to adjust simply by rotating the dial whilst the analogue digit system indicates the amount of movement 3. Segmented heavy duty 86° offset top punch is segmented for return bend clearance and incorporates a safety key to stop punch dropping.
| No | Model |
Pressure KN |
Bending Leng (mm) |
Columns Distance (mm) |
Open Height (mm) |
Throat Depth (mm) |
Slide Stroke (mm) |
Motor Power (kw) |
Machine Size (mm) |
| 1 | 40T/2500 | 400 | 2500 | 1900 | 210 | 200 | 110 | 4 | 2600x1270x1980 |
| 2 | 63T/2500 | 630 | 2500 | 1900 | 235 | 250 | 120 | 5.5 | 2600x1360x2050 |
| 3 | 63T/3200 | 630 | 3200 | 2600 | 235 | 250 | 120 | 5.5 | 3300x1360x2050 |
| 4 | 80T/2500 | 800 | 2500 | 1900 | 320 | 320 | 150 | 7.5 | 2600x1400x2380 |
| 5 | 80T/3200 | 800 | 3200 | 2600 | 320 | 320 | 150 | 7.5 | 3300x1400x2380 |
| 6 | 80T/4000 | 800 | 4000 | 3100 | 320 | 320 | 150 | 7.5 | 4100x1400x2380 |
| 7 | 100T/2500 | 1000 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
| 8 | 100T/3200 | 1000 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
| 9 | 100T/4000 | 1000 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
| 10 | 100T/5000 | 1000 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
| 11 | 125T/2500 | 1250 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
| 12 | 125T/3200 | 1250 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
| 13 | 125T/4000 | 1250 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
| 14 | 125T/5000 | 1250 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
| 15 | 160T/2500 | 1600 | 2500 | 1900 | 400 | 320 | 200 | 11 | 2600x1550x2580 |
| 16 | 160T/3200 | 1600 | 3200 | 2600 | 400 | 320 | 200 | 11 | 3300x1550x2580 |
| 17 | 160T/4000 | 1600 | 4000 | 3100 | 400 | 320 | 200 | 11 | 4100x1550x2580 |
| 18 | 160T/5000 | 1600 | 5000 | 4100 | 400 | 320 | 200 | 11 | 5100x1550x2580 |
| 19 | 160T/6000 | 1600 | 6000 | 4800 | 400 | 320 | 200 | 11 | 6100x1550x2580 |
| 20 | 200T/2500 | 2000 | 2500 | 1900 | 435 | 320 | 200 | 15 | 2600x1650x2900 |
| 21 | 200T/3200 | 2000 | 3200 | 2600 | 435 | 320 | 200 | 15 | 3300x1650x2900 |
| 22 | 200T/4000 | 2000 | 4000 | 3100 | 435 | 320 | 200 | 15 | 4100x1650x2900 |
| 23 | 200T/5000 | 2000 | 5000 | 4100 | 435 | 320 | 200 | 15 | 5100x1650x2900 |
| 24 | 200T/6000 | 2000 | 6000 | 4800 | 435 | 320 | 200 | 15 | 6100x1650x2900 |
| 25 | 250T/2500 | 2500 | 2500 | 1900 | 435 | 320 | 200 | 18.5 | 2600x1750x3070 |
| 26 | 250T/3200 | 2500 | 3200 | 2600 | 435 | 320 | 200 | 18.5 | 3300x1750x3070 |
|
|
|
|
