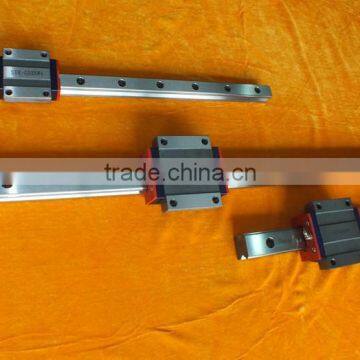

Linear guide rail and slider/carriages, low price linear guide rail
- 400000 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- driver/Linear motor/DD motor
- IMTEK-Miniature Linear guides TGN5/7/9/12/15 C and H
- Roller Linear Guides: High rigidity, High precision, Flexible MOQ, Compatible
- High Precision 8mm Diameter Pitch 2mm 0802 Ball Screw
- 8mm Diameter KSS Miniature Pitch 1mm 0801 Ball Screw
- 6x1 Miniature 6mm Diameter Pitch 1mm 0601 Ball Screw
Product Details
Guide Width or Diameter: | 10mm-65mm | Guide Length: | 100mm-4000mm | Model Number: | SER-GD35WA |
Place of Origin: | Shandong, China | Brand Name: | SERGD |
Product Description
Specifications
Linear Guide
1.Sair SER-GD Series linear guide
2.Accurancy : Grade 1,2,3,4
3.Preload code : Z0,Z1,Z2
4.In stock
5. Performance: antifriction, interchangeable
6. Material: bearing steel GCr15
7. Rigidity: 58-62
8. Application: CNC or automatic machinery
9. Length: can be cut to your requirement
10. Match: could match with ball screw in one machinery
SER-GD Series linear guide advantages :
A. High rigidity and high load
B.Smooth running, low noise and non-pollution
C.High accurancy & easy setting up
D.Trial order is accpetable
Product Features:
A. Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system;
B. The driving power is small, which reduces the energy consumption;
C. High positioning accuracy and repeat positioning accuracy;
D. By increasing the preload, the rigidity is greatly enhanced;
E. Using paired guide rais, it has the effect of homogenizing error;
F. Can withstand the load from up and down or so;
G. The end and the side can be manual or automatic lubricated through oil cup;
H. It has simplified the design and manufacture of mechanical structure, therefore reduced the manufacturing cost.
Installment and use:
Linear rolling guide vice is precision part, Please be gentle with, avoid knocking against so as not to influence the precision of the guide rail pair. If there is some difficulty in installation so that we need to remove the slider,auxiliary guide can be provided by our company. The auxiliary guide is an assembly auxiliary tool, whose actual size is much smaller than the guide. If necessary, we could join the end head of the guide rail and the auxiliary guide rail. We could drag the slide from the guide onto the auxiliary guide rail. When the rail is installed, then we could push the slider from the auxiliary guide onto the guide rail,and ensure that the reference direction must be consistent between slider and guide.
Our Workshop
Our Company together with fatory
Our Products:
Rolling Ball Assembly
Our Equipments
Exhibition pictures
Qualification Certificates
Company | Shandong Sair Mechanical Guide Co., Ltd |
Trade Manager | sdsaier |
Skype | helengao1231 |
Mobile | 86-15066150371 |
Tel | 86-635-3672386 86-635-3672389 |
Fax | 86-635-6372899 |
Address | Western Part of Linzhai Industrial Park, Renhe Zone, Gaotang County,Shandong Province,China |
