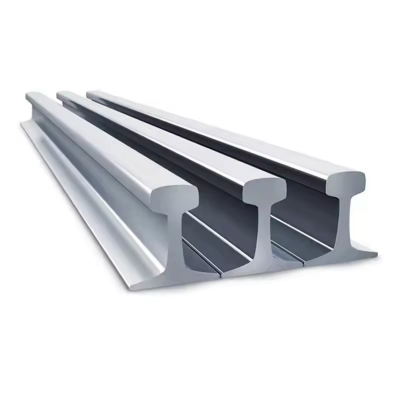

Help CenterDIN 536 A45 Crane Rail DIN 536 A45 A55 A65 A75 A100 A120 Railway Steel
Product Spotlights
Related Products
-
IHHS A55 R350HT U71MnG U75VG 11 33 60 Kg/m Steel Railway RailUS$ 510 - 530MOQ: 10 Tons -
Non-Alloy Steel C-Channel (Q234/Q345 Grade) ASTM Standard For Industry Guide Rails-Guolian SteelUS$ 510 - 530MOQ: 10 Tons
-
Heavy Duty Steel Railway Rails 50kg 60kg UIC Standard Rail Track for ConstructionUS$ 450 - 500MOQ: 10 Tons
-
Factory Directly Supply Arema Standard 6 Meters 12 Meters 25 Meters 132lb 132RE Steel Railway RailUS$ 450 - 500MOQ: 10 Tons
-
High Quality Railway Track Rail GB Standard 30kg Steel Rail P30 Light RailUS$ 450 - 500MOQ: 10 Tons
R350HT U71MnG U75VG 11 33 60 kg/m Steel Railway Rail. Based on their application, modern steel rails can be divided into three categories:
1. Light rails for mining railways, available in eight types: 8 kg/m, 9 kg/m, 12 kg/m, 15 kg/m, 18 kg/m, 22 kg/m, 24 kg/m, and 30 kg/m.
2. Heavy rails for passenger and freight railways, mainly available in five types: 38 kg/m, 43 kg/m, 50 kg/m, 60 kg/m, and 75 kg/m. There are also turnout rails for changing tracks, available in 50AT and 60AT versions.
3. Crane rails for cranes, currently available in four specifications: QU70, QU80, QU100, and QU120.
Steel rails can be categorized into three types based on the materials used: high-quality carbon rails, alloy rails, and fully heat-treated rails.SS、IHHS U71Mn、U75V、U71MnG、U75VG、U76CrRE、U20Mn、U71Mn-HL、U75V-HL、U74、PD2、PD3、BNbRE、U71Cu、U70MnSi、U71MnSiCu、55Q、Q235B、Q345B、50Mn、60Si2Mn，A50, A55, A65, A75, A100.
1. High-quality carbon rails primarily utilize carbon and manganese to enhance strength and toughness, with sulfur and phosphorus content controlled below 0.030%. Major grades include U74 and U71MN.
2. Alloy rails are based on carbon rails, with the addition of appropriate alloying elements such as V, Ti, CCr, and Mo to improve strength and toughness. In my country, alloy rails include RE-Nb, RE-Cr, and V-Ti rails, with major grades including U76RENB, U75V, and U76CrRE.
3. Fully heat-treated rails use the above two types of steel rails as their base, employing a heat treatment process involving heating and controlled cooling to improve their internal microstructure, refine grains, and form a fine pearlite structure, thus achieving high strength and high toughness.
Based on their mechanical properties, rails can be divided into three categories: the first category is ordinary rails, which are rails with a tensile strength of not less than 100 MPa; the second category is high-strength rails, which are rails with a tensile strength of not less than 900 MPa; and the third category is wear-resistant rails, which are rails with a tensile strength greater than 980 MPa.
| Size | A | B | b | tw | A(cm2) | （㎏/m) | y1(㎝) | y2(㎝) | Ix(cm4) | W1=Ix/y1(cm3) | W2=Ix/y2(cm3) | Iy(cm4) | Wy(cm3) | L(m) |
| 5kg/m | 50 | 44 | 22 | 4.5 | 6.41 | 5.03 | 2.22 | 2.78 | 25.2 | 11.4 | 9.1 | 5.35 | 2.43 | 5～10 |
| 8kg/m | 65 | 54 | 25 | 7 | 10.76 | 8.42 | 2.89 | 3.61 | 59.3 | 20.6 | 16.4 | 9.62 | 3.56 | 5～10 |
| 11kg/m | 80.5 | 66 | 32 | 7 | 14.31 | 11.2 | 3.96 | 4.09 | 125 | 31.7 | 30.5 | 15.1 | 4.58 | 6～10 |
| 15kg/m | 91 | 76 | 37 | 7 | 18.8 | 14.72 | 4.35 | 4.75 | 222 | 51 | 46.6 | 30.2 | 7.94 | 6～12 |
| 18kg/m | 90 | 80 | 40 | 10 | 23.07 | 18.06 | 4.29 | 4.71 | 240 | 56.1 | 51 | 41.1 | 10.3 | 7～12 |
| 24kg/m | 107 | 92 | 51 | 10.9 | 31.24 | 24.95 | 5.31 | 5.39 | 486 | 91.6 | 90.1 | 80.5 | 17.49 | 9～12 |
| 33kg/m | 120 | 110 | 60 | 12.5 | 42.5 | 33.29 | 5.76 | 6.24 | 821.9 | 142.6 | 131.8 | 165.1 | 30 | 12.5 |
| 38kg/m | 134 | 114 | 68 | 13 | 49.5 | 38.73 | 6.67 | 6.73 | 1204.4 | 180.6 | 178.9 | 209.3 | 36.7 | 12.5;25 |
| 43kg/m | 140 | 114 | 70 | 14.5 | 57 | 44.65 | 6.9 | 7.1 | 1489 | 217.3 | 208.3 | 260 | 45 | 12.5;25 |
| 50kg/m | 152 | 132 | 70 | 15.5 | 65.8 | 51.51 | 7.1 | 8.1 | 2037 | 287.2 | 251.3 | 377 | 57.1 | 12.5;25 |
| QU70 | 120 | 120 | 70 | 28 | 67.3 | 52.8 | 5.93 | 6.07 | 1082 | 182.5 | 178.1 | 327.2 | 54.53 | 9.0;9.5 |
| QU80 | 130 | 130 | 80 | 32 | 81.13 | 63.69 | 6.43 | 6.57 | 1547.4 | 240.7 | 235.5 | 482.4 | 74.21 | 10;10.5 |
| QU100 | 150 | 150 | 100 | 38 | 113.32 | 88.96 | 7.6 | 7.4 | 2864.7 | 376.9 | 387.1 | 941 | 125.45 | 11;11.5 |
| QU120 | 170 | 170 | 120 | 44 | 150.44 | 118.1 | 8.43 | 8.57 | 4923.8 | 584.1 | 574.5 | 1694.8 | 199.39 | 12;12.5 |
