Linear Motion Guide 35mm NAL

Linear Motion Guide 35mm NAL thumbnail-1
Linear Motion Guide 35mm NAL thumbnail-2
Linear Motion Guide 35mm NAL photo-1
Linear Motion Guide 35mm NAL photo-2
US$ 10 - 80 MOQ: 1 Set
Key Specifications
Get Latest Price
Guide Width or Diameter:
10mm-65mm
Guide Length:
100mm-4000mm
Model Number:
SER-GD35NAL
Contact Supplier Request Quote Chat Now
Shandong Sair Mechanical Guide Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Guide Width or Diameter 10mm-65mm
Guide Length 100mm-4000mm
Model Number SER-GD35NAL
Place of Origin Shandong, China
Brand Name SERGD

Specifications

Linear Guide
1.Sair SER-GD Series linear guide
2.Accurancy : Grade 1,2,3,4

3.Preload code : Z0,Z1,Z2
4.In stock

5. Performance: antifriction, interchangeable

6. Material: bearing steel GCr15

7. Rigidity: 58-62

8. Application: CNC or automatic machinery

9. Length: can be cut to your requirement

10. Match: could match with ball screw in one machinery





SER-GD Series linear guide advantages :



A. High rigidity and high load



B.Smooth running, low noise and non-pollution



C.High accurancy & easy setting up



D.Trial order is accpetable





Model



 In order to acquaint you with our business lines, we list our product series as follows:



SER-GD15WA      SER-GD15WB      SER-GD15NA



SER-GD20WA      SER-GD20WB      SER-GD20NA



SER-GD20WAL    SER-GD20WBL    SER-GD20NAL



SER-GD25WA      SER-GD25WB      SER-GD25NA



SER-GD25WAL    SER-GD25WBL    SER-GD25NAL



SER-GD30WA      SER-GD30WB      SER-GD30NA



SER-GD30WAL    SER-GD30WBL    SER-GD30NAL



SER-GD35WA      SER-GD35WB      SER-GD35NA



SER-GD35WAL    SER-GD35WBL    SER-GD35NAL



SER-GD45WA      SER-GD45WB      SER-GD45NA



SER-GD45WAL    SER-GD45WBL    SER-GD45NAL



SER-GD55WA      SER-GD55WB      SER-GD55NA



SER-GD55WAL    SER-GD55WBL    SER-GD55NAL



SER-GD65WA      SER-GD65WB      SER-GD65NA



SER-GD65WAL    SER-GD65WBL    SER-GD65NAL



SER-GD85WA      SER-GD85WB      SER-GD85NA



SER-GD85WAL    SER-GD85WBL    SER-GD85NAL



(SER stands for our company rolling components code, GD stands for four direction equal load rolling guide vice, 15~85 stands for the nominal size, W stands for the width form of the slider is Wide, N stands for Narrow, A stands for the connection form of the slider is screwed hole, B stands for the unthreaded hole, L stands for lengthening slider.)



Linear guide belongs to high tech and high precision product, and it is widely used in CNC machine tool, conveying machinery, precision measuring instruments, the industrial automation machinery, electronic semiconductor machinery, mechanical arm, packaging machinery, automobile manufacturing and other fields.





Product Features:



A. Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system;



B. The driving power is small, which reduces the energy consumption;



C.  High positioning accuracy and repeat positioning accuracy;



D. By increasing the preload, the rigidity is greatly enhanced;



E. Using paired guide rais,  it has the effect of homogenizing error;



F. Can withstand the load from up and down or so;



G. The end and the side can be manual or automatic lubricated through oil cup;



H.  It has simplified the design and manufacture of mechanical structure, therefore reduced the manufacturing cost.





 Installment and use:



Linear rolling guide vice is precision part, Please be gentle with, avoid knocking against so as not to influence the precision of the guide rail pair. If there is some difficulty in installation so that we need to remove the slider,auxiliary guide can be provided by our company. The auxiliary guide is an assembly auxiliary tool, whose actual size is much smaller than the guide. If necessary, we could join the end head of the guide rail and the auxiliary guide rail. We could drag the slide from the guide onto the auxiliary guide rail. When the rail is installed, then we could push the slider from the auxiliary guide onto the guide rail,and ensure that the reference direction must be consistent between slider and guide.

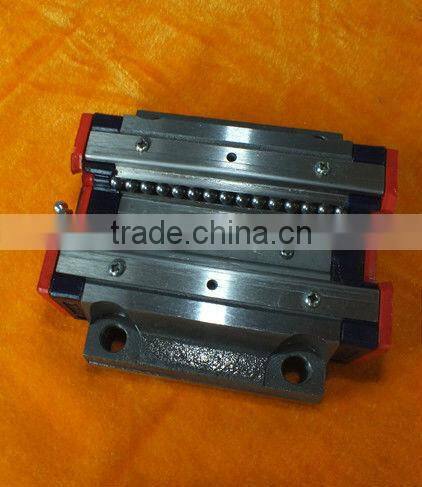

linear motion guide 35mm NAL

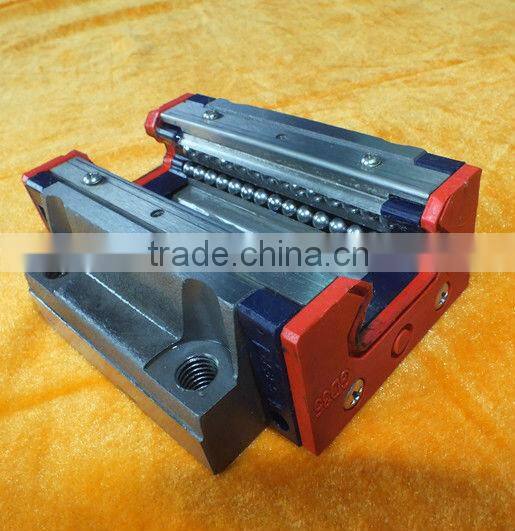

linear motion guide 35mm NAL

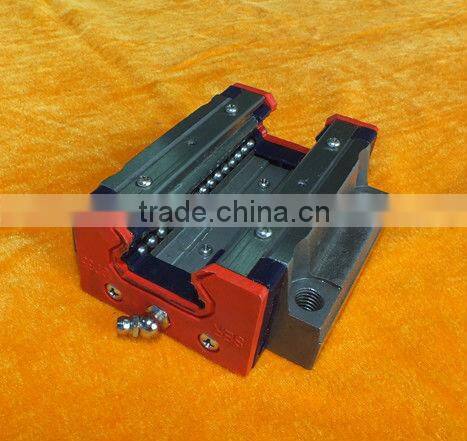

linear motion guide 35mm NAL







Our Workshop

linear motion guide 35mm NAL







Our Company together with fatory



linear motion guide 35mm NAL









Our Products:

linear motion guide 35mm NAL





 linear motion guide 35mm NALlinear motion guide 35mm NALlinear motion guide 35mm NAL



Product Assembly













 Qualification Certificates

linear motion guide 35mm NAL
