Home > Products > Voltage and Continunity Testers > Resistance tester UNI-T UT15C

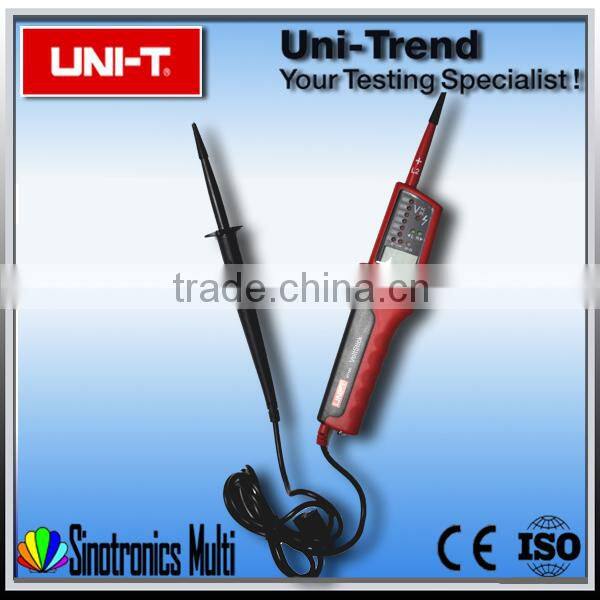

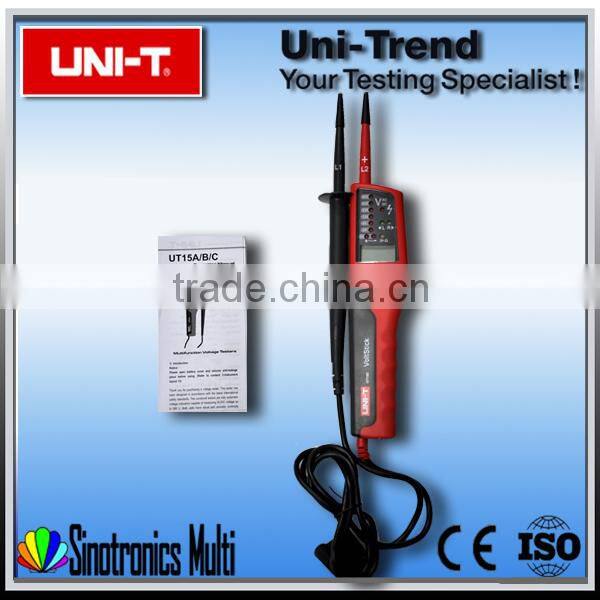

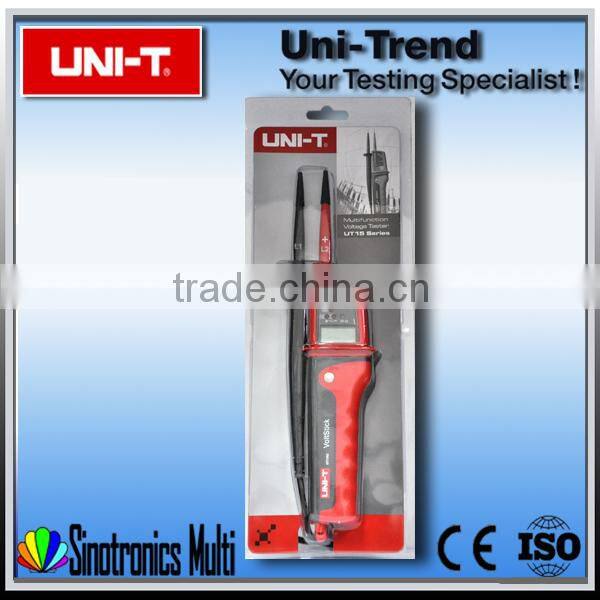

Resistance tester UNI-T UT15C
- 5000 Box / Boxes per Month
- SHANGHAI NINGBO
-
Acrel PZ48-AI/C Single phase current meter LED display with RS485 Modbus-RTU communication
-
panel mountable type DC ammeter AMC72-DI/C input DC0-5A LED display digital DC ammeter
-
Acrel PZ72-AI/J smart ammeter with Alarm out over/under current
-
Acrel AC Three-phase Voltmeter LCD display digital Voltage Meter with RS485 modbus
-
Single-phase AC Digital Ammeter AMC72-AI LED Display Input: AC 1A or 5A
-
complete set of impulse current generator
Product Details
| Place of Origin: | China | Brand Name: | UNI-T | Model Number: | UT15C |
| Display Type: | Analog Only | Measuring Range: | 12~690V | Accuracy Class: | 1V |
| Supply Voltage: | 1.5V Batteries(R03)* 2 | Operating Temperature: | 0℃~40℃ | Dimensions: | 275mm * 51mm * 30 mm |
Product Description
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product image
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT15 series test pen with the measurement of AC and DC voltage (contains three-phase alternating current (AC) measurements, three-phase AC phase indicator, on-off test, single pen measurement can determine the zero line and FireWire) function.
Can be applied to: smelting, electronics, manufacturing, petroleum, national defense, power, chemical and other industries. Also used to solve complex problems in electronic, factory automation, power distribution and mechanical and electrical equipment.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy |
| Model | UT15C | |
| LED AC/DC Voltage Indication (V) | 12V | 0~10V |
| 24V | 17V±2V | |
| 50V | 35V±5V | |
| 120V | 80V±15V | |
| 230V | 165V±20V | |
| 400V | 300V±30V | |
| 690V | 510V±40V | |
| Phase Rotation Test | Operating Voltage: 0V~690V | √ |
| Frequency:50Hz~ 60Hz | ||
| Single Lead(L2)Voltage Detection | Operating Voltage:100V~690V | √ |
| Frequency: 50Hz~ 400Hz | ||
| Continuity Test | Resistance: 0~400KΩ | √ |
| Beeper and LED light Indicator | ||
| Polarity Detection | Positive & Negative | √ |
| Features | ||
| Water-Proof(IP65) | √ | |
| Auto Range | √ | |
| Work Light | √ | |
| Low Battery Indication | Short circuit two leads,LED and beeper off when the bettery is low | √ |
| LCD AC/DC Voltage Display | 24V~ 690V | ±(3%+8) |
| General Characteristic | ||
| Power | 1.5V Batteries(R03)X 2 | |
| LCD Size | 23 X 12mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 210g | |
| Product Size | 275mm X 51mm X 30 mm | |
| Standard Accessories | Batteries | |
| Standard Individual Packing | Blister, English Manual | |
| Standard Quantity Per Carton | 30PCs | |
| Standard Carton Measurement | 440mm×395mm×455mm (0.079 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 11.2Kg | |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
