Home > Instruments & Meters > Meter for Electricity > Current Meter > The Latest UNI-T Pen Voltmeter UT18A

The Latest UNI-T Pen Voltmeter UT18A

Name: The Latest UNI-T Pen Voltmeter UT18A
Brand: UNI-T
SKU: 107488951
Availability: InStock

The Latest UNI-T Pen Voltmeter UT18A thumbnail-1

The Latest UNI-T Pen Voltmeter UT18A thumbnail-2

The Latest UNI-T Pen Voltmeter UT18A thumbnail-3

The Latest UNI-T Pen Voltmeter UT18A photo-1

The Latest UNI-T Pen Voltmeter UT18A photo-2

The Latest UNI-T Pen Voltmeter UT18A photo-3

US$ 18 - 20 MOQ: 1 Box

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

UNI-T

Model Number:

UT18A

Contact Supplier Request Quote Chat Now

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name UNI-T

Model Number UT18A

Measuring Range Full range

Supply Voltage .5V Batteries(R03)* 2

Dimensions 272mm*85mm*31 mm

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

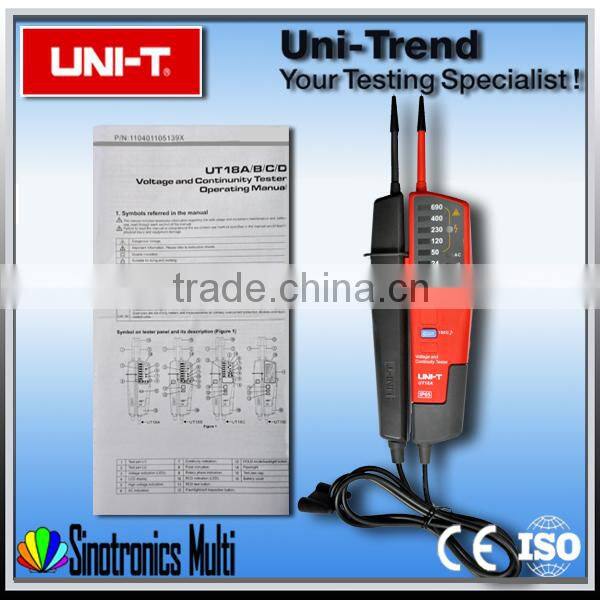

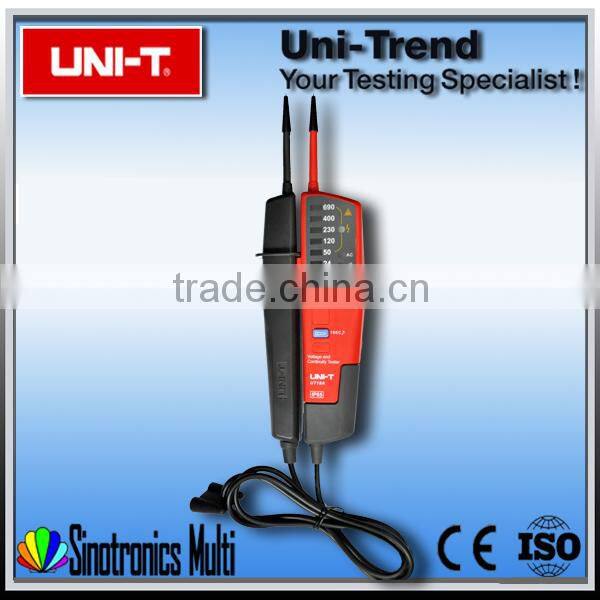

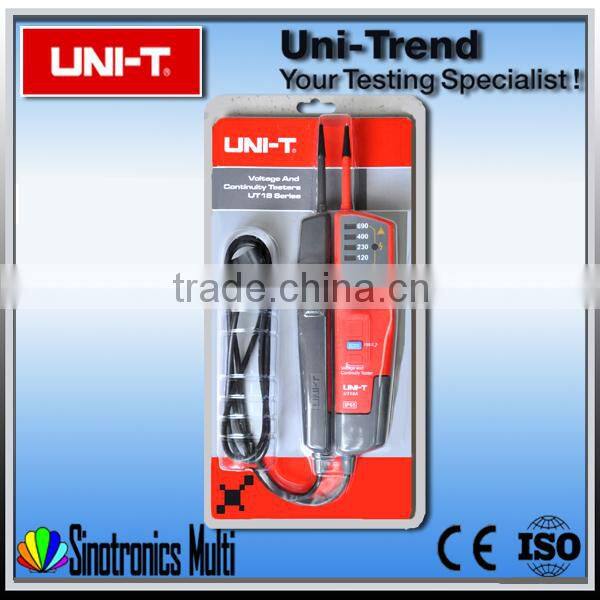

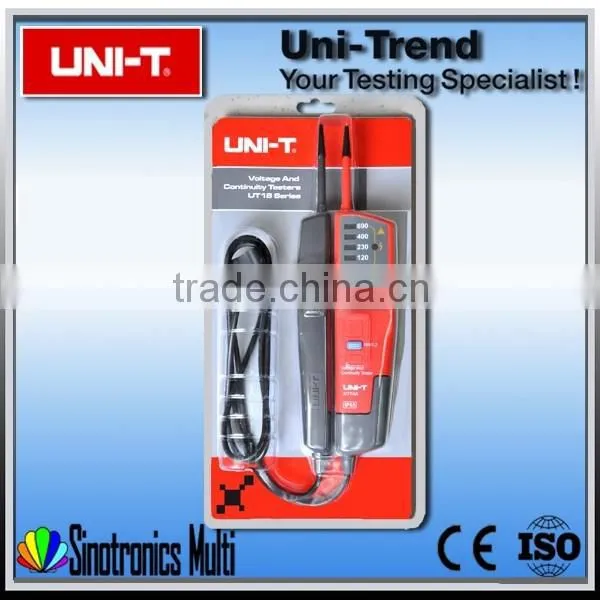

Product image

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product data

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

UT18 series of test pen with measuring AC and DC voltage (including the three-phase alternating current) measurement, phase of three-phase AC power indicator, on-off test, RCD test, single pen measurement (can determine the zero line or wire), self checking, no battery detection and other functions.
Suitable for: smelting, electronics, manufacturing, defense, electric power, petroleum, chemical industry. Also used to solve complex problems of electronic, factory automation, power distribution and electrical equipment in.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product attribute

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications	Range	Best Accuracy	Features
Model		UT18A	IP65		√
LED AC/DC Voltage Indication (V)	12V	8V±2V	Auto Range	All Range	√
	24V	18V±2V	Work Light	All Range	√
	50V	38V±4V	Low Battery Indication	Voltage Range:2.2V~2.4V	√
	120V	92V±6V	Exceed Voltage	Voltage Range:713V~788V	√
	230V	174V±8V	Auto standby	standby current <10uA	√
	400V	320V±10V	Silent mode	All Range	√
	690V	550V±15V	General Characteristic
Phase Rotation Test	Operating Voltage: 100V~690V	√	Power	1.5V Batteries(R03)× 2
Phase Rotation Test	Frequency:50Hz~ 60Hz	√	Product Color	Red and Grey
Single Lead(L2)Voltage Detection	Operating Voltage:100V~690V	√	Product Net Weight	260g
Single Lead(L2)Voltage Detection	Frequency: 50Hz~ 400Hz	√	Product Size	272mm×85mm×31mm
Continuity Test	Resistance: 0~100KΩ	√	Standard Accessories	Batteries
Continuity Test	Beeper and LED light Indicator	√	Standard Individual Packing	Blister, English Manual
Polarity Detection	Positive & Negative	√	Standard Quantity Per Carton	30PCs
self-inspection	All LED or LCD indicator	√	Standard Carton Measurement	440mm × 295mm × 455mm (0.079 CBM Per Standard Carton)
No power Test	Operating Voltage: 50VAC/120VDC~690VDC/AC	√	Standard Carton Gross Weight	17Kg

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

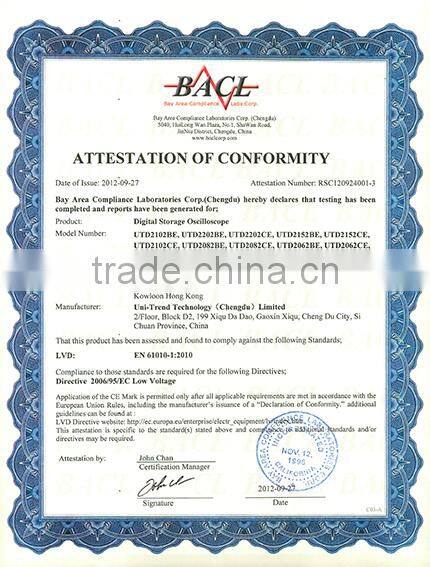

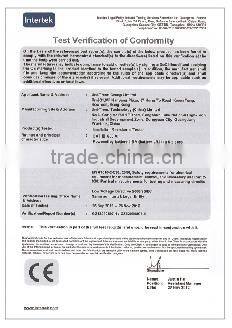

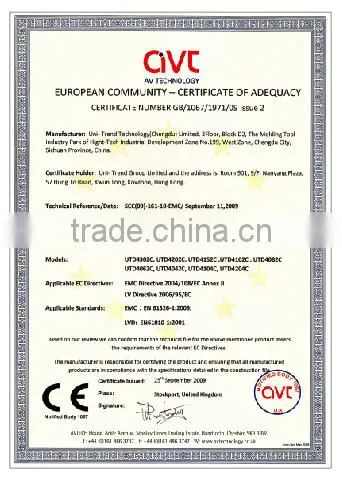

Qualification

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
