Home > Security & Protection > Surveillance, Control & Protection > Monitoring System & Software > Easy Security H.264 CCTV DVR With 1080P HD Screen Alarming and Timing Support USB 2.0 Mouse and Keyboard

Easy Security H.264 CCTV DVR With 1080P HD Screen Alarming and Timing Support USB 2.0 Mouse and Keyboard

Name: Easy Security H.264 CCTV DVR With 1080P HD Screen Alarming and Timing Support USB 2.0 Mouse and Keyboard
Brand: Richmor/ OEM
SKU: 107488937

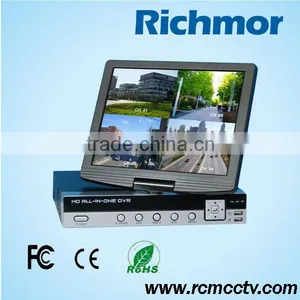

Easy Security H.264 CCTV DVR With 1080P HD Screen Alarming and Timing Support USB 2.0 Mouse and Keyboard thumbnail-1

Easy Security H.264 CCTV DVR With 1080P HD Screen Alarming and Timing Support USB 2.0 Mouse and Keyboard photo-1

US$ 155 - 179 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Richmor/ OEM

Model Number:

RCM-AL6004

Contact Supplier Request Quote Chat Now

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Richmor/ OEM

Model Number RCM-AL6004

Specifications

1.Embedded Linux Operation System
2.Support mobile phone view
3.PTZ Control
4.RJ45 Network Interface

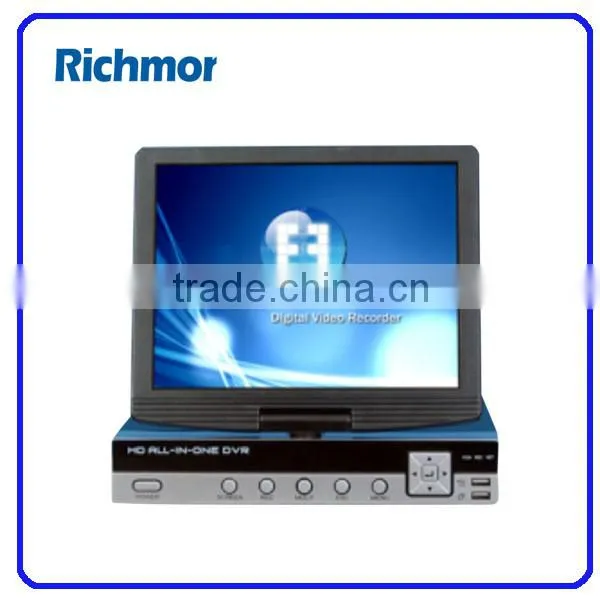

Easy Security H.264 CCTV DVR with 1080P HD Screen Alarming and Timing Support USB 2.0 Mouse and Keyboard

Specification

Model	4 CHANNEL		8 CHANNEL
Operation System	Embedded Linux Operation System
Operation Interface	GUI, support mouse, pane, remote control operation
Video Standard	PAL, NTSC
System Resources	Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation.
Video Compression	H.264
Audio Compression	ADPCM
Recording Mode	Manual, Timing, Alarm, Motion detection
Search Mode	By time, event, channel, log
Backup Mode	Network download, USB backup
Video Input	4ch BNC	8ch BNC
Video Output	LCD:10.5inch (Resolution:1024X768)	CVBS		VGA Resolution: 1280X1024
Audio Input	4ch RCA	8ch RCA
Audio Output	1ch RCA
Voice Talkback	1ch RCA
Live Video Resolution	PAL:720x576(D1 );NTSC:720x480(D1)
Playback Resolution	PAL:352x288(CIF);NTSC:352x240(CIF)
Image Control	1-6 level are selectable
Motion Detection	Each channel can set independent detection zones and multilevel sensitivity
Video Display	1/4multiple display		1/4/8multiple display
Recording Frame Rate	PAL:25f/s(Adjustable)NTSC:30f/s(Adjustable)
Recording Storage	Local HDD, Network
Local Playback	1--8 channel playback at same time
Alarm Input	4ch		4ch
Alarm Output	1ch output
PTZ Control	RS485
HD Interface	1 SATA Ports
Network Interface	RJ4510M/100M Adaptable Ethernet Connection
Mobile Phone View	Support iPhone, blackberry, Windows Mobile, Android, Symbian
USB Interface	2 USB2.0 High-speed Port
Power Supply	12V 3A

Key Feature

· Creative all-in-one design, screen panel control 270 degrees revolving and 180 degrees turn over.

· Integrate 10.5 inch digital LCD, the resolution is 1024X768.

· H.264 compression format.

· Support mobile phone surveillance

· Support languages: English, German, French, Spanish, Italian, Russian, and Portuguese…

· Video and audio real time recording and playback at the same time.

· Support HD VGA output, the re solution is high to 1280X1024.

· Searching modes: time / data searching, event searching, recording group searching.

· Backup modes: network backup, USB 2.0 backup.

· Support RS-485 PTZ control (speed dome camera), and preset positions operation.

· Support USB mouse and infrared remote controller operation.

· Multiplex operation: Live, record, playback, network can be operated at the same time.

Certification

Packing Detail

1. Brand Box with Our Logo Richmor.

2. Neutral Box.

3. Your Logo is also Welcomed.

Product Warranty

All our products must be pre-tested by professional QC before shipping!

3 years warranty from the date you purchase.

Lifelong warranty.

Our machines must be aged more than 48 hours before sending to customers.

Richmor is specialized in research, produce and market of CCTV DVR (for mobile cars/indoors and outdoors for home), CCTV cameras(Car Cameras/ PTZ Cameras/ Dome Cameras/ High Speed Cameras/ Zooming Cameras/ HD Megapixel Cameras) and other CCTV acessories. All our products will be checked by professional QC before shipping.

Owing to so many years experience of producing and exporting, we can offer best Technical Support and competitve price according to different market.

Trust me, choose me, save money and time.
