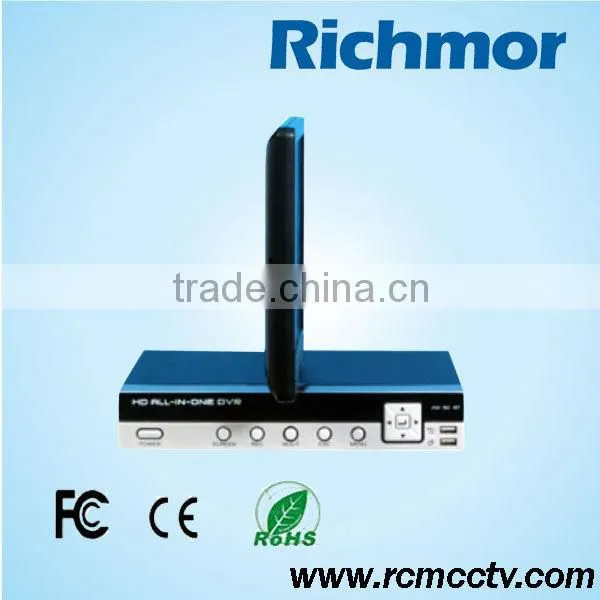

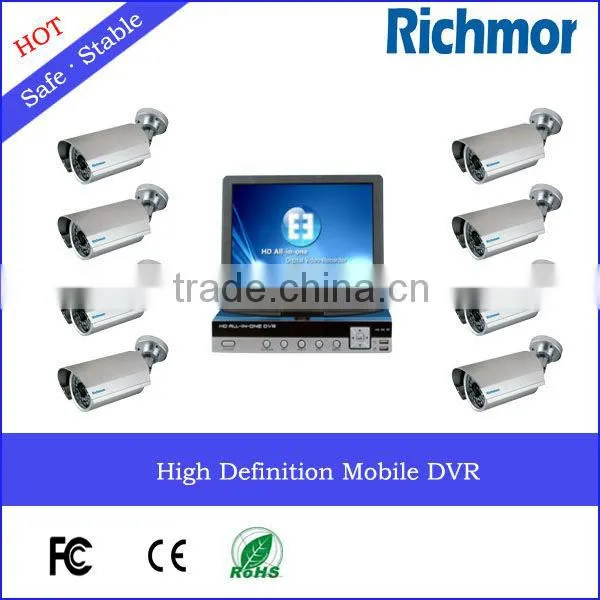

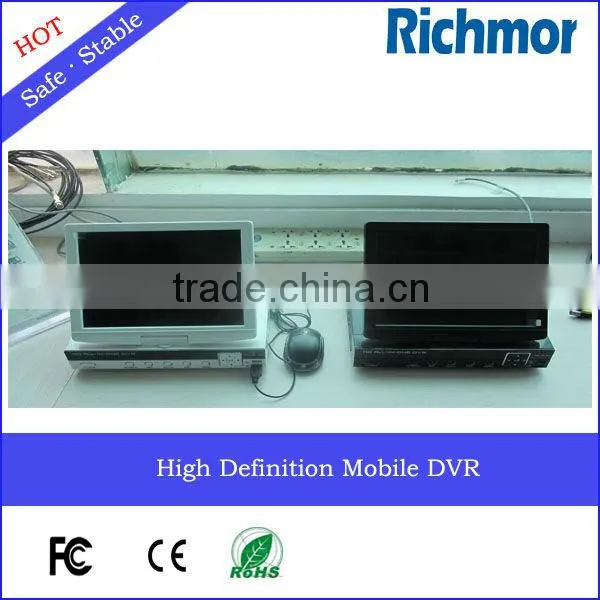

CCTV Embedded Digital Video Recorder 4-Channel Stand-alone Dvr With LCD Monitor

Name: CCTV Embedded Digital Video Recorder 4-Channel Stand-alone Dvr With LCD Monitor
Brand: Richmor/ your logo
SKU: 107488947

US$ 75 - 93 MOQ: 10 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Richmor/ your logo

Model Number:

RCM-AL6008

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Richmor/ your logo

Model Number RCM-AL6008

Specifications

4-Channel Stand-alone Dvr with LCD Monitor
1. 10.5" TFT LCD Monitor & DVR Two In One
2. CE FCC Rohs
3. Real-time D1

CCTV Embedded Digital Video Recorder 4-Channel Stand-alone Dvr with LCD Monitor

Features:

H.264 Compression;2 USB2.0 high speed interface
High quality codec;Support high quality picture
Adopt graphical user interface systematically
Support USB mouse, panel and remote controller
1ch BNC, 1ch VGA output,1ch talkback function
Support various network protocol
Support cellphone remote monitoring;CMS central management software
Support various PTZ control protocol
System Defaults support more than 10 kinds of languages menu;Support 1piece 2T SATA hard disks(can choose 2 pieces 2T SATA hard disks)

Specifications:

Input level	1.0 Vp-p±10% Composite, 75W Balanced
Display NO,	8CH:240 FPS(NTSC),200 FPS(PAL)4CH :120FPS(NTSC),100FPS(PAL)
Display resolution	NTSC :720(H) X 480(V),PAL:720(H) X 576(V)
Compressed technology	H.264
Record NO.	8CH:240FPS (NTSC),200FPS(PAL)4CH:120(NTSC),100FPS(PAL)
Video resolution	4CH:D1/CIF, 8CH:CIF
Image quality	The lowest / low / general / high / the highest
Star recording	Manual/displacement detection/ scheduling
Hard disk	1pcs or 2pcs 2T SATA hard disk
displacement detection	Channel can be set switch and can adjust the sensitivity
Image input	4 / 8CH
Image output	BNC 1 hole , VGA 1 hole
Voice tailback	1CH
Voice input	4CH: RCA 4CH 8CH: RCA 8CH
Voice output	RCA 1CH
USB 2.0	USB memory stick, USB, mouse,
Remote controller	Standard remote controller,
Network	1 RJ45 interface,10/100 Mbps
Power supply	DC 12V / 3A
Working environment	temperature 5°C ~ + 40°C
Working environment	Humidity <90%
Size	30(L) x 26.5 (W) x 6 (H) cm
Weight	About 2.5kg
Backup device	U disk, network
Search mode	listing / time
Remote monitoring	Web browser/centralized management software (CMS)
Operating system	Embedded
Multitask environment	real time, recording, playback, network on line, data transmission
