Specifications
H.264 Network Dvr1.Multi-brand IPC compatible
2.Onvif approved and POE
3.iphone view
4.H.264
Onvif POE IPC 1080P H.264 Network Dvr for IP Camera

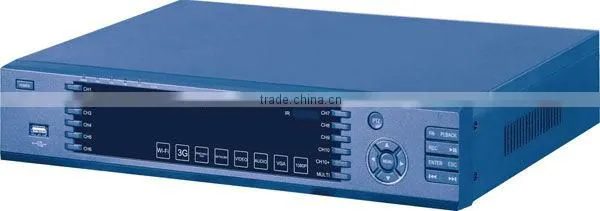

Front Panel:
Rear Panel:
Main Features:
1. Up to 4/8/16 channel with 1080p realtime live view
2. H.264/MJPEG dual codec decoding
3. Max 120fps@1080p, 240fps@720p,480fps@D1 preview & recording
4. All channel simultaneous realtime playback, GRID interface & smart search
5. Support Multi-brand network cameras: , Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
6. ONVIF Version 2.0 conformance
7. 3D intelligent positioning with PTZ camera
8. Support 2 SATA HDDs up to 8TB, 1 eSATA up to 16TB, 3 USB2.0
9. Support IPC UPnP, 4 PoE ports
10. Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Parameter:
Model Number |
RCM-N6004S |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)fps / 720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 720P(1280×720) |
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity |
|
Recording Playback Quality |
Any 4ch 1080P/720P playback simultaneously |
|
Region Cover |
Every channel can set 4 cover regions |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW . network storage and backup |
|
Operation Way |
Mouse, remote control, front panel, keyboard controller |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |
1×(1920*1080) +3×(1280*720) IP camera |
Audio Input |
4ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch BNC auxiliary output |
|
Network Port |
1 RJ45,10M/100M/1000M self-adaptive LAN port |
|
RS485 Port |
Full duplex standard 485 port, support 19 kinds of PTZ protocols |
|
USB Port |
3 USB 2.0 ports(one on front panel, two on rear panel) |
|
Alarm Input |
4ch |
|
Alarm Output |
1ch |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
2 SATA HDD port/1 SATA+1 E-SATA |
MAX Capacity |
Each port supports MAX 3TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
12V4A |
|
Power Consumption |
≤25(without HDD) |
|
Working Temperature |
-10°C~+55°C |
|
Working Humidity |
10%-90% |
|
Dimension |
Equipment: 350mm×240mm×70mm, Packing: 409mm×365mm×129mm |
|
Weight(without HDD) |
N.W.: 1.7Kg;with packing:2.89Kg |
|
Outside Carton |
5pcs/carton. 675mm×425mm×385mm;weight: 15.22 Kg. |
|
Installation Way |
Desktop installation |
|
