Specifications
H.264 Compression 4CH All-in-one Digital Video Recorder1.Embedded Linux Operation System
2.Support mobile phone view
3.PTZ

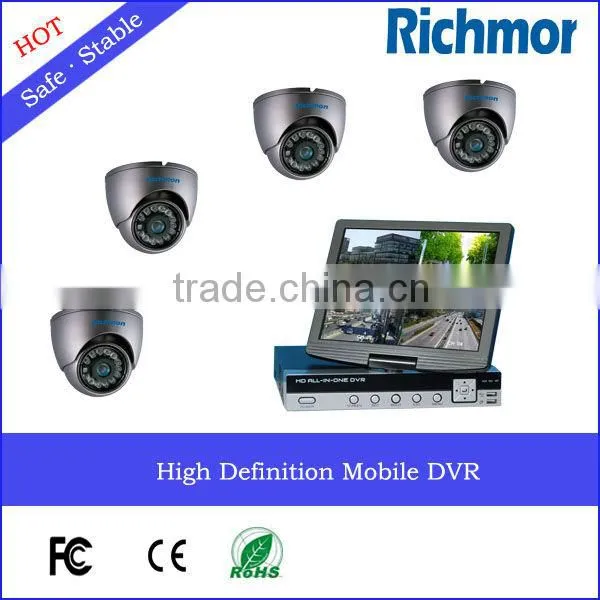

H.264 Compression All-in-one Digital Video Recorder 4CH 8 Channel 16 Channel For Optional
Features:
- Creative all-in-one design, screen panel control 270 degrees revolving and 180 degrees turn over.
- Integrate 10.5 inch digital LCD, the resolution is 1024X768.
- H.264 compression format.
- Support mobile phone surveillance
- Support languages: English, German, French, Spanish, Italian, Russian, and Portuguese…
- Video and audio real time recording and playback at the same time.
- Support HD VGA output, the re solution is high to 1280X1024.
- Searching modes: time / data searching, event searching, recording group searching.
- Backup modes: network backup, USB 2.0 backup.
- Support RS-485 PTZ control (speed dome camera), and preset positions operation.
- Support USB mouse and infrared remote controller operation.
- Multiplex operation: Live, record, playback, network can be operated at the same time.
Specifications:
Model |
4 CHANNEL |
8 CHANNEL |
|
Operation System |
Embedded Linux Operation System |
||
Operation Interface |
GUI, support mouse, pane, remote control operation |
||
Video Standard |
PAL, NTSC |
||
System Resources |
Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation. |
||
Video Compression |
H.264 |
||
Audio Compression |
ADPCM |
||
Recording Mode |
Manual, Timing, Alarm, Motion detection |
||
Search Mode |
By time, event, channel, log |
||
Backup Mode |
Network download, USB backup |
||
Video Input |
4ch BNC |
8ch BNC |
|
Video Output |
LCD:10.5 inch (Resolution:1024X768) |
CVBS |
VGA Resolution: 1280X1024 |
Audio Input |
4ch RCA |
8ch RCA |
|
Audio Output |
1ch RCA |
||
Voice Talkback |
1ch RCA |
||
Live Video Resolution |
PAL:720x576(D1 );NTSC:720x480(D1) |
||
Playback Resolution |
PAL:352x288(CIF);NTSC:352x240(CIF) |
||
Image Control |
1-6 level are selectable |
||
Motion Detection |
Each channel can set independent detection zones and multilevel sensitivity |
||
Video Display |
1/4multiple display |
1/4/8multiple display |
|
Recording Frame Rate |
PAL:25f/s(Adjustable)NTSC:30f/s(Adjustable) |
||
Recording Storage |
Local HDD, Network |
||
Local Playback |
1--8 channel playback at same time |
||
Alarm Input |
4ch |
4ch |
|
Alarm Output |
1ch output |
||
PTZ Control |
RS485 |
||
HD Interface |
1 SATA Ports |
||
Network Interface |
RJ4510M/100M Adaptable Ethernet Connection |
||
Mobile Phone View |
Support iPhone, blackberry, Windows Mobile, Android, Symbian |
||
USB Interface |
2 USB2.0 High-speed Port |
||
Power Supply |
12V 3A |
||
