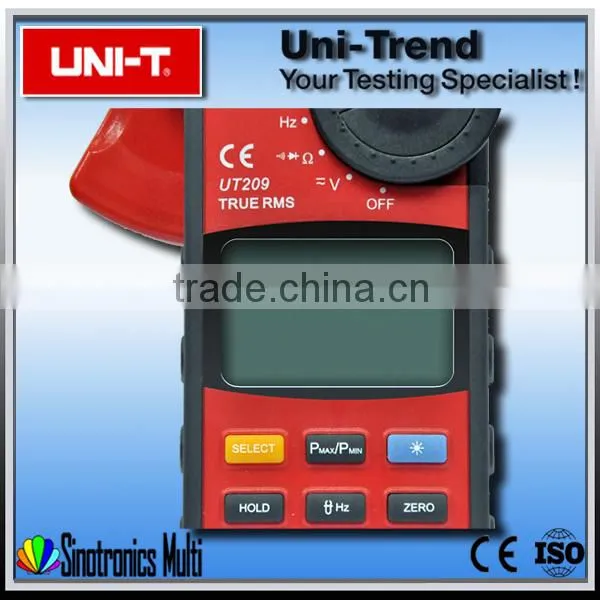

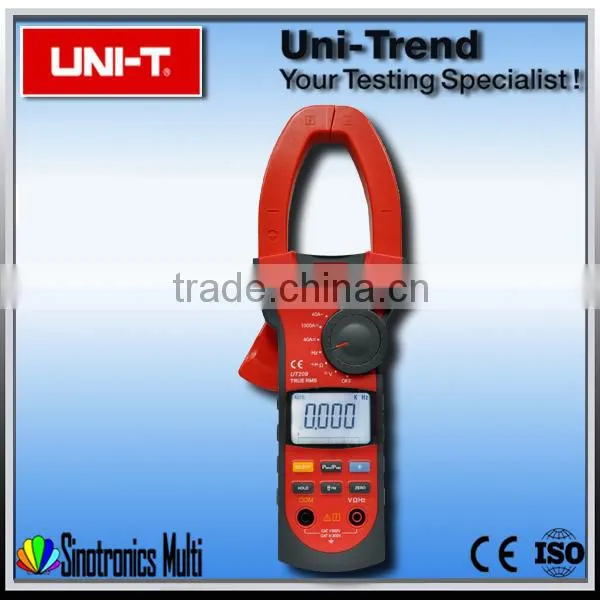

Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT209 is a stable performance, safe and reliable 3 bit 3/4 digital DC clamp meter. Full range of overload protection circuit, unique design to make it become a superior performance of the special electrical instrumentation.
The instrument is an ideal tool for the maintenance and repair of the industry, such as smelting, manufacturing, petroleum, electric power, chemical and other industries.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy |
| Model | UT209 | |
| AC Current (A) | 40A/1000A | ±(2%+8) |
| DC Current (A) | 40A/1000A | ±(1.5%+8) |
| AC Voltage (V) | 400mV/4V/40V/400V/600V | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 4KHz/40KHz/400KHz/4MHz/40MHz | ±(1%+3) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Jaw Capacity | 55mm | |
| True RMS | AC Voltage | √ |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Peak Max/Peak Min Mode | √ | |
| LCD Backlight | √ | |
| Analogue Bar Graph | 41 | |
| Full Icon Display | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Alkaline Battery(6LF22) | |
| LCD Size | 47mm X 30 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 533g | |
| Product Size | 286mm X 105mm X45mm | |

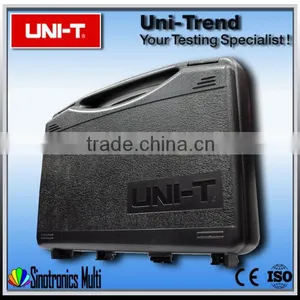

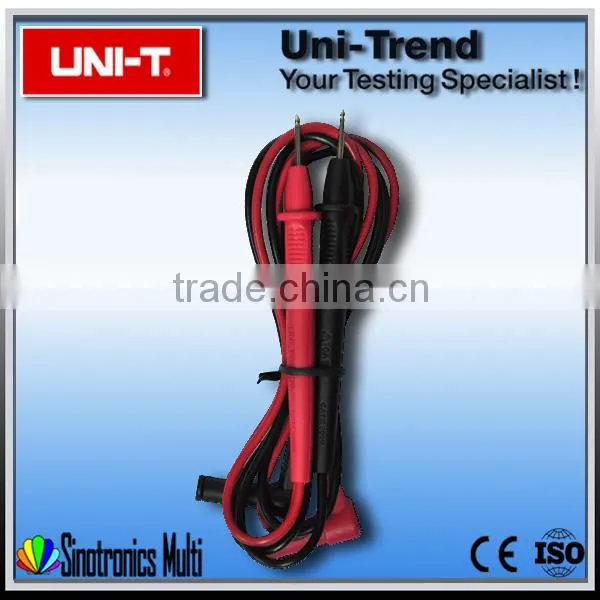

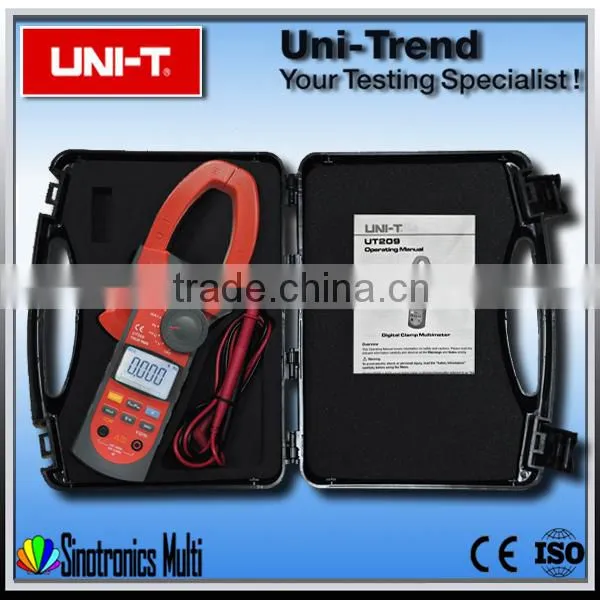

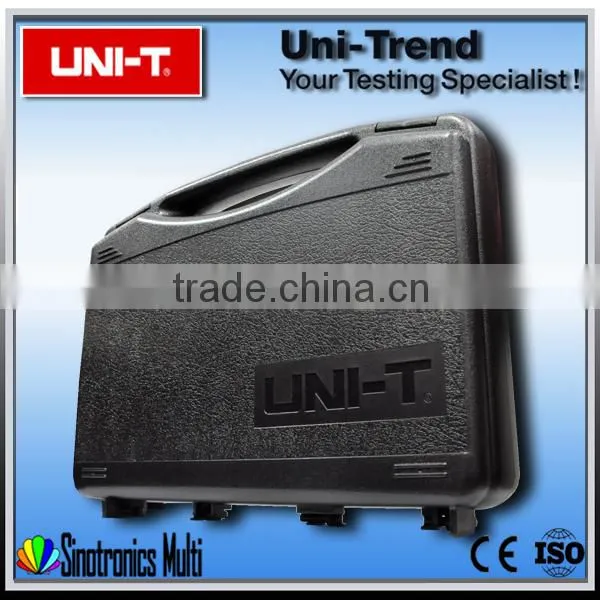

| Standard Accessories | Alkaline Battery, Test Lead, Tool Box | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 5 PCs | |
| Standard Carton Measurement | 480mm X 372mm X 315mm (0.056 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 11Kg | |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
