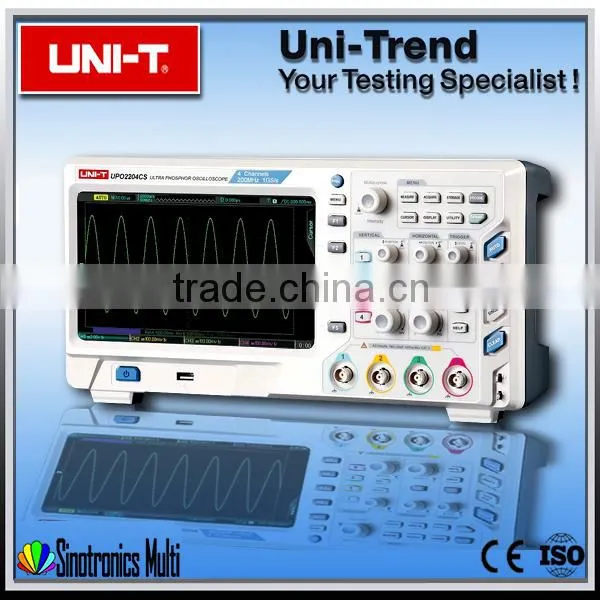

Help CenterBest Digital Oscilloscopes UNI-T UPO 2204CS Quality Choice
Related Products
-
Best Digital Double Channel Oscilloscopes UNI-T UTD2052CLUS$ 158.7 - 181.8MOQ: 1 Piece -
Best Digital Double Channel Oscilloscopes UNI-T UTD2072CEX Quality ChoiceUS$ 206.3 - 236.4MOQ: 1 Piece
-
Best Digital Double Channel Oscilloscopes UNI-T UTD4102CMUS$ 502.9 - 528MOQ: 1 Piece
-
Best Digital Oscilloscopes UNI-T UTD2025CL Quality ChoiceUS$ 145 - 148MOQ: 1 Piece
-
Best Digital Oscilloscopes UNI-T UTD2052CL Quality ChoiceUS$ 155.3 - 163MOQ: 1 Piece
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT71A product is 4 count 19999 1/2 automatic range is really effective value of digital million with a table, with a full range of analog display, full range overload protection and unique design, so that the performance is more superior to the high accuracy of electrical measuring instrument.
Can be applied to: smelting, electronics, communications, manufacturing, petroleum, national defense, power, chemical and other industries and major technical secondary school. Also used to solve complex problems in electronic, factory automation, power distribution and mechanical and electrical equipment.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Models | UPO2204CS |
| Bandwidth | 200 MHz |
| Channels | 4 |
| Sample Rate | 1GS/s |
| Max. Memory Depth | 32Mpts |
| Waveform Capture Rate | 30,000wfms/s |
| Time Base Scale | 2 ns/div ~50 s/div |
| Input Coupling | (1MΩ± 1%)||(13 pF± 3 pF) |
| Vertical Scale | 1mV/div ~20 V/div(1 MΩ) |
| DC Gain Accuracy | ±3% |
| Waveform Record | 65,000 Frames |
| Trigger | Edge, Alternate, Runt, Super picture, Nth Edge, Delay, Duration, SetupHold, Pulse Width, Slope, Video, Pattern, RS232/UART,I2C,SPI, USB |
| Bus Decode | Standard:Parallel; Optional:RS232/UART,I2C,SPI, USB |
| Waveform Operation | A+B,A-B,A×B,A/B,FFT,Editable Advanced |
| Auto Measurement | Peak-Peak Value, Amplitude, Maximum, Minimum, Top Value, Bottom Value, Mean, Average, Root Mean Square Value, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay 1->2, and Delay 2->1. |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter | Hardware 6 bits counter (Channels are selectable) |
| Standard Interface | USB-Host, USB-Device, LAN,10MHz Input/Output, AUX Output (TrigOut, Pass/Fail) |
| General Characteristic | |
| Power | 100V~240VACrms, 45Hz~440Hz |
| Display | 8 inches, TFT LCD, WVGA(800×480) |
| Product Color | White and Gray |
| Product Net Weight | 3.5 Kg ± 0.2 Kg |
| Product Size (W×H×D) | 336mm × 163.8mm × 105mm |
| Standard Accessories | Probe×2/4(1×,10× switchable),Power Cord ,USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 2 PCs |
| Standard Carton Measurement (L×W×H) | 550mm × 220mm × 325mm |
| Standard Carton Cross Weight | 9.5 Kg |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
