Best Digital Double Channel Oscilloscopes UNI-T UTD2052CL
US$ 158.7 - 181.8
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UTD2052CL
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Digital Double Channel Oscilloscopes UNI-T UTD2072CEX Quality ChoiceUS$ 206.3 - 236.4MOQ: 1 Piece -
Best Digital Double Channel Oscilloscopes UNI-T UTD4102CMUS$ 502.9 - 528MOQ: 1 Piece
-
Best Digital Oscilloscopes UNI-T UTD2025CL Quality ChoiceUS$ 145 - 148MOQ: 1 Piece
-
Best Digital Oscilloscopes UNI-T UTD2052CL Quality ChoiceUS$ 155.3 - 163MOQ: 1 Piece
-
Best Digital Oscilloscopes UNI-T UTD2102CEX Quality Choice Most PopularUS$ 198 - 207.9MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UTD2052CL

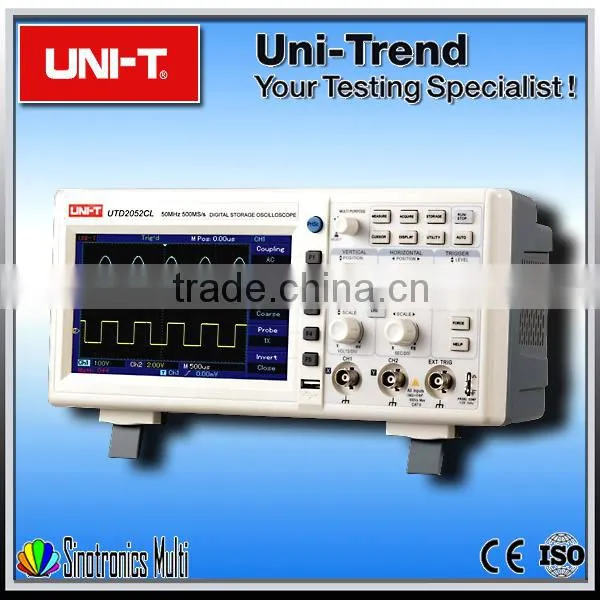

Product image
Product Description
1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,Special Print Scree Feature;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 28 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays
Product parameters
| Specification | UTD2052CL | |
| Channels | 2 | |
| Bandwidth | 50MHz | |
| Sample Rate | 500Ms/s | |
| Rise Time | ≤7ns | |
| Memory Depth | 25kpts | |
| Waveform Acquisition Rate | ≥2000wfms/s | |
| Vertical Sensitivity | 1mV/div~20V/div | |
| Timebase Range | 5ns/div~50s/div | |
| Storage | Setup,Wave,Bitmap | |
| Trigger Modes | Edge, Pluse, Alternate | |
| Interface | USB OTG | |
| General Characteristic | ||
| Power | 100-240VAC, 40-440Hz | |
| Display | 7 Inches 64K Color TFT LCD, 400×240 | |
| Product Color | White and Gray | |
| Product Net Weight | 2.2 Kg | |
| Product Size(W×H×D) | 306mm ×147mm × 122mm | |
| Standard Accessories | Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 2 PCs | |
| Standard Carton Measurement(L×W×H) | 450mm × 420mm × 280mm | |
| Standard Carton Cross Weight | 8.5 Kg | |
