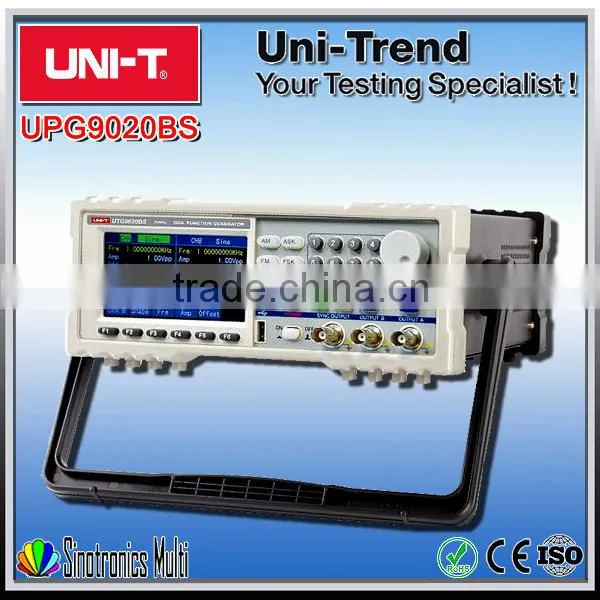

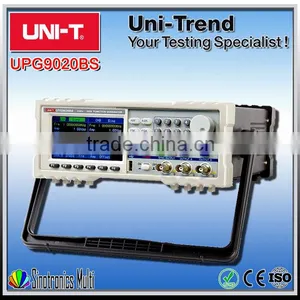

 Best DDS Universal Waveform Generator UTG9020BS

Product Description

1 DDS technique is applied with the same high frequency stability and resolution as crystal oscillator and extreme low frequency is realizable.
2 VLSI and SMT are used. Auto calibrating program without mechanical potentiometer can insure the high reliability.
3 Double channels output, frequency of both A/B channels reach max limit of the instrument. (max output of channel Bof UTG9040BS/DS is 20MHz)
4 Ten basic waveforms includes Sine, Square, Triangle,Pulse, Up Ramp, Down Ramp, P-Exp, N~Exp, Sine (x) /xand Noise wave.
5 Modulation waveforms include AM, FM, PWM, Sweep,Burst, ASK, FSK, PSK
6 4.3’color TFT LCD (480 × 272) display, Chinese or English menu.
7 Favorable human~machine interface with convenient operation. Each one button to each waveform and modulation waveform. The parameters can be keyed in by number buttons or by combined operation of buttons and pulse knob.
8 All settings and conditions for waveforms are saved automatically and can be recovered automatically.
9 Convenient and practical software for arbitrary waveform programming can download and save 16 arbitrary waveforms, edit and output 4 arbitrary waveforms at the same
time. The arbitrary waveforms could be output independently or in groups. (optional)
10 USB interface (applied for DS series)



Product parameters
Features Range
Model UTG9020BS
Waveforms
Standard Waveforms Sine, Square, Triangle, Ramp up, Ramp down, Random Noise, SIN(X)/X, Exponential Rise, Exponential Fall, Pulse.  Expand up to 36 types of waveform
Amplitude Characteristics
Range (no load) from 1mVp-p to 20Vp-p
Accuracy ±5% (Sine at 1kHz)
Resolultion 0.01mV
Frequency Characteristics
Range of Sine from 1μHz to 20MHz
Range of Square from 1μHz to 5MHz
Range of Other Waveforms from 1μHz to 1MHz
Stability 50ppm (from -10℃ to 40℃)
Resolultion 0.1μHz or 8 digit
Accuracy 0.1μHz (<100Hz), 0.4Hz (>100Hz)
Signal Characteristics
Sine
Harmonic Distortion <20kHz : -60dBc
20kHz to 1MHz : -50dBc
1MHz to 10MHz : -40dBc
10MHz to 20MHz : -30dBc
Square, Pulse
Rise/Fall Time <20ns
Overshoot <5%
Asymmetry 1%+20ns
Duty Cycle of Pulse 0.1% to 99.9%
Triangle, Ramp
Linearity <1%
Modulation Characteristics
Frequency Sweep
Sweep Frequency Range 1Hz to upper limit frequency
Step Frequency 1Hz
Sweep Rate 10ms to 10s
Trigger Mode Single, INT, EXT
Internal AM Modulation
Carrier Frequency 1μHz to upper limit frequency
Carrier Waveforms Internal waveform except square
Modulation Waveforms All internal waveform
Modulation Frequency Range 100mHz to 20kHz
Modulation Depth Range 0% to 100%
Internal PM Modulation
Carrier Frequency 1μHz to upper limit frequency
Carrier Waveforms Sine, Square
Modulation Waveforms All internal waveform
Modulation Frequency Range 100mHz to 20kHz
Modulation Range 360º
Internal FM Modulation
Carrier Frequency 1μHz to upper limit frequency
Carrier Waveforms Internal waveform
Modulation Waveforms All internal waveform
Modulation Frequency Range 100mHz to 20kHz
Modulation Range 1Hz to upper limit frequency
FSK, PSK, ASK, BURST Modulation
Pulse Width 10μs to 100s
Trigger Mode Single, INT, EXT
Carrier Frequency 1μHz to upper limit frequency
Carrier Waveforms Internal waveform
Phase Range from -360º to 360º
Burst Pulse number 1 to 65535
EXT AM Modulation
Input Impedance 1kHz
Modulation Depth Controlled by external signal
Output Characteristics
Output A (Main Output )
Output Impedance 50Ω
DC Offset from -100% to 100% Vpeak
Output B
Waveform All internal waveform
Amplitude 200mVp-p to 20Vp-p (no load)
Output Impedance 600Ω
Frequency Range 0.1Hz to 20kHz
Frequency Counter
Waveform All internal waveform
Frequency Range 1Hz to 100MHz
Amplitude Range 100mV to 5V
Remote Interfaces
RS-232 9600Baud, N, 8, 1
General Characteristic
Power AC 220V,50Hz
LCD Size 62×62 mm
Product Color White and Gray
Product Net Weight 2.5 Kg
Product Size 320mm×240mm×100mm
Standard Accessories BNC to Alligator Clips,Power Cord
Standard Individual Packing Gift Box,English Manual
Standard Quantity Per Carton 6 Pcs
Standard Carton Measurement 660mm×410mm×600mm
Standard Carton Cross Weight 18 Kg
MOQ

We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.

Please contact us
