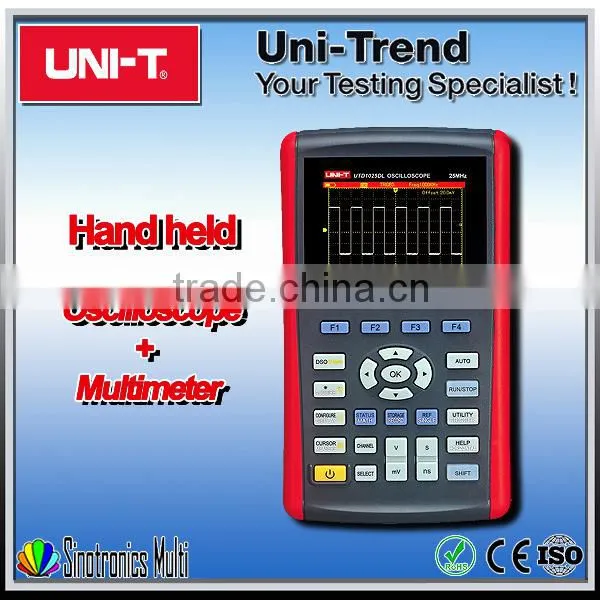

Best Handheld Digital Storage Oscilloscopes UNI-T UTD1025CL Quality Choice Most Popular
US$ 175.2 - 184
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UTD1025CL
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Handheld Digital Storage Oscilloscopes UNI-T UTD1050DLUS$ 274.3 - 288MOQ: 1 Piece -
Best Handheld Digital Storage Oscilloscopes UNI-T UTD1025DLUS$ 228.6 - 240MOQ: 1 Piece
-
Best Handheld Digital Storage Oscilloscopes UNI-T UTD1050CLUS$ 213.3 - 224MOQ: 2 Pieces
-
Best Handheld Digital Storage Oscilloscopes UNI-T UTD1062C Quality ChoiceUS$ 365.7 - 384MOQ: 2 Pieces
-
Best Handheld Digital Storage Oscilloscopes UNI-T UTD1102CUS$ 427 - 448.3MOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UTD1025CL
--------------------
Product image
Product Description
Product Features:
1, Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference;
2, Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component;
3, Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div;
4, Isolated USB for much safer communication;
5, White and black display for your option, perfect for use outdoors with strong light;
6, Intelligent local or network software update;
7, More than 8hours of continuous battery operation.
Product parameters
| Specification | UTD1025CL | |
| Channels | 1 | |
| Bandwidth | 25MHz | |
| Sample Rate | 200MS/s | |
| Rise Time | ≤14ns | |
| Memory Depth | 12kpts | |
| Vertical Sensitivity | 5mV/div~20V/div | |
| Timebase Range | 10ns/div~50s/div | |
| Storage | Bitmap, Setup, Waveform | |
| Trigger Modes | Edge, Pulse, Video, Slope | |
| Interface | Mini USB | |
| Multimeter Specifications | Range | Best Accuracy |
| DC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | ±(1%+5) |
| AC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | ±(1.2%+5) |
|
DC Current (A) (External Convertor) |
400.0μA/ 4000μA | ±(1.2%+5) |
| 40.0mA/ 400mA | ±(1%+5) | |
| 10A | ±(1.5%+5) | |
|
AC Current (A) (45Hz~400Hz) (External Convertor) |
400.0μA/ 4000μA | ±(2%+5) |
| 40.0mA/ 400mA | ±(1.5%+5) | |
| 10A | ±(2.5%+5) | |
| Resistance (Ω) | 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ | ±(1.2%+5) |
| 40.00MΩ | ±(1.5%+5) | |
| Capacitance (F) | 51.20nF/512.0nF/5.120μF/51.20μF/100μF | ±(3%+5) |
| Display Count | 4000 | √ |
| General Characteristic | ||
| Power |
Lithium Battery: 7.4V 3600mAh; DC Adapter: 100~240V 50/60Hz input, 9V 4A Output |
|
| LCD Size | 3.5 Inches 64K Color TFT LCD, 320×240 | |
| Product Color | Red and Grey | |
| Product Net Weight | 0.9 Kg | |
| Product Size (W×H×D) | 199mm × 118mm × 49mm | |
| Standard Accessories | DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable,PC Software CD | |
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
| Standard Quantity Per Carton | 6 PCs | |
| Standard Carton Measurement (L×W×H) | 515mm x 295mm x 315mm | |
| Standard Carton Cross Weight | 10.8 Kg | |
