best digital multimeter uni-t ut105

Name: best digital multimeter uni-t ut105
Brand: UNI-T
Price: USD $11 - 11.6 / Piece

FOB Price

USD $11 - $11.6 / Piece

40 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port SHANGHAI NINGBO

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	UNI-T	Model Number:	UT105
Measuring Current Range:	200mA/10A	Measuring Voltage Range:	200mV/2V/20V/200V/1000V	Measuring Resistance Range:	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Measuring Capacitance Range:	none	Measuring Inductance Range:	none	Operating Temperature:	0~40
Dimensions:	179mm X 88mm X 39mm

Product Description

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

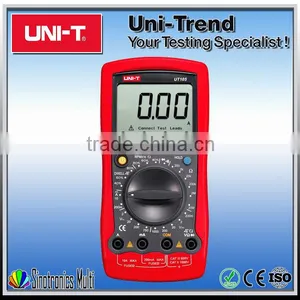

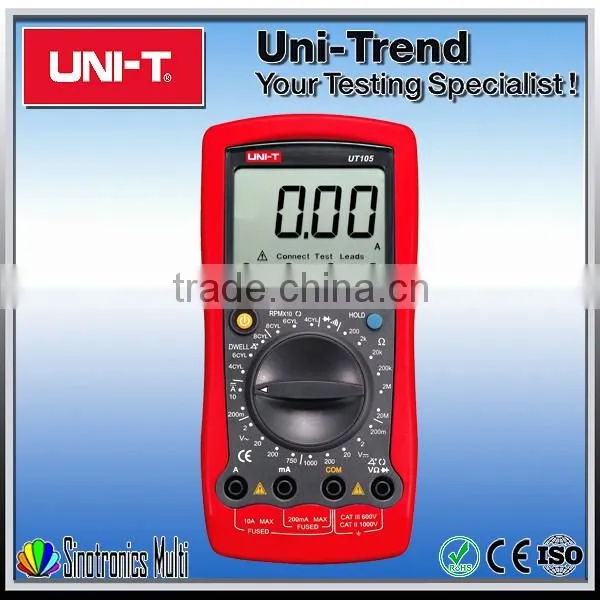

Product image

Product Description

UT105 instrument is a 1999 count manual range car digital multi meter. With super large screen, full function symbol display and input connection prompt, full range overload protection and unique appearance design, make it become more superior performance using a more secure electrical instrument.

The utility model can be used for measuring: AC and DC voltage, DC current, resistance, diode, circuit and the speed and the closing angle of the vehicle.

Product parameters

Specifications	Range	Best Accuracy
Model		UT105
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+5)
AC Voltage (V)	2V/20V/200V/750V	± (0.8%+5)
DC Current (A)	200mA/10A	± (0.8%+5)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	± (0.8%+5)
Features
Display Count		2000
Manual Range		√
Diode		√
Continuity Buzzer		√
Low Battery Indication		√
Data Hold		√
Input Protection		√
Input Impedance for DCV	Around 10MΩ	√
Dwell	4CYL/6CYL/8CYL	±(3%+5)
Tach	4CYL/6CYL/8CYL	±(3%+5)
General Characteristic
Power	9V Battery(6F22)
LCD Size	60mm X 54 mm
Product Color	Red and Grey
Product Net Weight	351g(Including Holster)
Product Size	179mm X 88mm X 39mm
Standard Accessories	Battery, Test Lead,Holster

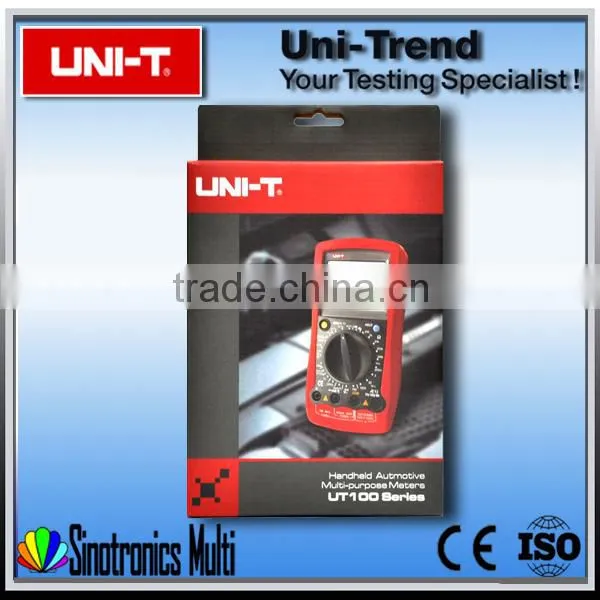

Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	645mm×450mm×340mm (0.0987 CBM Per Standard Carton)
Standard Carton Gross Weight	24.6 Kg

Qualification

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

MOQ

We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
