Best Insulation Resistance Multimeters UNI-T UT533

Best Insulation Resistance Multimeters UNI-T UT533 thumbnail-1
Best Insulation Resistance Multimeters UNI-T UT533 photo-1
US$ 84.6 - 88.8 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UT533
Contact Supplier Request Quote Chat Now
Sinotronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ninbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UNI-T
Model Number UT533
Measuring Current Range 60mA/600mA
Measuring Voltage Range 60mV/600mV/6V/60V/600V/1000V
Measuring Resistance Range 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ
Measuring Capacitance Range 10nF/100nF/1μF/10μF/100μF
Measuring Inductance Range /
Operating Temperature 0~40
Dimensions 96.7mm X 202.8mm X46 mm
Product Overviews



Product image

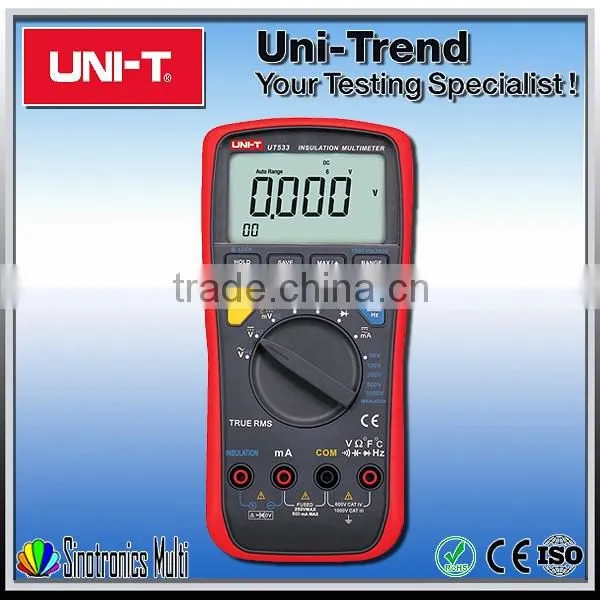

 best Insulation Resistance Multimeters UNI-T UT533

Product Description

UT530 insulation multimeter, set full function digital million meter and digital insulation tester is one of the true RMS multimeter, powered by batteries, true effective value, data storage of 99 group, the accuracy of 0.09%, the biggest display 6000.

Suitable for all kinds of precision tools (cables, motors, transformers) test.

Product parameters



Specifications Range Best Accuracy
Model UT533
Insulation Resistance(Ω) Test Voltage 50V/100V/500V/1000V/2500V 0%~10%
50V 0.1MΩ~50.0MΩ ±(3%+5)
100V 0.1MΩ~100.0MΩ ±(3%+5)
250V 0.2MΩ~99.9MΩ ±(3%+5)
100MΩ~250MΩ ±(3%+5)
500V 0.5MΩ~99.9MΩ ±(3%+5)
100MΩ~500MΩ ±(3%+5)
1000V 4.0MΩ~99.9MΩ ±(3%+5)
100MΩ~999MΩ ±(3%+5)
1.00GΩ~2.00GΩ ±(5%+5)
Short-Circuit Current <2mA √
Multimeter Specifications
DC Voltage (V) 60mV/600mV/6V/60V/600V/1000V ±(0.09%+6)
AC Voltage(50Hz~1KHz) 6V/60V/600V/1000V ±(1%+3)
DC Current (A) 60mA/600mA ±(1.0%+2)
AC Current(50Hz~1KHz) 60mA/600mA ±(1.5%+2)
Resistance (Ω) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ ±(0.9%+2)
Capacitance (F) 10nF/100nF/1μF/10μF/100μF ±(3%+5)
Frequency (Hz) 60Hz/600Hz/6KHz/60KHz/600KHz/1MHz ±(0.1%+3)
Temperature (°C) -40°C ~ 537°C ±(1%+10)
Temperature (°F) -40°F~998°F ±(1%+18)
Features
Display Count 6000
Auto Range √
True RMS √
Diode √
Auto Power Off √
Continuity Buzzer √
Low Battery Indication √
Data Hold √
MAX/MIN √
Data Logging 99
LCD Backlight √
Full Icon Display √
General Characteristic
Power 1.5V Alkaline Batteries(LR6)×6
LCD Size 81mm X 46mm
Product Color Red and Grey
Product Net Weight 505g
Product Size 96.7mm X 202.8mm X46 mm
Standard Accessories Batterise, Test Lead, Alligator Clip, Point Contact Temperature Probe, Carrying Bag
Standard Individual Packing Gift Box,English Manual
Standard Quantity Per Carton 20 pcs
Standard Carton Measurement 460mm X 310mm X 368mm(0.053 CBM Per Standard Carton)
Standard Carton Gross Weight 12Kg



MOQ

We do not have MOQ, but we have MOV (Min order value) which is USD3000. If your order quantity is big enough, we will give you some discount.
