Home > Instruments & Meters > Electronic Instrument > Clamp Meter > Best Digital Multimeter UNI-T UT603

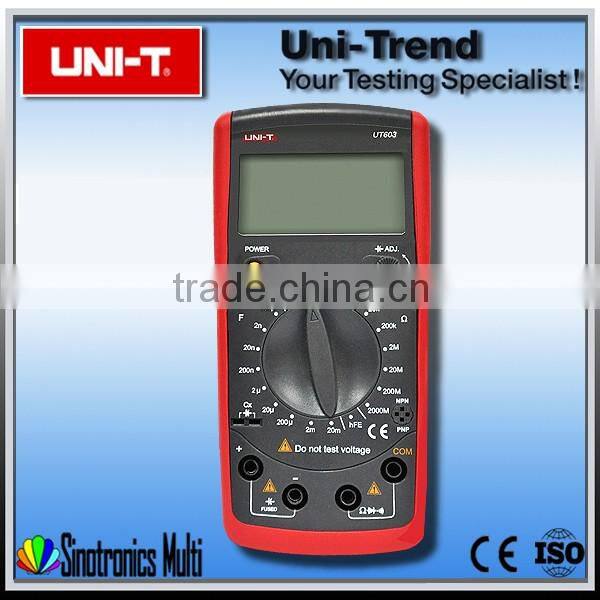

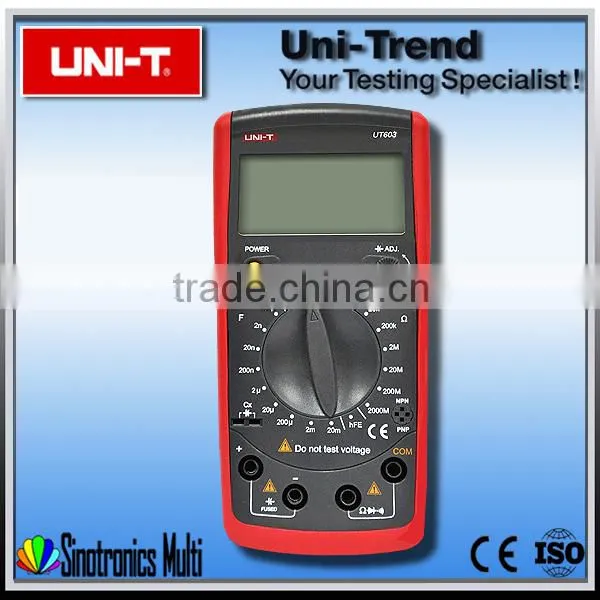

Best Digital Multimeter UNI-T UT603

Name: Best Digital Multimeter UNI-T UT603
Brand: UNI-T
SKU: 107484701
Availability: InStock

Best Digital Multimeter UNI-T UT603 thumbnail-1

Best Digital Multimeter UNI-T UT603 thumbnail-2

Best Digital Multimeter UNI-T UT603 thumbnail-3

Best Digital Multimeter UNI-T UT603 thumbnail-4

Best Digital Multimeter UNI-T UT603 photo-1

Best Digital Multimeter UNI-T UT603 photo-2

Best Digital Multimeter UNI-T UT603 photo-3

Best Digital Multimeter UNI-T UT603 photo-4

US$ 17.3 - 18.2 MOQ: 40 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT603

Contact Supplier Request Quote Chat Now

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT603

Display Type Analog and Digital

Measuring Current Range none

Measuring Voltage Range none

Measuring Resistance Range 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ

Measuring Capacitance Range 2nF/20nF/200nF/2uF/20uF/200uF/600uF

Measuring Inductance Range 2mH/20mH/200mH/2H/20H

Operating Temperature Normal atmospheric temperature

Dimensions 172mm X 83mm X38 mm

Weight 310g

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product image

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product data

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

UT600 series case of resistance capacitance inductance meter is a kind of stable, safe, reliable, high accuracy of the hand of the 3 1/2 bit manual switching range digital meter. Can be used to measure the amplification factor of the transistor, diode forward voltage drop and the function of the circuit. The UT601- capacitance measuring range is wide and the accuracy is high, and the measurement range is from 0.1pF to 20mF, and the UT602 has data retention function.
It is suitable for the electronic laboratory, production line, maintenance point and teaching and other aspects of resistance, capacitance, inductance test, is the ideal tool for the maintenance of the user.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product attribute

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications	Range	Best Accuracy
Model		UT603
Resistance (Ω)	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ	±(0.8%+1)
Capacitance (C)	2nF/20nF/200nF/2uF/20uF/200uF/600uF	±(1%+5)
Inductance (H)	2mH/20mH/200mH/2H/20H	±(2%+8)
Features
Display Count		1999
Manual Range		√
Diode		√
Transistor		√
Continuity Buzzer		√
Low Battery Indication		√
General Characteristic
Power	9V Battery(6F22)
LCD Size	61mm X 32 mm
Product Color	Red and Grey
Product Net Weight	312g
Product Size	172mm X 83mm X38 mm

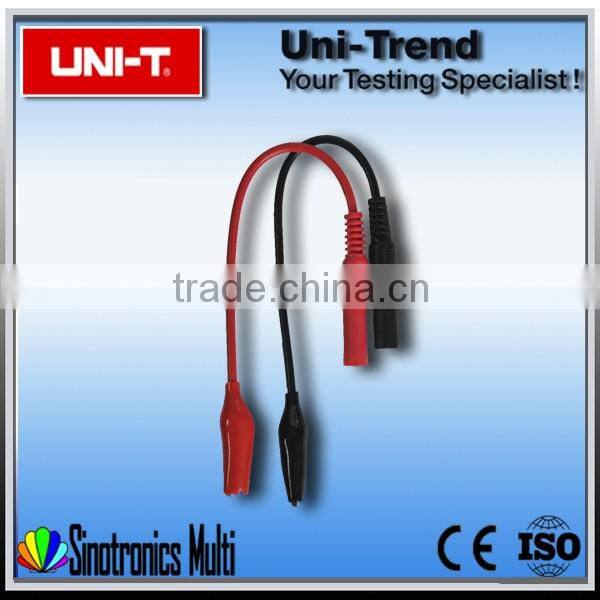

Standard Accessories	Battery, Test Clip,Holster
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	598mm X 418mm X 340mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	21Kg

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
