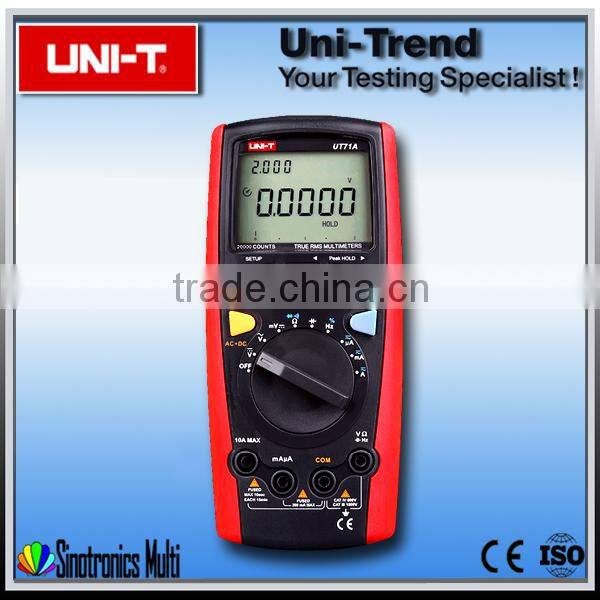

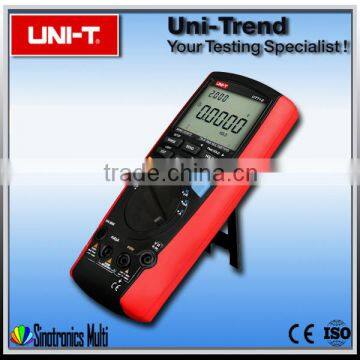

Best Digital multimeter UNI-T UT71B
- 5000 Box / Boxes per Month
- shanghai ningbo
- Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti channel Monitoring Module Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- 48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- Din Rail Ac Power Meter AMC16Z-FAK48 Multi-circuit Energy Meter One RS485 Communication 48 Branch Full Electric Parameter
Product Details
Place of Origin: | Guangdong, China | Brand Name: | uni-t | Model Number: | UT71B |
Measuring Current Range: | 200μA/2000μA/20mA/200mA/10A | Measuring Voltage Range: | 200mV/2V/20V/200V/1000V | Measuring Resistance Range: | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ |
Measuring Capacitance Range: | 20nF/200nF/2μF/20μF/200μF/2mF/20mF | Measuring Inductance Range: | / | Operating Temperature: | Normal atmospheric temperature |
Dimensions: | 200mm X 93mm X 40 mm |
Product Description
UT71B product is 4 count 19999 1/2 automatic range is really effective value of digital million with a table, with a full range of analog display, full range overload protection and unique design, so that the performance is more superior to the high accuracy of electrical measuring instrument.
Can be applied to: smelting, electronics, communications, manufacturing, petroleum, national defense, power, chemical and other industries and major technical secondary school. Also used to solve complex problems in electronic, factory automation, power distribution and mechanical and electrical equipment.
Specifications | Range | Best Accuracy |
Model | UT71B | |
DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.05%+5) |
AC Voltage (V) | 2V/20V/200V/1000V | ±(0.6%+40) |
DC Current (A) | 200μA/2000μA/20mA/200mA/10A | ± (0.15%+20) |
AC Current (A) | 200μA/2000μA/20mA/200mA/10A | ± (0.8%+15) |
Resistance (Ω) | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±(0.4%+20) |
Capacitance (F) | 20nF/200nF/2μF/20μF/200μF/2mF/20mF | ±(1.2%+20) |
Frequency (Hz) | 20Hz-200MHz | ±(0.1%+15) |
Temperature (°C) | -40°C ~ 1000°C | ±(1%+30) |
Temperature (°F) | -40°F~1832°F | ±(1.5%+50) |
Features | ||
Display Count | 19999 | |
Auto Range | √ | |
True RMS | √ | |
Bandwidth (Hz) | 100KHz | √ |
Duty Cycle | 10% ~ 90% | ±(1%+30) |
Diode | √ | |
Auto Power Off | √ | |
Continuity Buzzer | √ | |
Low Battery Indication | √ | |
Data Hold | √ | |
Relative Mode | √ | |
MAX/MIN | √ | |
Data Logging | 100 | |
USB Interface | √ | |
Double Backlight | √ | |
Analogue Bar Graph | √ | |
Full Icon Display | √ | |
Setup | √ | |
Input Impedance for DCV | DC 200mV: Around 2.5GΩ,All Other Range: 10MΩ | √ |
4 - 20mA Loop | 0~100% | ±(1%+50) |
Fused 10 A | √ | |
Current Measurement Alarm | √ | |
Voltage & Current AC+DC Measurement | √ | |
General Characteristic | ||
Power | 9V Battery(6F22) | |
LCD Size | 73mm X 50 mm | |
Product Color | Red and Grey | |
Product Net Weight | 384g | |
Product Size | 200mm X 93mm X 40 mm | |
Standard Accessories | Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CD,Carrying Bag, Point Contact Temperature Probe | |
Standard Individual Packing | Gift Box, English Manual | |
Standard Quantity Per Carton | 20 PCs | |
Standard Carton Measurement | 530mm X 360mm X 385mm (0.073 CBM Per Standard Carton) | |
Standard Carton Gross Weight | 22 Kg |
