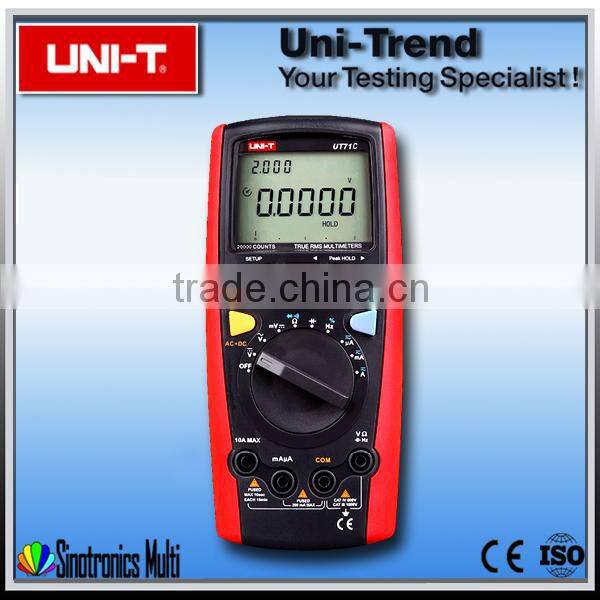

Best Digital Multimeter UNI-T UT71C
US$ 79.4 - 90.9
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
uni-t
Model Number:
UT71C
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Digital Multimeter UNI-T UT71DUS$ 88.9 - 101.8MOQ: 20 Pieces -
Best Digital Multimeter UNI-T UT71EUS$ 104.8 - 120MOQ: 20 Pieces
-
Best Digital Multimeter UNI-T UT139BUS$ 21.7 - 24.9MOQ: 20 Pieces
-
Best Digital Multimeter UNI-T UT139AUS$ 19.2 - 22MOQ: 20 Pieces
-
Best Digital Multimeter UNI-T UT171AUS$ 109 - 124.9MOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
uni-t
Model Number
UT71C
Measuring Current Range
400μA/4000μA/40mA/400mA/10A
Measuring Voltage Range
400mV/4V/40V/400V/1000V
Measuring Resistance Range
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Measuring Capacitance Range
40nF/400nF/4μF/40μF/400μF/4mF/40mF
Measuring Inductance Range
/
Operating Temperature
0~40
Dimensions
200mm X 93mm X 40 mm
Product image
Product Description
UT71C is a 4 count 39999 3/4 automatic range is really effective value of digital million with a table, with a full range of analog display, full range overload protection and unique design, so that the performance is more superior to the high accuracy of electrical measuring instrument.
Can be applied to: smelting, electronics, communications, manufacturing, petroleum, national defense, power, chemical and other industries and major technical secondary school. Also used to solve complex problems in electronic, factory automation, power distribution and mechanical and electrical equipment.
Product parameters
| Specifications | Range | Best Accuracy |
| Model | UT71C | |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.025%+5) |
| AC Voltage (V) | 4V/40V/400V/1000V | ±(0.4%+30) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/10A | ± (0.1%+15) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/10A | ± (0.7%+15) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(0.3%+8) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(1%+20) |
| Frequency (Hz) | 40Hz-400MHz | ±(0.01%+8) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(1%+30) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+50) |
| Features | ||
| Display Count | 39999 | |
| Auto Range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 100KHz | √ |
| Duty Cycle | 10% ~ 90% | ±(1%+30) |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| Data Logging | 100 | |
| USB Interface | √ | |
| Double Backlight | √ | |
| Analogue Bar Graph | √ | |
| Full Icon Display | √ | |
| Setup | √ | |
| Input Impedance for DCV | DC 400mV: Around 2.5GΩ,All Other Range: 10MΩ | √ |
| 4 - 20mA Loop | 0~100% | ±(1%+50) |
| Fused 10 A | √ | |
| Current Measurement Alarm | √ | |
| Voltage & Current AC+DC Measurement | √ | |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 73mm X 50 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 384g | |
| Product Size | 200mm X 93mm X 40 mm | |
| Standard Accessories | Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CDe,Carrying Bag, Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20 PCs | |
| Standard Carton Measurement | 530mm X 360mm X 385mm (0.073 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 22 Kg | |
